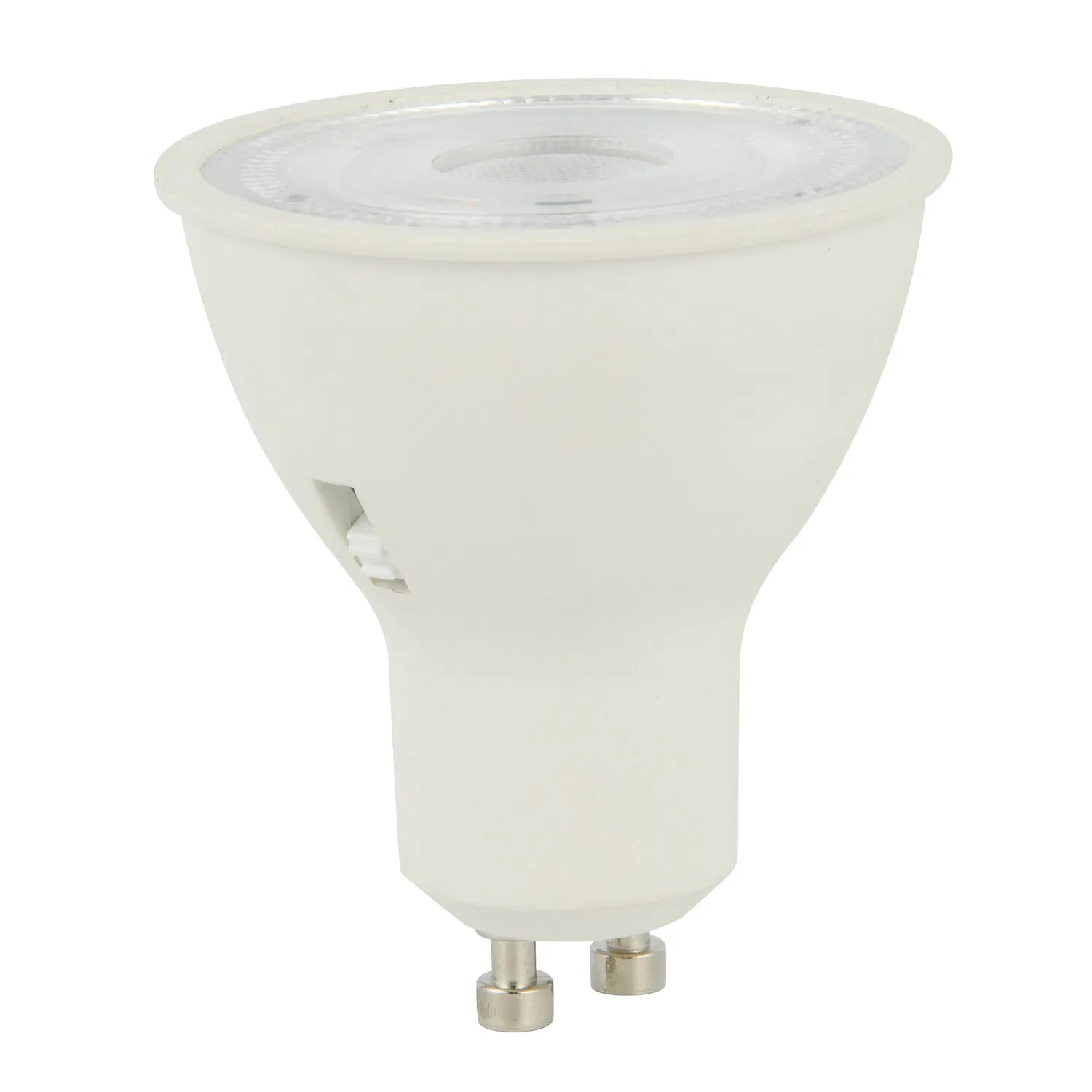

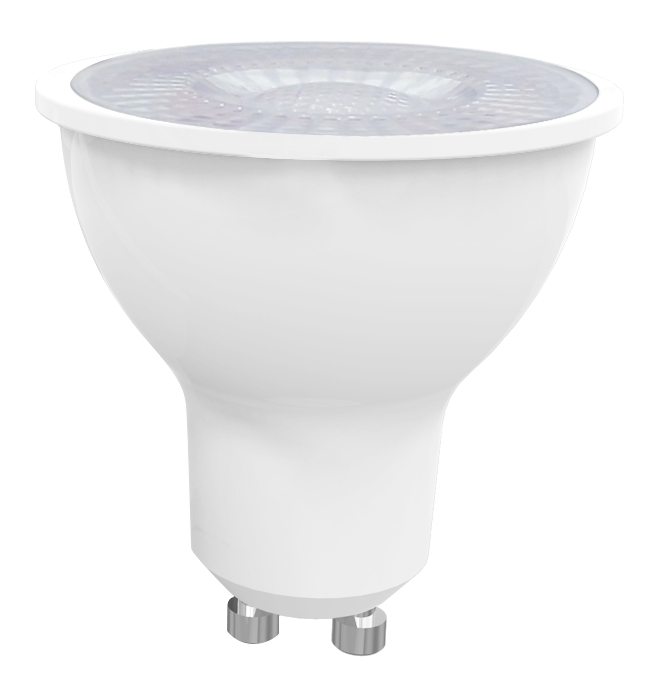

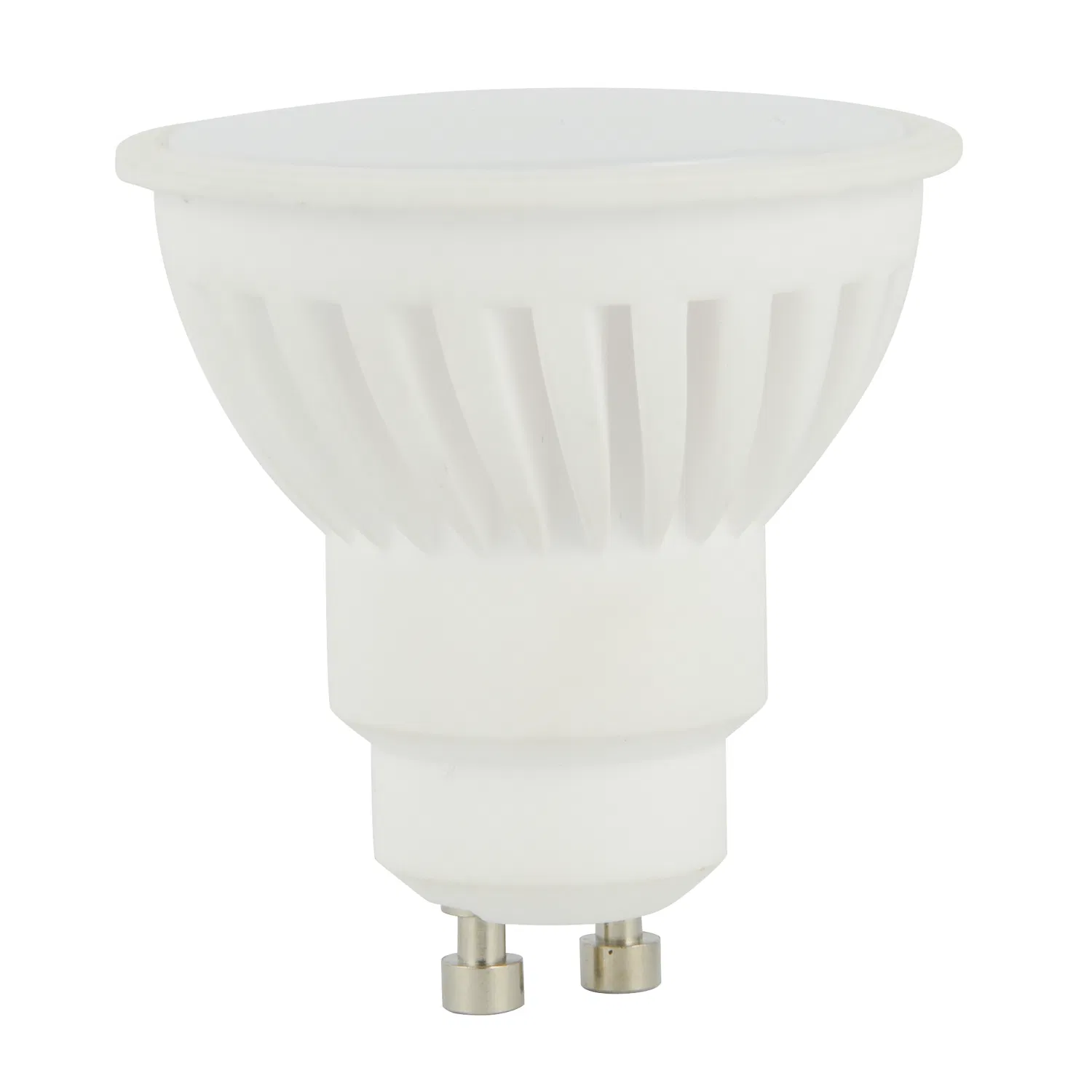

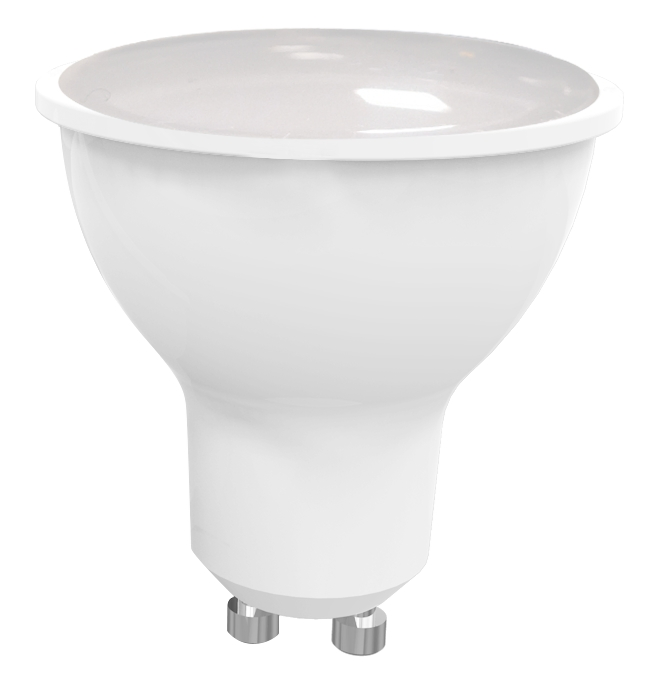

LED Bulb GU10 IC / Linear IC Driver 3CCT Available Ceramic

1 / 5

LED Bulb GU10 IC / Linear IC Driver 3CCT Available Ceramic

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

■ Basic Specifications

Model NO.

LED Bulb GU10

Power

1.5W-8.5W

LED Type

SMD 2835

Base Type

GU10

Usage

Spot Lighting, Landscape Accent

Warranty

2 Years

IP Rating

IP20

Input Voltage

220-240V

Trademark

OEM

Origin

China

Production

3,000,000 PCS/Month

HS Code

8539521000

■ Product Description & Features

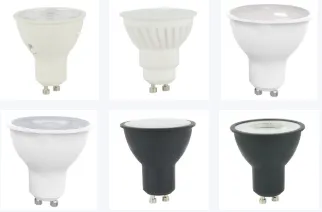

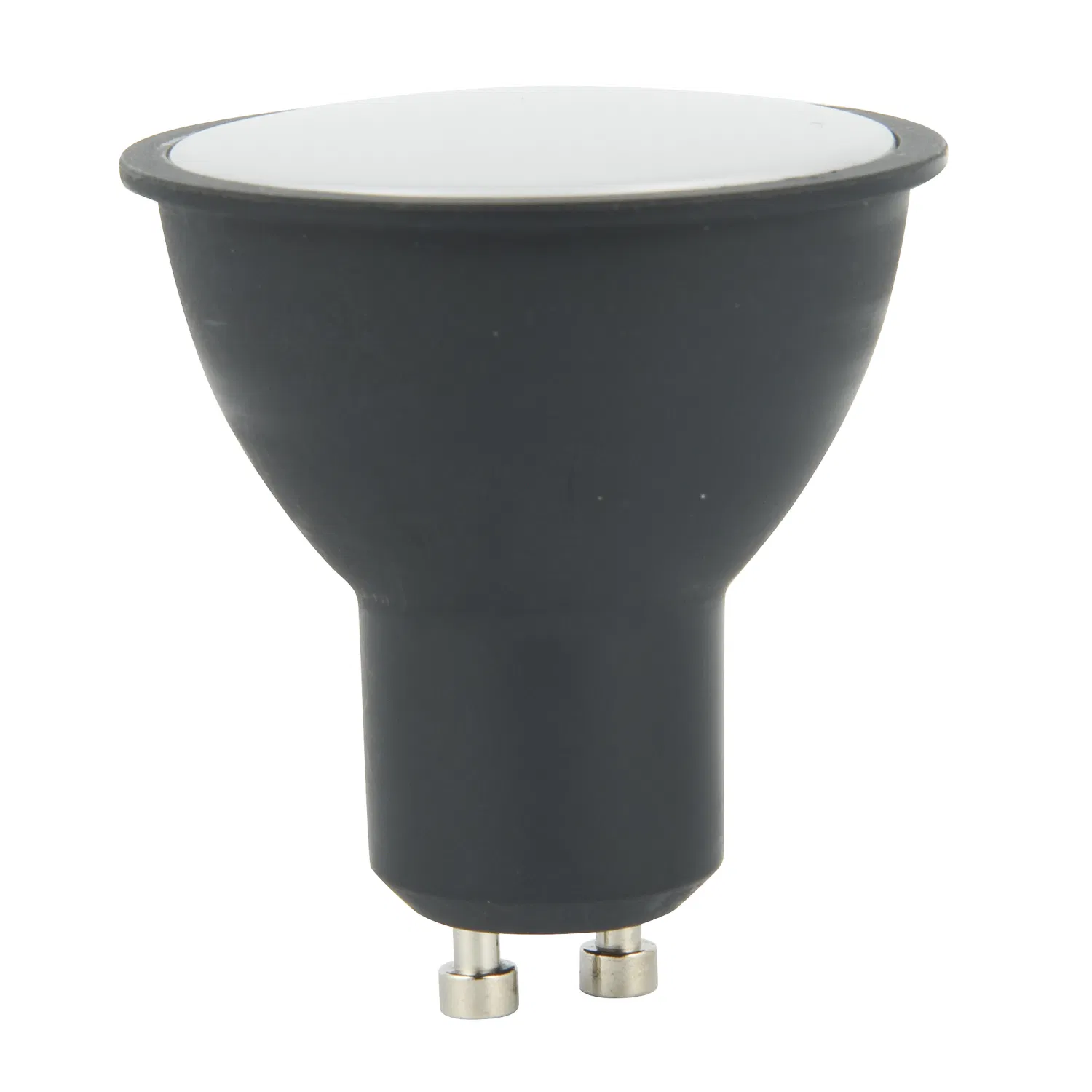

3CCT BY DIP Available | White & Black Housing Colors Available

✔

Material: Aluminum + Plastic Housing

✔

Voltage: AC 220-240V

✔

Driver: IC / Linear IC Options

✔

Color Rendering: CRI(Ra) ≥80

✔

Displacement Factor: DF ≥0.5

✔

Beam Angle: 38°±10° / 100°±10°

✔

Service Life: 15,000 Hours

✔

Operating Temp: -25°C to 40°C

✔

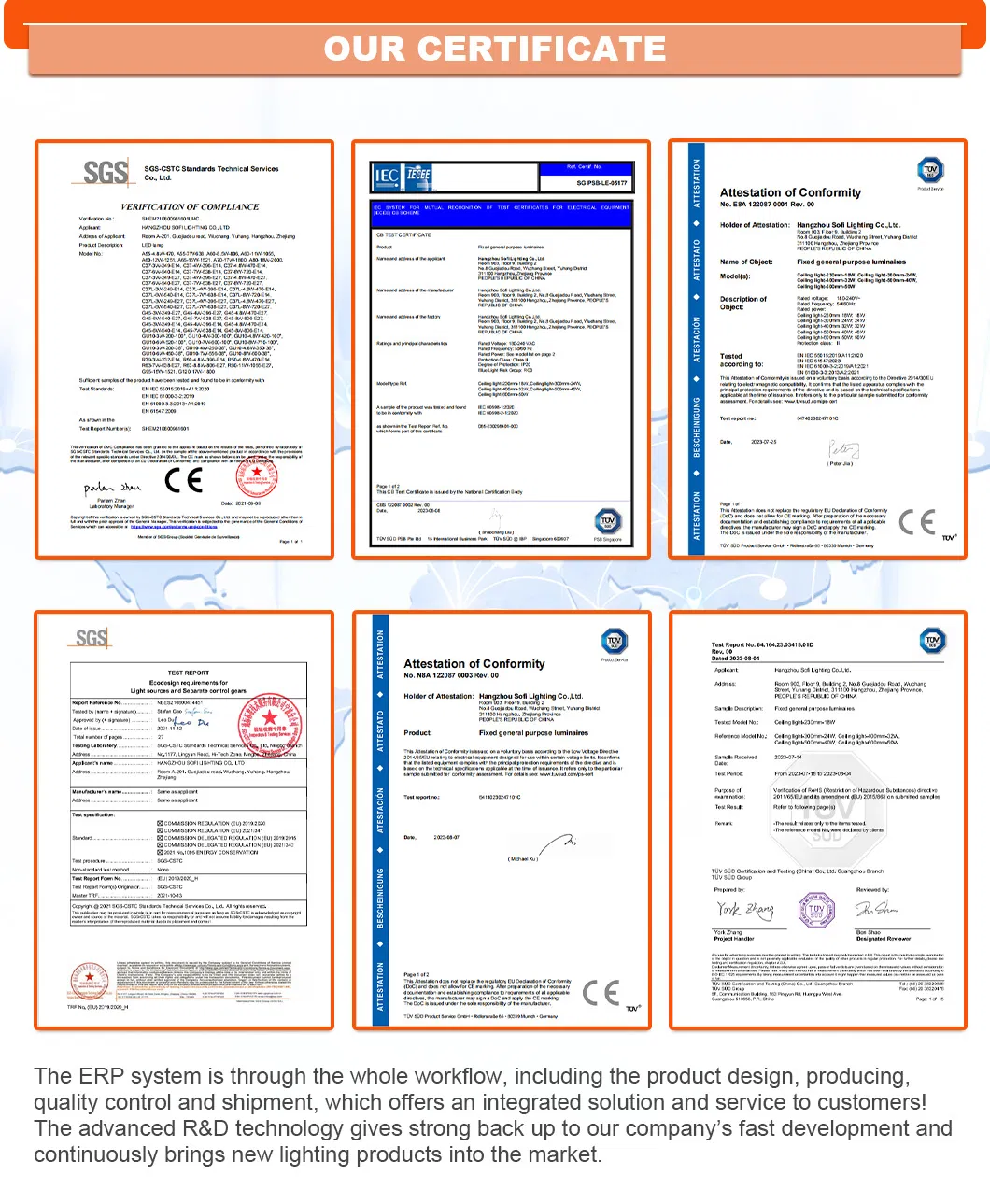

Certifications: CE / EMC / LVD / ERP2.0 / CB

✔

SDCM: < 6

■ Technical Parameters

Item No.	Watts	Voltage	Lumen	Ponmax	Class	Ra	DF	Beam Angle	Lifetime	Base	Size(mm)
SF-GU10	1.5W	220-240V	120lm	2.70W	G	80	/	100°	15000H	GU10	50x56.5
SF-GU10	3W	220-240V	200lm	3.42W	G	80	/	100°	15000H	GU10	50x56.5
SF-GU10	4W	220-240V	300lm	4.32W	G	80	/	100°	15000H	GU10	50x56.5
SF-GU10	4.8W	220-240V	420lm	5.40W	F	80	/	100°	15000H	GU10	50x56.5
SF-GU10	6W	220-240V	520lm	6.30W	F	80	>0.5	100°	15000H	GU10	50x56.5
SF-GU10	7W	220-240V	600lm	7.02W	F	80	>0.5	100°	15000H	GU10	50x56.5
SF-GU10	8W	220-240V	710lm	8.01W	F	80	>0.5	100°	15000H	GU10	50x56.5
SF-GU10	8.5W	220-240V	800lm	8.82W	F	80	>0.5	100°	15000H	GU10	50x56.5
SF-GU10	3W	220-240V	200lm	4.25W	G	80	/	38°	15000H	GU10	50x53.5
SF-GU10	4W	220-240V	250lm	4.85W	G	80	/	38°	15000H	GU10	50x53.5
SF-GU10	4.8W	220-240V	350lm	6.06W	F	80	/	38°	15000H	GU10	50x53.5
SF-GU10	6W	220-240V	450lm	4.27W	F	80	>0.5	38°	15000H	GU10	50x53.5
SF-GU10	7W	220-240V	556lm	8.55W	F	80	>0.5	38°	15000H	GU10	50x53.5
SF-GU10	8W	220-240V	600lm	9.08W	F	80	>0.5	38°	15000H	GU10	50x53.5

■ Product Showcase

■ Frequently Asked Questions

What is the input voltage for these GU10 LED bulbs?

These bulbs operate on a standard voltage range of AC 220-240V, suitable for most residential and commercial power systems.

Do you offer adjustable color temperatures for this model?

Yes, we provide 3CCT adjustable versions via a DIP switch, allowing you to select different color temperatures in one unit.

What are the available beam angle options?

Depending on your lighting needs, we offer both a concentrated 38° beam for spot lighting and a wider 100° beam for general accent lighting.

How long is the warranty and expected lifetime?

The product comes with a 2-year warranty and has a rated operating lifetime of 15,000 hours.

Are these bulbs compatible with international standards?

Absolutely. Our GU10 bulbs comply with CE, EMC, LVD, ERP2.0, and CB certifications, ensuring high quality and safety.

What materials are used in the housing construction?

The bulbs are constructed with a combination of high-quality Aluminum and Plastic housing to ensure efficient heat dissipation and durability.
