Basic Specifications
Control Mode
DMX Signal Control
Light Source
504 X 1.5W-RGB & 280 5W White
Dimmer
0-100% Electronic Dimming
Beam Angle
RGB 120° / White 60°
Product Description

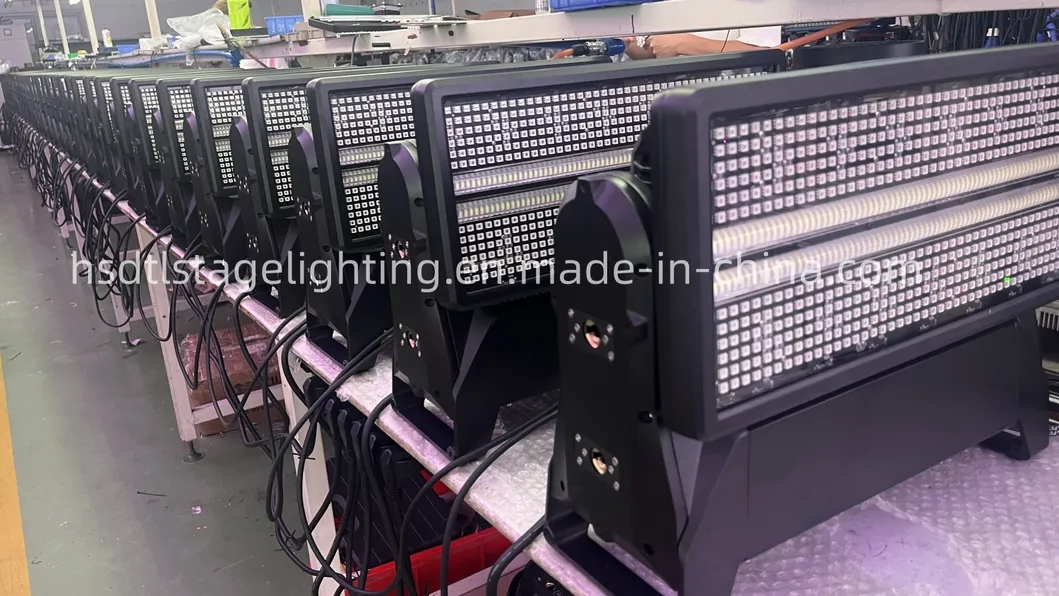

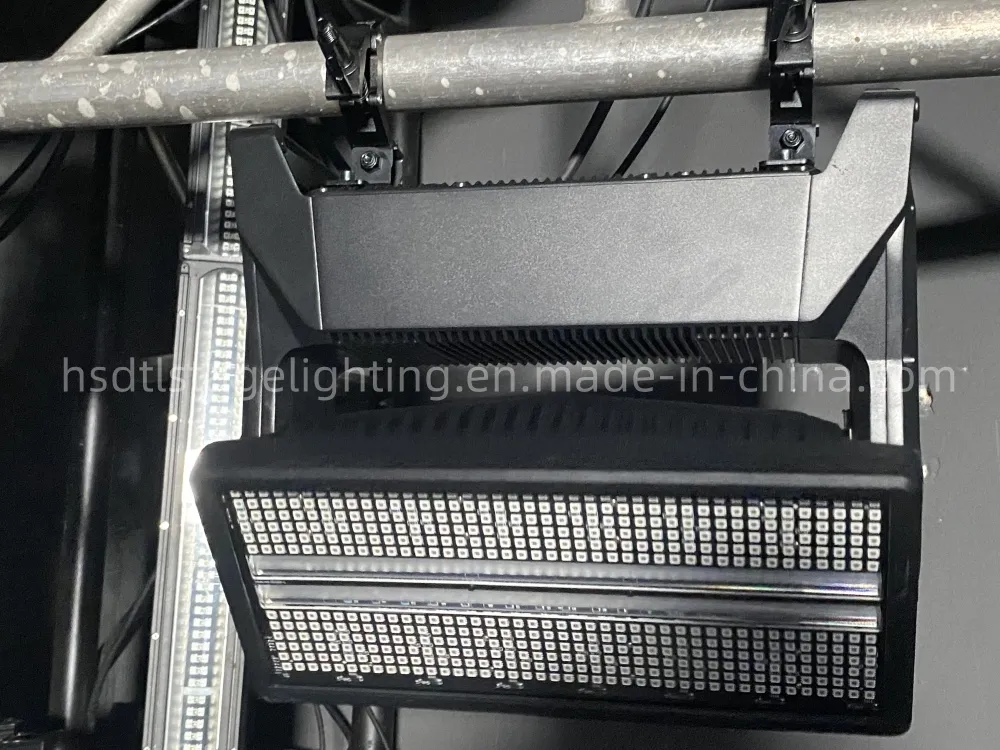

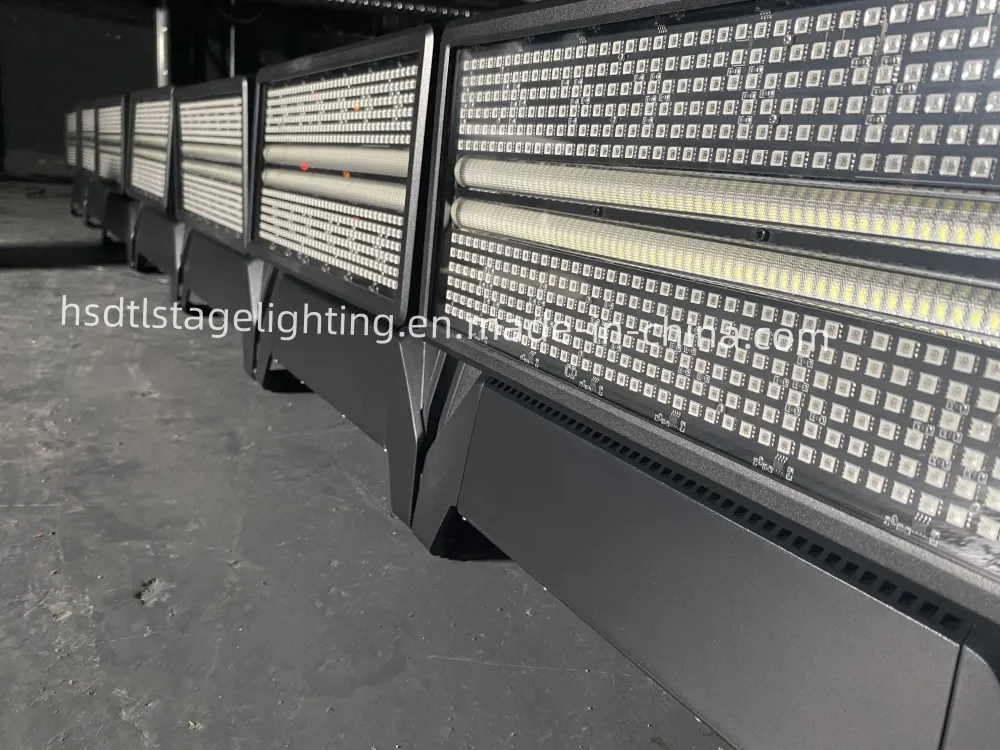

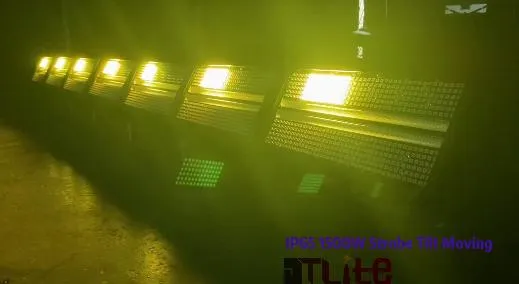

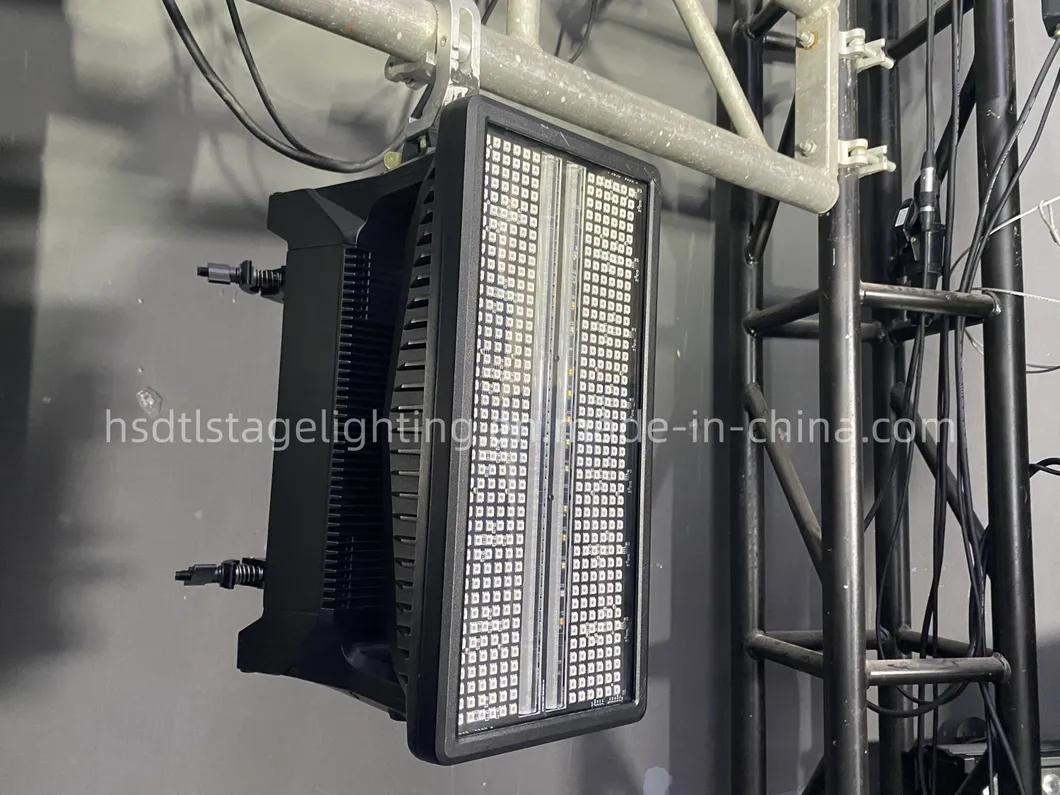

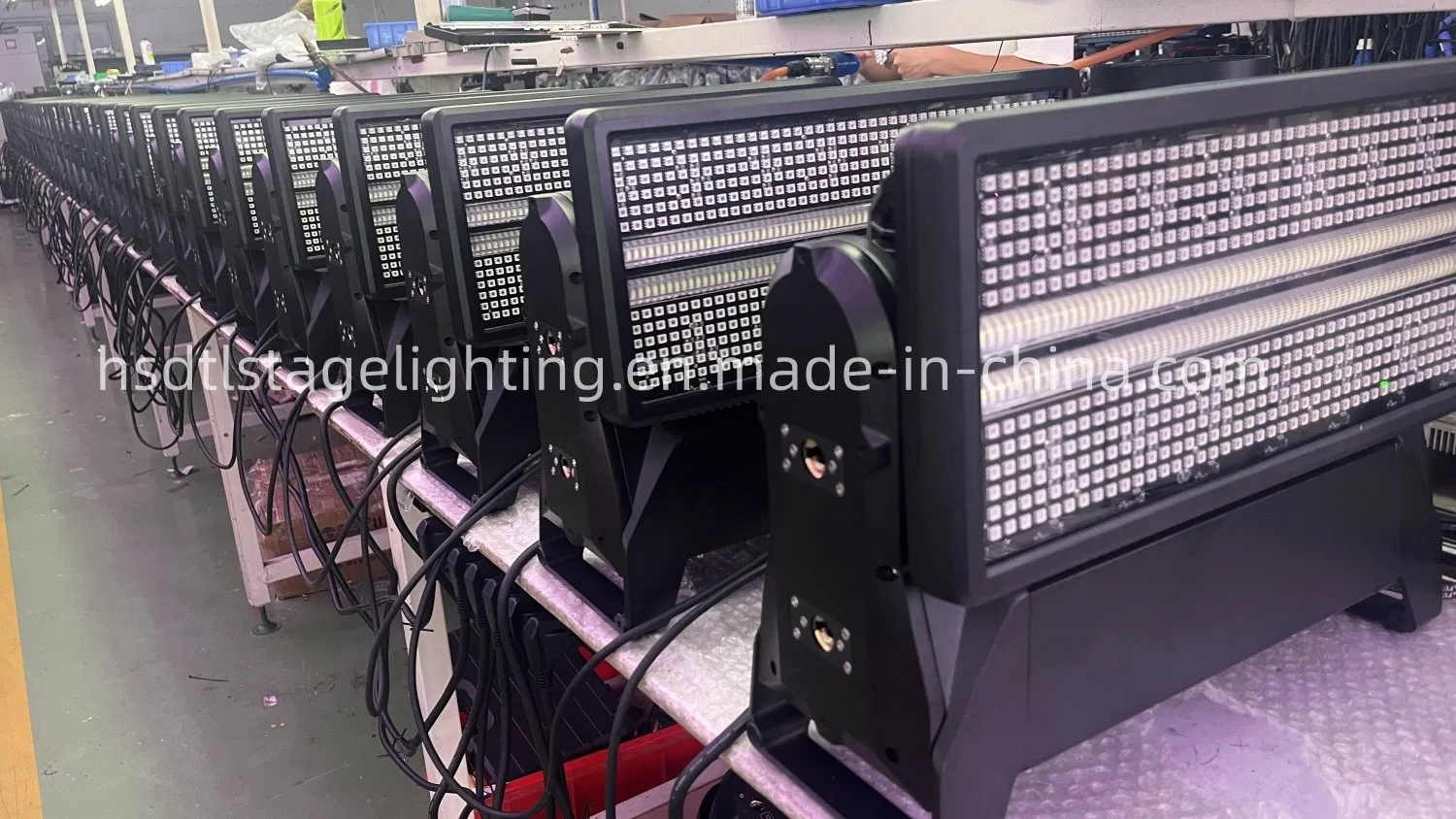

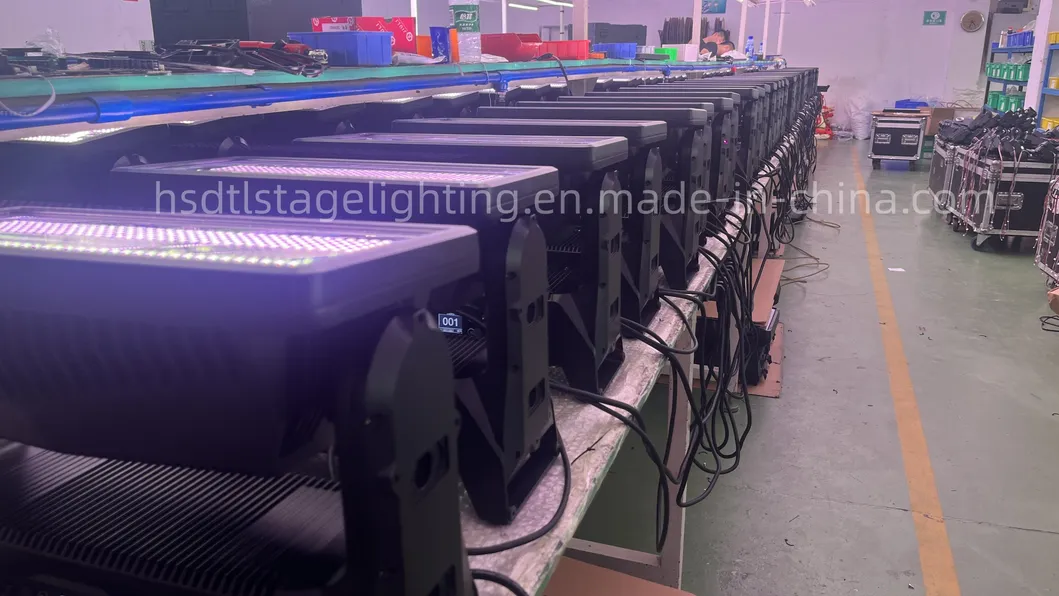

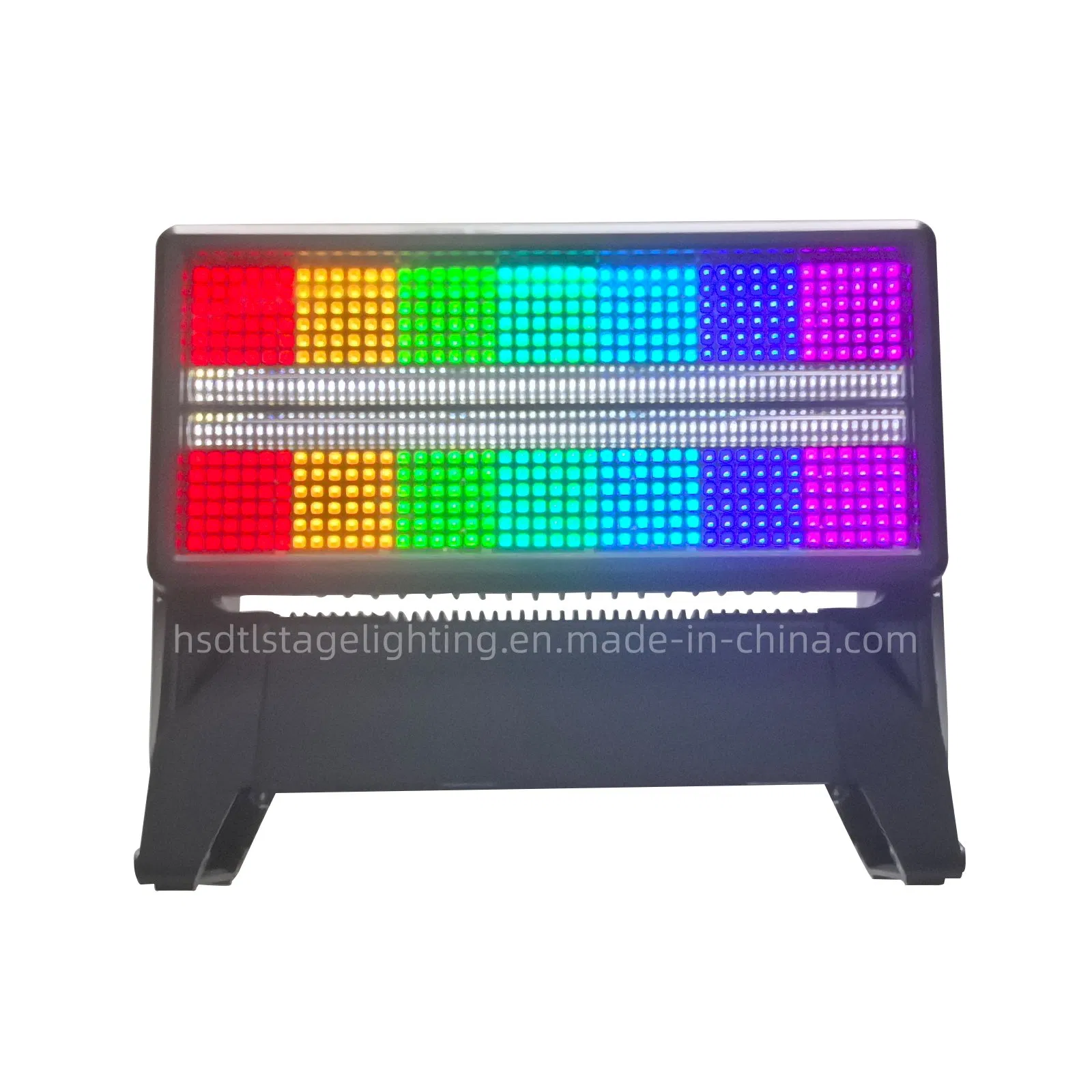

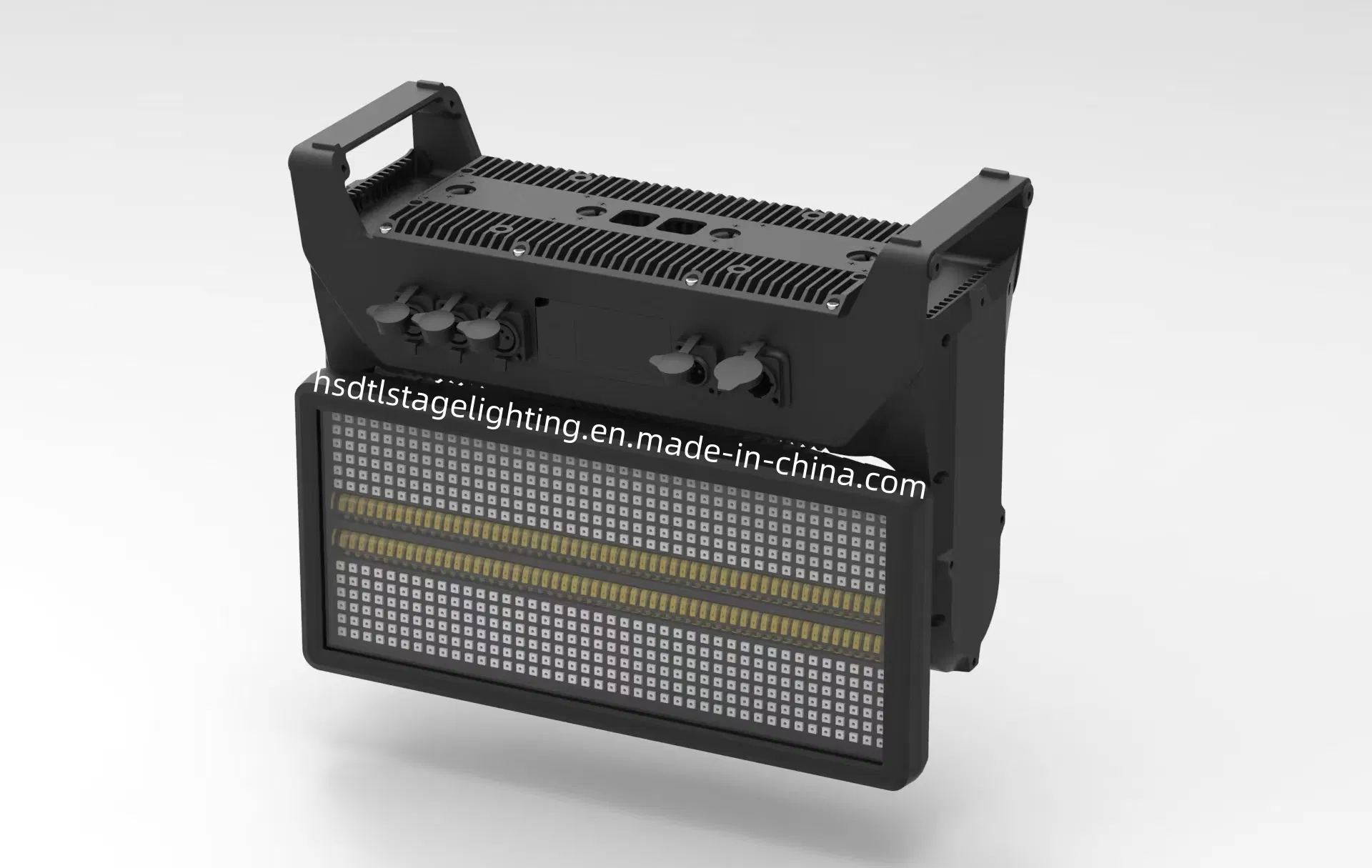

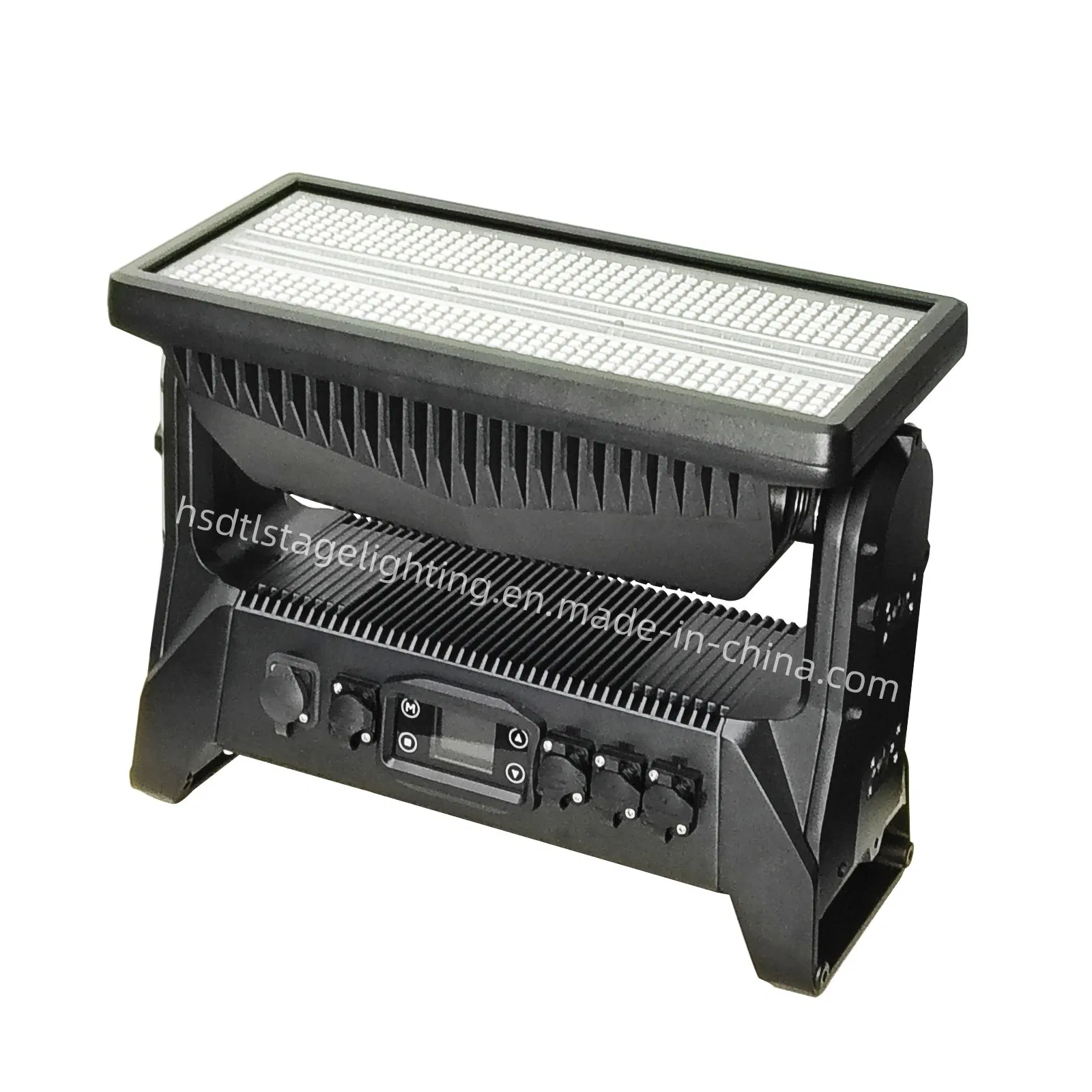

IP65 1500W Strobe Tilt LED Moving Head Light
- Light Source Configuration: 504 x 1.5W RGB + 280 x 5W White LEDs
- Precision Control: 14 RGB Plate controllable partitions and 28 White pixel segments
- Advanced Connectivity: Supports DMX512, RDM, W-DMX, Art-net, and sACN protocols
- Durability: IP66 rated bi-directional PWM programmable cooling fans and aluminum heat sink
- Dynamic Effects: 6 strobe modes, 4 dimming curves, and internal LED macro effects
- User Interface: Illuminated Graphics LCD or Touch Interactive Panel

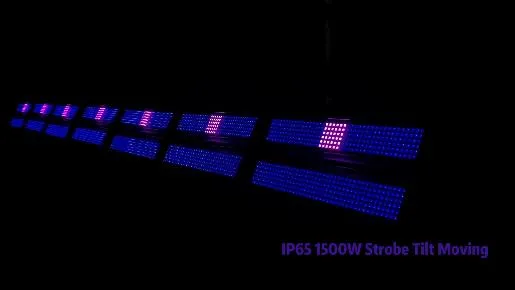

Visual Presentation
Frequently Asked Questions
What is the waterproof rating of this strobe moving head?
This light is IP65 rated, making it suitable for professional outdoor use and resistant to dust and rain.
Does this light support wireless DMX control?
Yes, it features 2.4 GHz W-DMX support (optional) and is compatible with DMX512 and RDM protocols.
What are the dimming and strobe capabilities?
It offers 0-100% electronic dimming with 4 selectable curves and 5 levels of speed, along with 6 unique strobe modes.
How does the cooling system operate?
The fixture utilizes an aluminum heat sink combined with an IP66 rated bi-directional PWM programmable smart air cooling system for optimal temperature control.
What power source is required for this 1500W light?
The light operates on a standard mains voltage of 100-240V AC at 50-60Hz with a peak power consumption of 1500W.
Are the LED segments individually controllable?
Yes, the fixture features 14 controllable RGB plate partitions and 28 white pixels for complex pixel mapping and macro effects.
