Basic Information
IP Rating
IP67 / IP65 / IP68

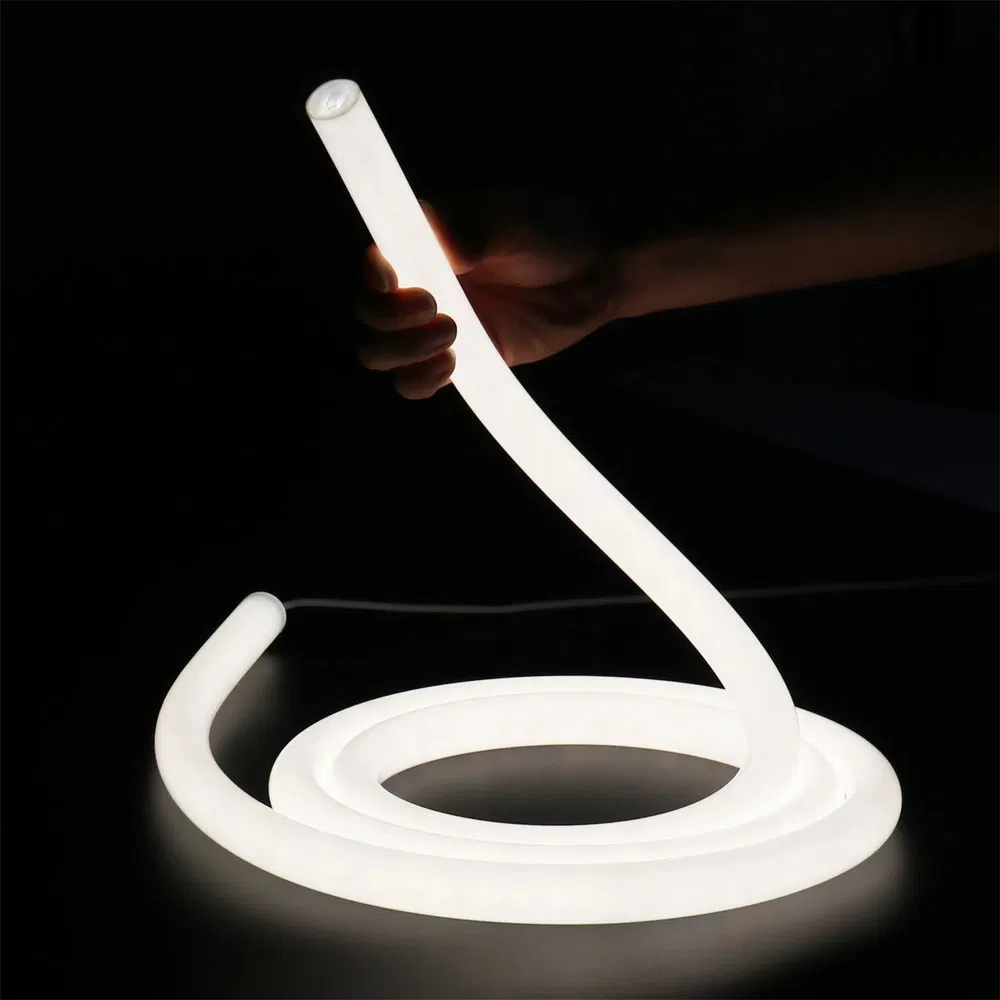

Product Description
💡Technical Parameters
- 360 Degree Viewing Angle
- DC12V / DC24V Working Voltage
- Colors: White, Warm White, Natural White, Red, Green, Blue, Yellow, RGB
- Waterproof Method: Surface Epoxy Plated, Silicone Pipe, Full Silicone Gel
- Working Temp: -20~+60 Celsius Degree
- Packing: 5m/roll

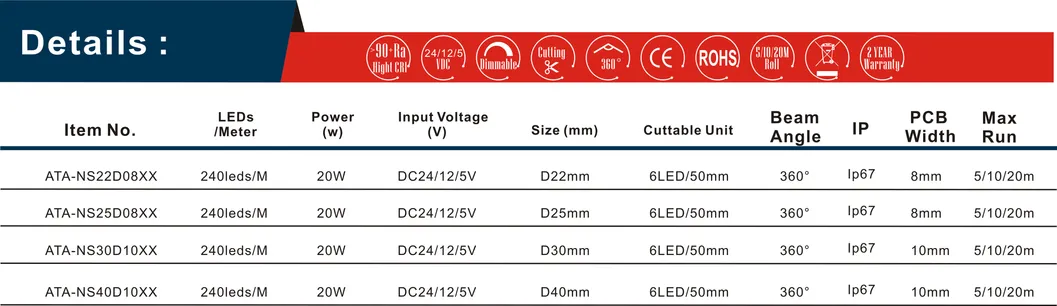

| LED QTY/M |
Max W/M |
Voltage |
CRI |
FPCB |
Size (mm) |
Color Temp |
Cut Size |
Item No. |
| 240 |
20W |
DC24V |
≥90 |
8mm |
D22 |
2700K-6500K |
50mm |
ATA-NS22D08240XX |
| 240 |
20W |
DC24V |
≥90 |
8mm |
D25 |
2700K-6500K |
50mm |
ATA-NS25D08240XX |
| 240 |
20W |
DC24V |
≥90 |
10mm |
D30 |
2700K-6500K |
50mm |
ATA-NS30D10240XX |

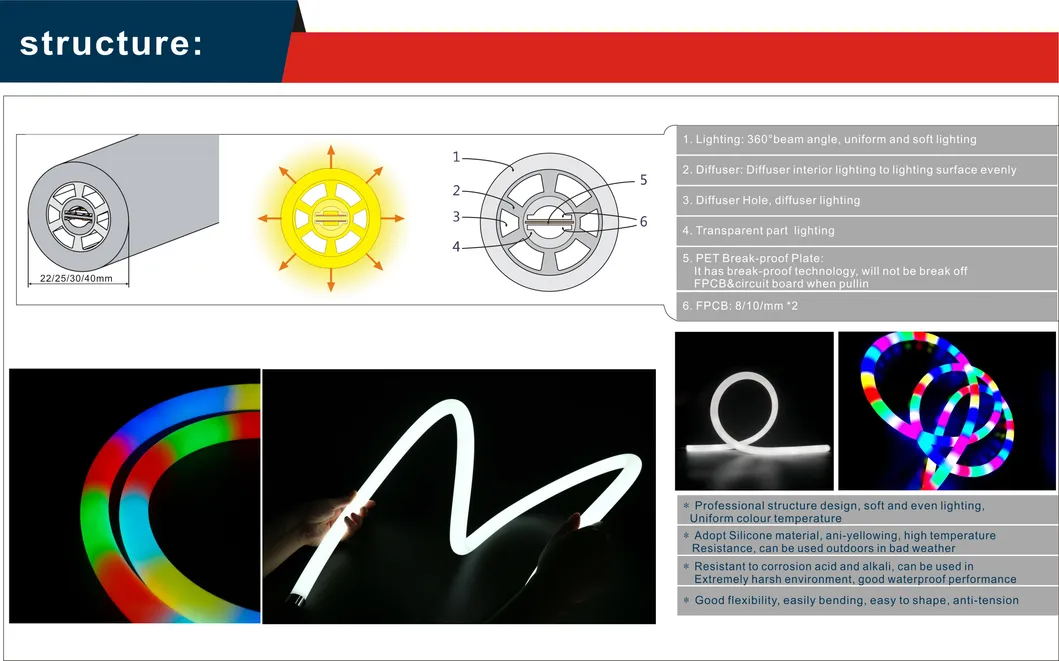

🏗️Product Structure

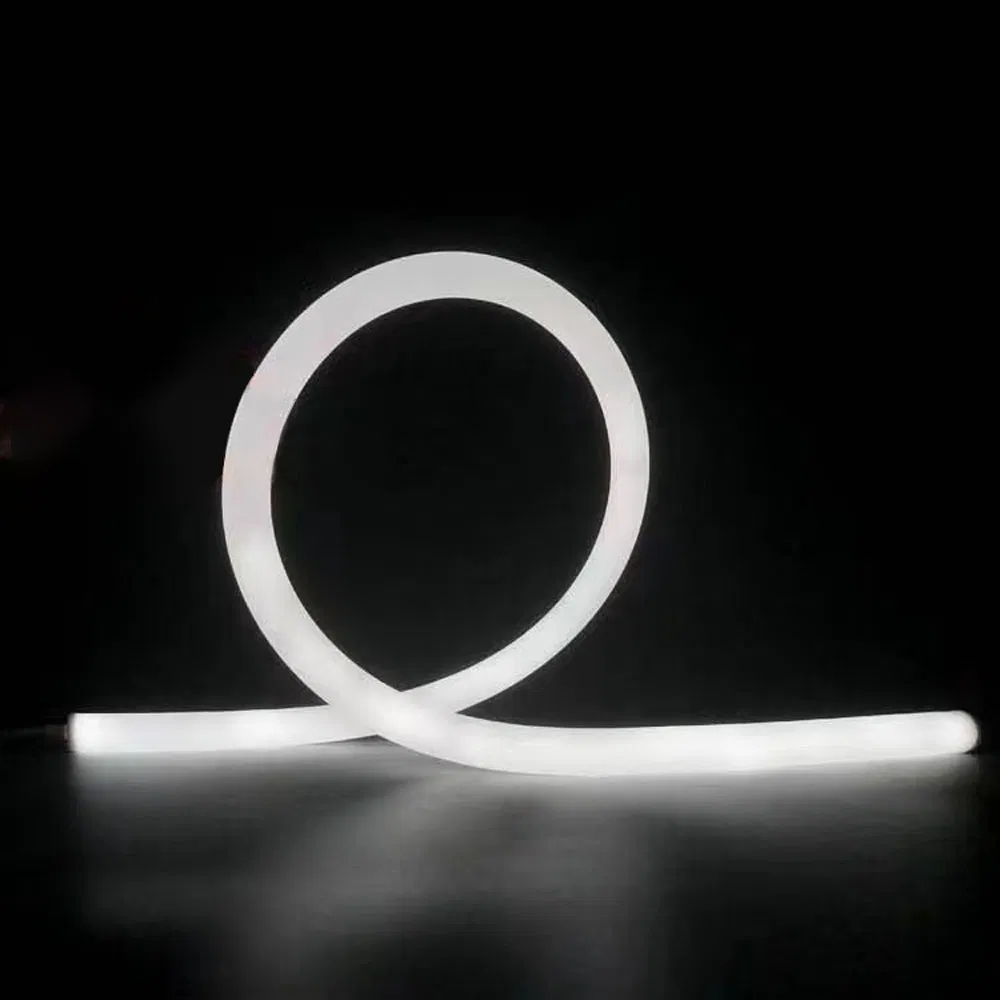

- 360° Beam angle for uniform and soft lighting
- Advanced Diffuser interior for even light distribution
- PET Break-proof Plate technology to protect FPCB when pulling
- High-grade Silicone material (Anti-yellowing, High temp resistance)
- Corrosion, acid, and alkali resistant

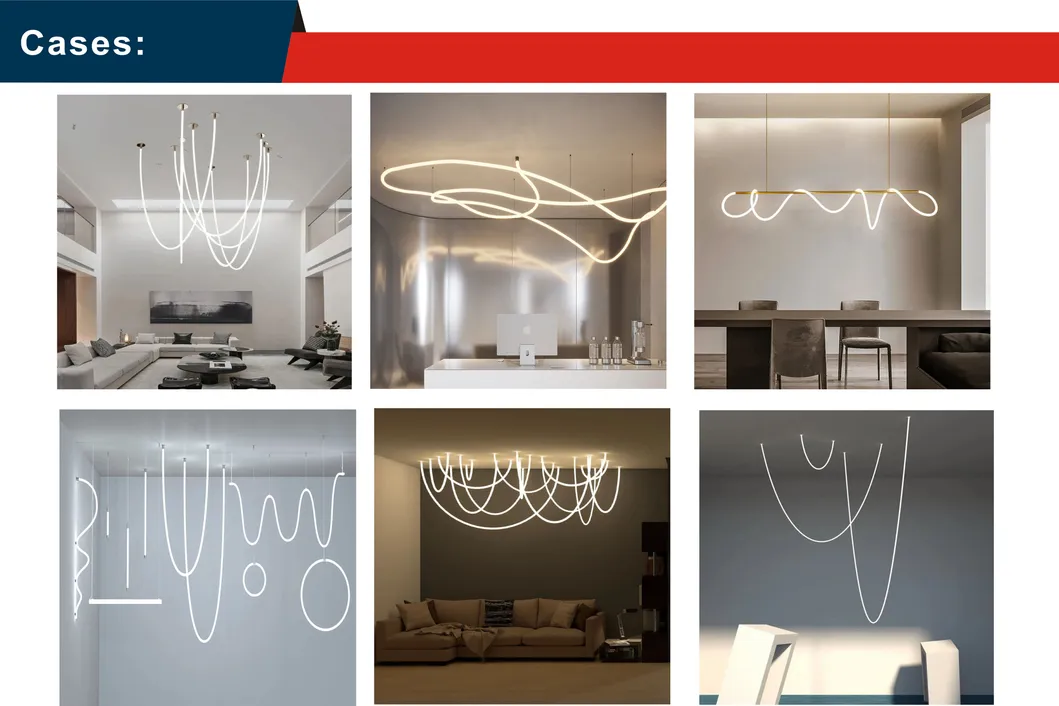

Applications & Installation
- Indoor and outdoor decoration lighting
- Advertisement and large scale backlights
- Landscape outlines and bridge edge lighting
- Architectural lighting for villas, hotels, and restaurants
- Path & building contour decorative lighting

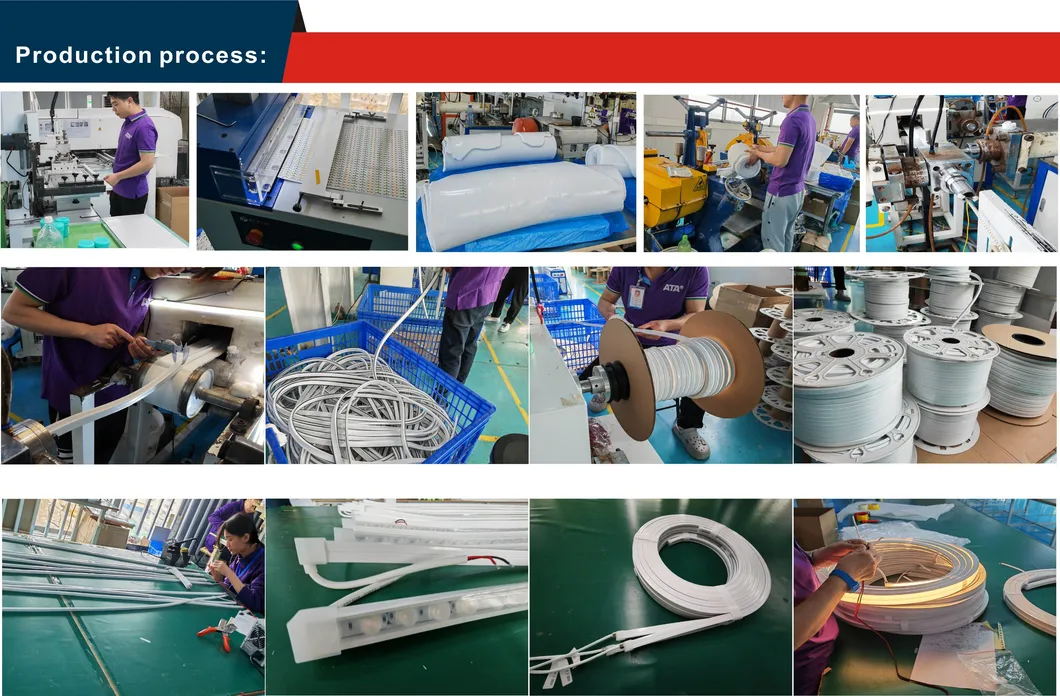

Factory & Production
Safety & Quality Control
⚠️Safety Information
1. Avoid mechanical stress on SMD light ribbon components.
2. Installation must comply with electrical safety standards by qualified personnel.
3. Parallel connection is highly recommended.
4. Ensure power supply is adequate for total load.
🛡️Quality Control
- Stability TEST: 100% lamps aging test for 48 hours
- Lighting TEST: 100% inspection before packing
- Drop TEST: Ensuring box protection for every light
Frequently Asked Questions
What is the beam angle of this neon strip?
This product features a 360-degree beam angle, providing uniform and soft lighting from all directions.
Is the neon strip waterproof for outdoor use?
Yes, it is available with IP65, IP67, and IP68 ratings, making it suitable for both indoor and harsh outdoor environments.
What materials are used for the diffuser?
We use high-quality silicone material which is anti-yellowing, high-temperature resistant, and flexible.
What is the standard warranty period?
The product comes with a 2-year warranty ensuring quality and reliability.
Can the strip be cut to specific lengths?
Yes, the 240LEDs/m model typically has a cut size of 50mm (6 LEDs), allowing for flexible installation in narrow places.
What voltage does this light strip require?
It supports multiple DC input voltages including DC5V, DC12V, and DC24V to suit different power requirements.
