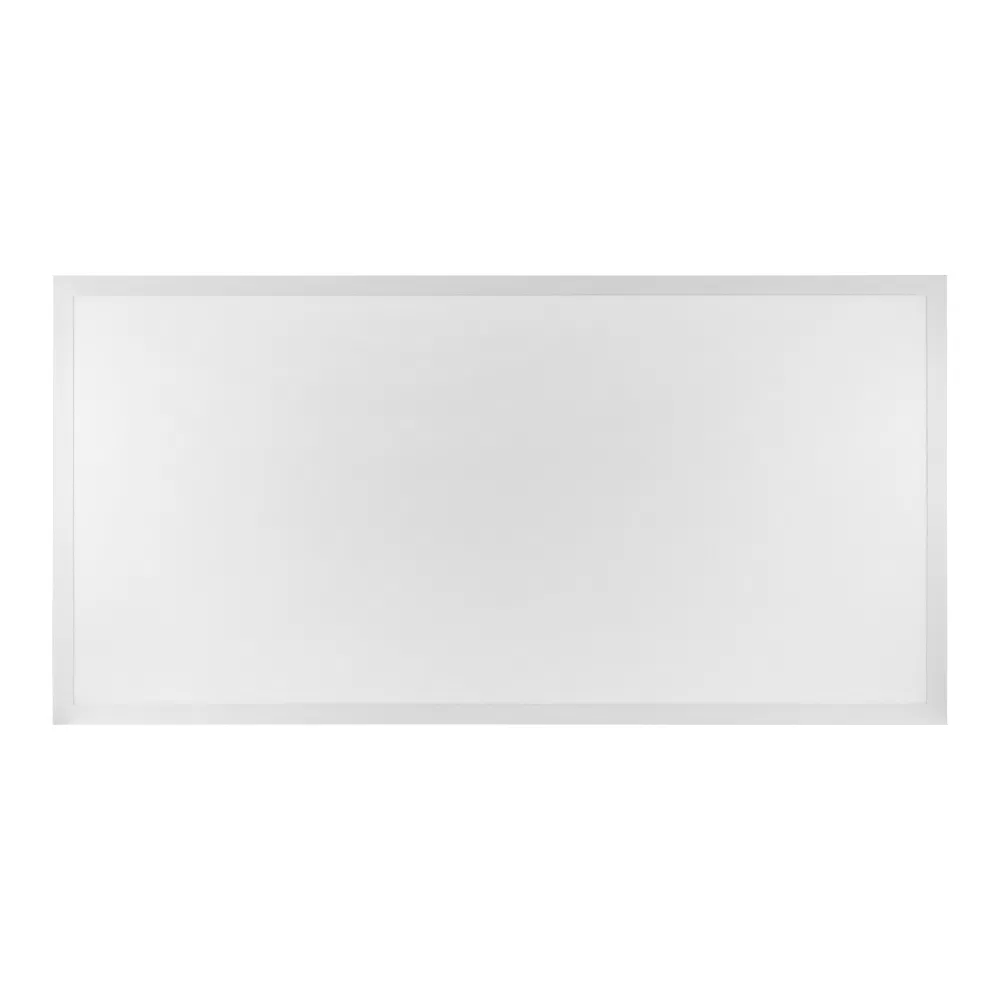

UL/Dlc Approved 100/130lpw 30W/40W/50W/60W/72W 2X2/1X4/2 X 4 LED Panel Light for Na Market

1 / 5

UL/Dlc Approved 100/130lpw 30W/40W/50W/60W/72W 2X2/1X4/2 X 4 LED Panel Light for Na Market

Customization:	Available
Light Source:	LED
Housing Material:	Acrylic, Aluminium

Send Inquiry

Product Description

Basic Specifications

Model NO.:us-P22f40Wx

Emitting Color:White

Dimmable:With Dimmable

Appearance:Square

Type:Ceiling

Base Material:Plastic

Certification:CE, RoHS, SAA

Voltage:120V

Beam Angle:120°

LED Type:SMD 2835

Luminous Flux:125lm/W

Power:20W/30W/35W/40W/50W/60W/72W/75W

Color Temp:3000K, 4000K, 5000K, 6000K

IP Rating:IP40

Trademark:ATA

Origin:Made in China

Product Overview

UL/Dlc Approved 100/130lpw LED Panel Light designed for the NA Market. This design is ideal for ceiling fixtures in various settings.

Perfect world-class LED technology
Makes it really crazy super bright
Competitive pricing for the same high-quality model
Suitable for both commercial and residential applications
Extremely easy to install

Key Advantages

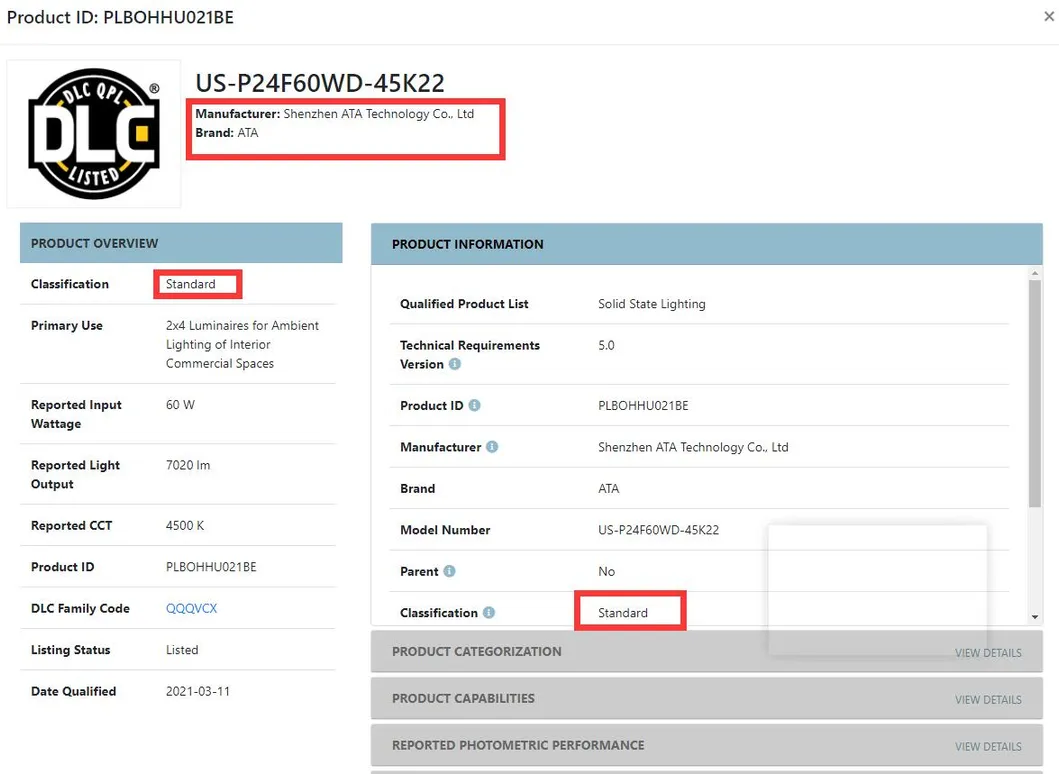

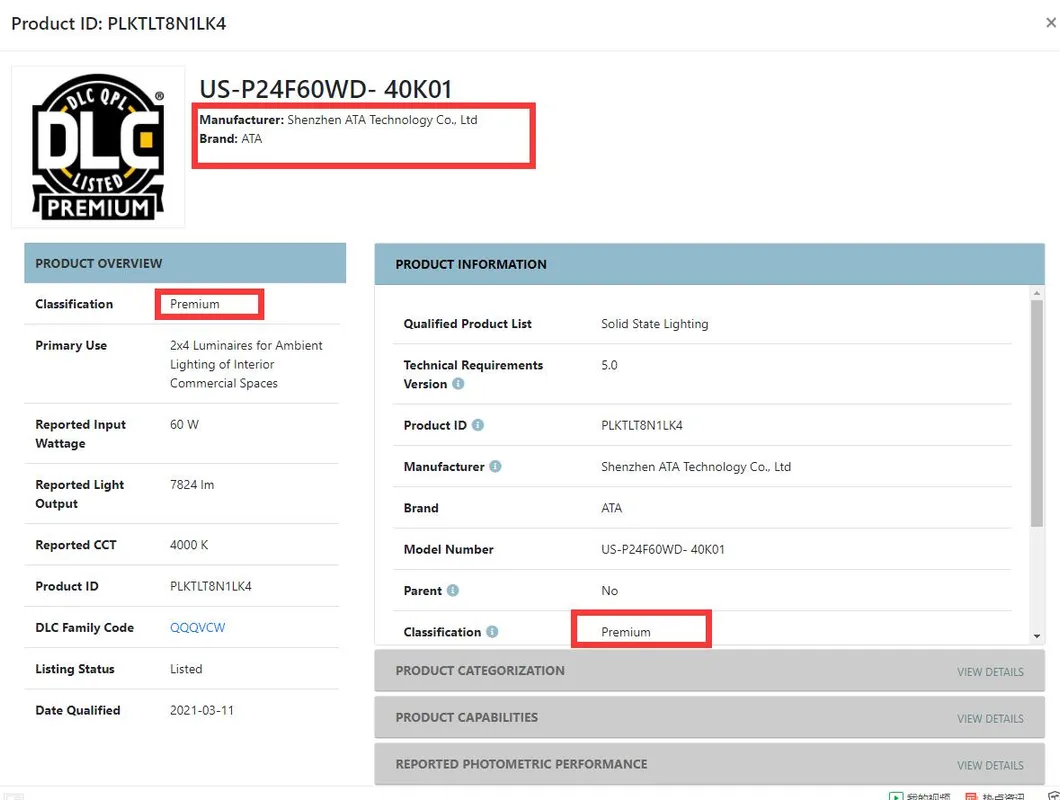

UL cUL DLC 5.0 Approved LED Panel Light.
High efficiency of 125lm/W, eligible for government rebates.

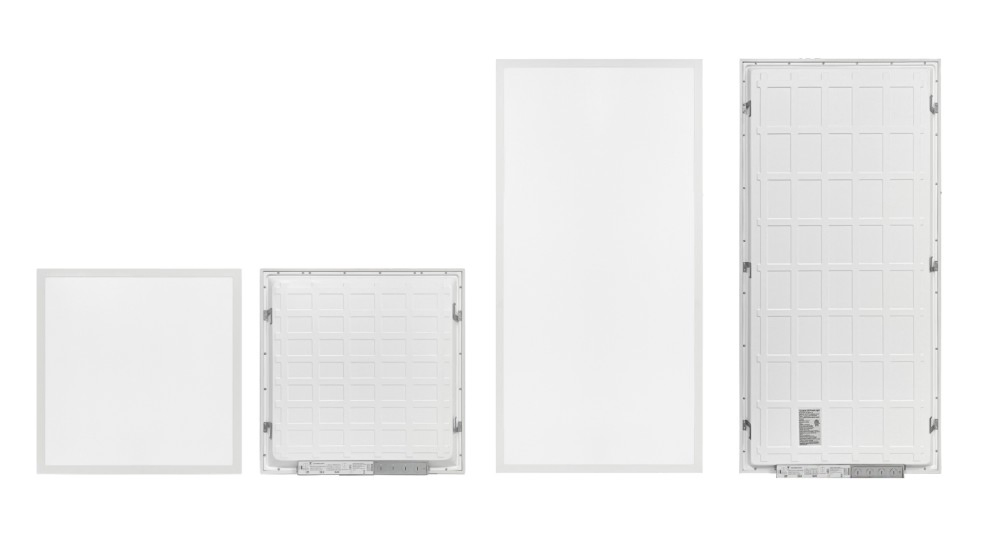

Multiple sizes available: 2x2ft, 1x4ft, 2x4ft, and 1x1ft (297x297mm).
Perfect Light Uniformity with reinforced frame for extra durability.
Thermoplastic coating for extreme scratch resistance.
Fire-rated junction box design for safe and easy installation.
Provides ceiling accent and usable downlighting simultaneously.
Transparent polycarbonate lens with frosted center for smooth illumination.
Energy-efficient: Lasts 5 times longer than fluorescent panels.

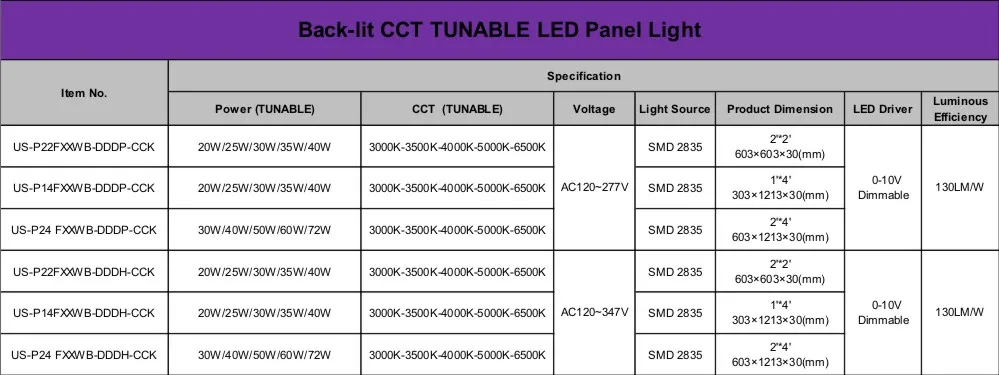

Technical Specifications

Light source	2835, LM80
High efficiency	130lm/w
Driver efficiency	>89%
Parameters	CRI(Ra)>83, PF>0.95, THD<15%, UGR<19
Working Voltage	AC100~277V / 347V

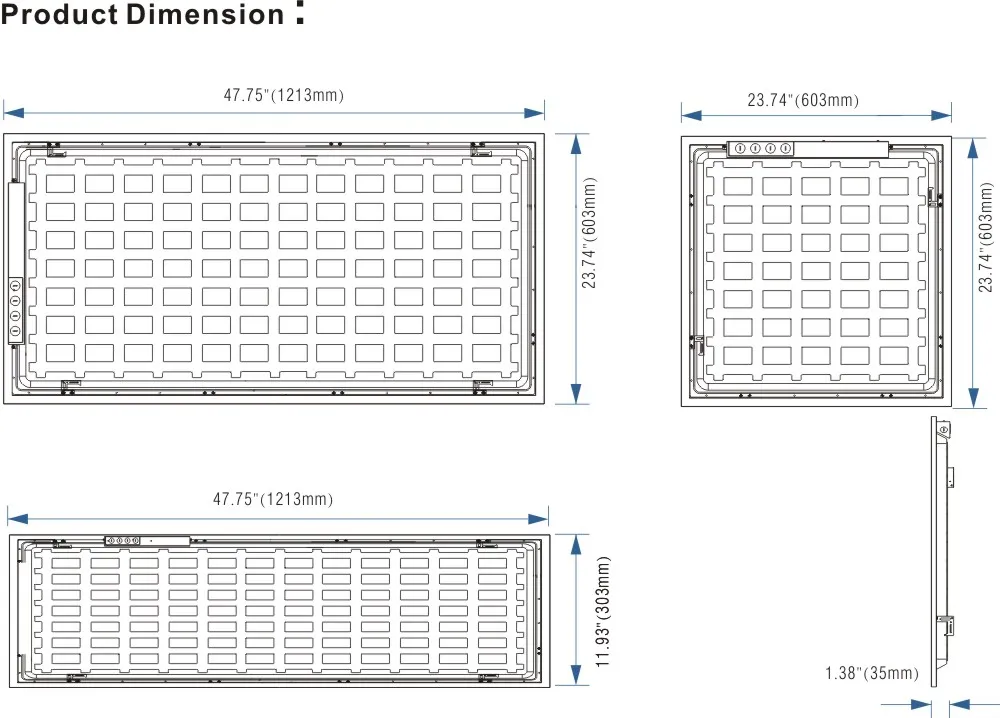

Size (mm)	603X603 / 303X1213 / 603X1213mm
Function	0-10V dimmable, daylight & microwave sensor, Emergency
Material	AL+PMMA Diffuser
Installation	Embedded, Suspending, Roof mount, Latch catches
Warranty	5 years

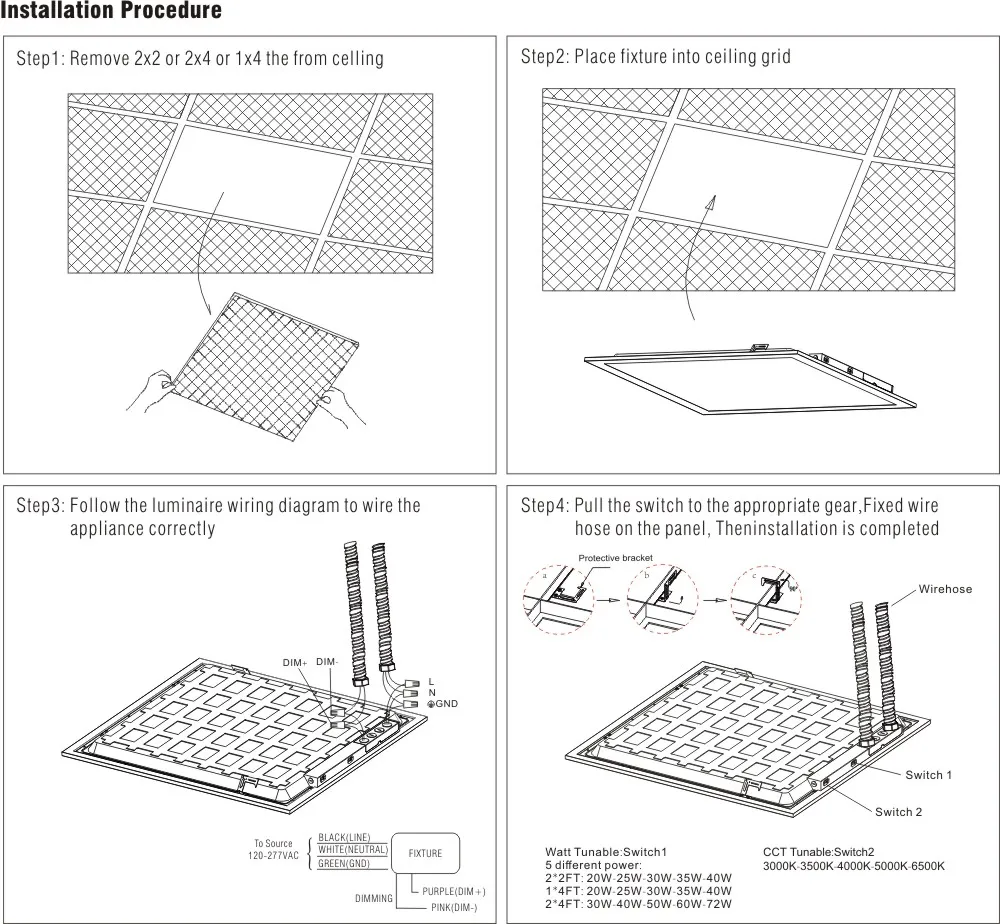

Installation & Applications

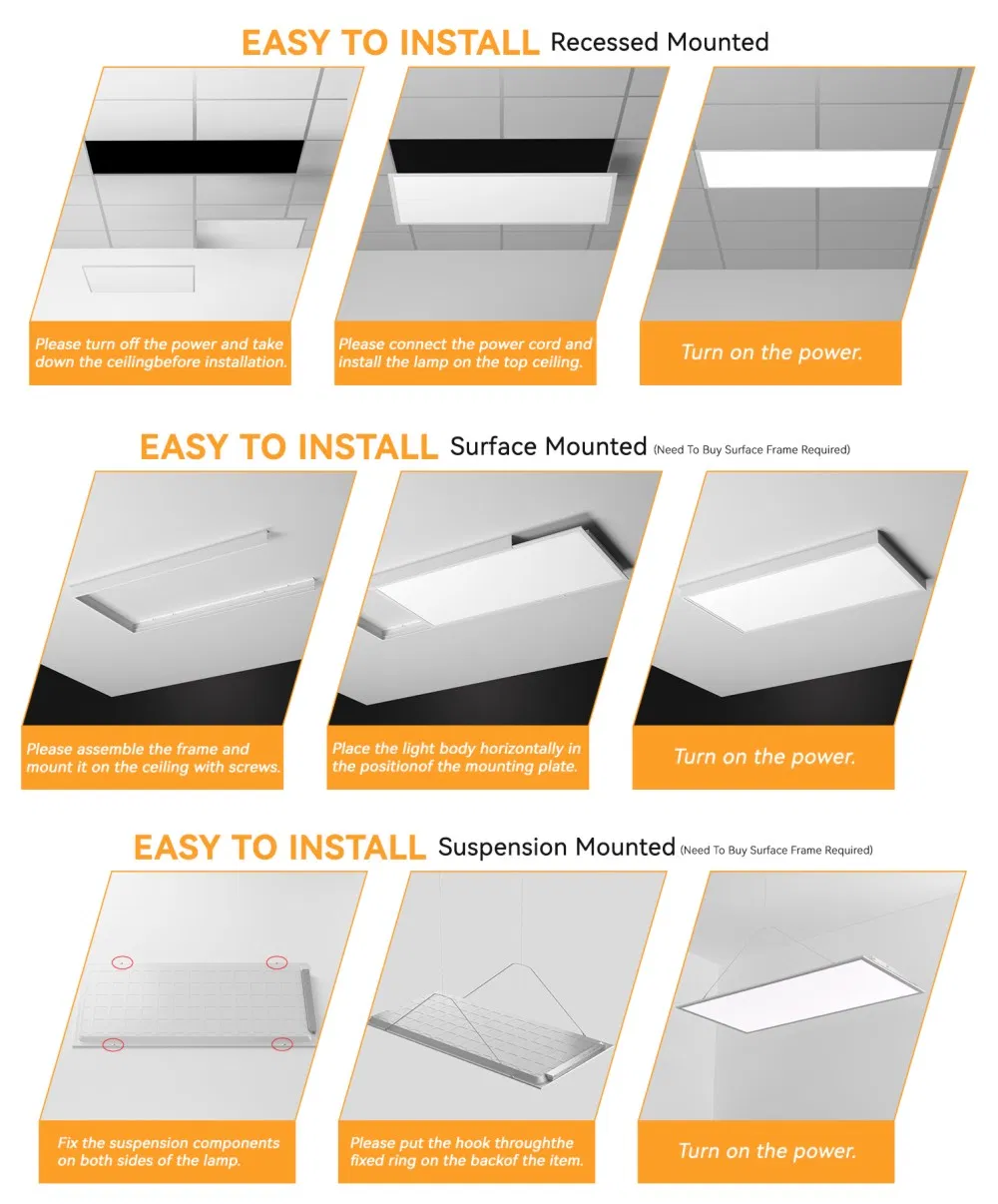

Installation Methods:

Embedded without accessories
Suspending with wire rope
Surface mounting fixture with frame
Earthquake proof with hook

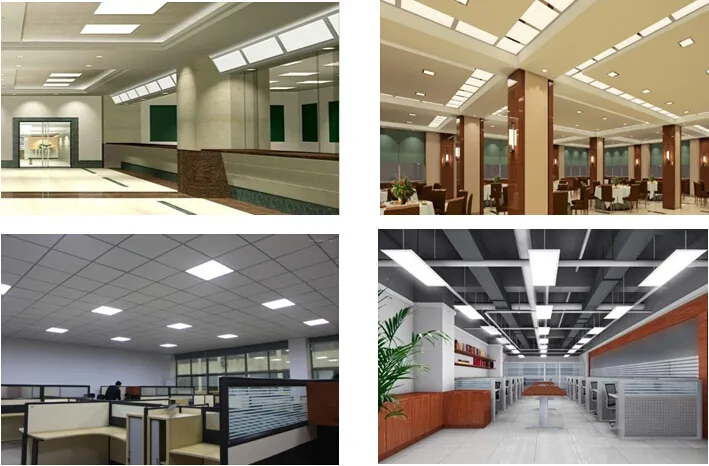

Perfect for: Hotels, restaurants, high-end offices, meeting rooms, villas, shopping malls, hospitals, schools, and industrial buildings where energy saving and high color rendering are required.

Quality Control

Stability TEST: 100% aging test for at least 48 hours.
Lighting TEST: 100% functional test before packing.
Drop TEST: Ensuring every single light is protected for transport.

Frequently Asked Questions

Q: What certifications do these LED panel lights hold? A: Our LED panel lights are fully certified with UL, cUL, DLC 5.2, TUV, GS, CB, SAA, FCC, CE, and RoHS, ensuring safety and quality standards for global markets.

Q: Are the LED panels dimmable? A: Yes, they support 0-10V dimming and PWM dimming modes, allowing for flexible brightness control in commercial and residential settings.

Q: What is the energy efficiency of these panels? A: These panels offer high luminous efficacy ranging from 125lm/W to 130lm/W, making them highly energy-efficient and eligible for many government rebates.

Q: What installation methods are supported? A: They can be installed via several methods: embedded (no accessories needed), suspending with wire ropes, surface mounting with frames, or using earthquake-proof hooks.

Q: What is the warranty period for this product? A: We provide a 5-year warranty on our LED panel lights, backed by rigorous aging and stability tests for over 48 hours.

Q: Can these panels work with higher voltages like 347V? A: Yes, our panels operate within a wide range of AC100-277V, and we also offer a 347V version specifically for the North American industrial market.
