Best Array Dimmable Industrial Linkable LED Track Linear Lights for Home & Business Indoor Lighting

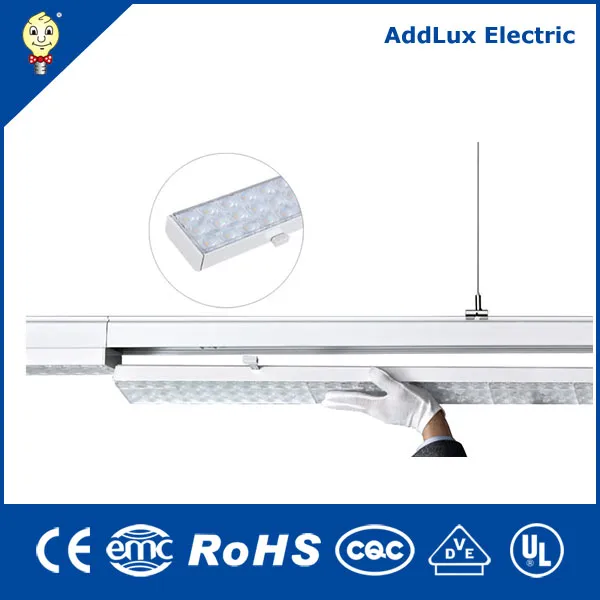

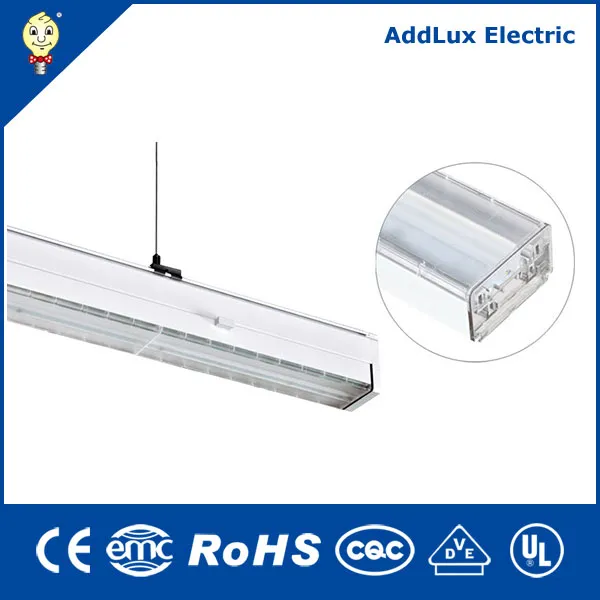

A continuous-row LED lighting system created by a trunking unit and a LED luminaire. It provides a consistent continuous-row system without visual interruption. The luminaire and trunking are perfectly matched as array dimmable linkable LED linear lights.
With Ra>80 and multiple color temperatures (3000k-6000k) with low UGR, this system complies with energy-efficient building guidelines. For high color accuracy requirements (museums, jewelry stores), CRI 95 series is recommended.
| Item No. | Length | Power | Lumen |
| YB01Z0632 | 577mm | 28W | 4160Lm |
| YB01Z1575 | 1432mm | 75W | 9750Lm |
| YB01Z30150 | 2861mm | 150W | 19500Lm |
| YB01Z45225 | 4297mm | 225W | 29250Lm |
An energy-efficient, low-maintenance alternative to traditional fluorescent lighting. Ideal for industrial, commercial, and assembly applications. Tool-less installation saves time and labor costs.

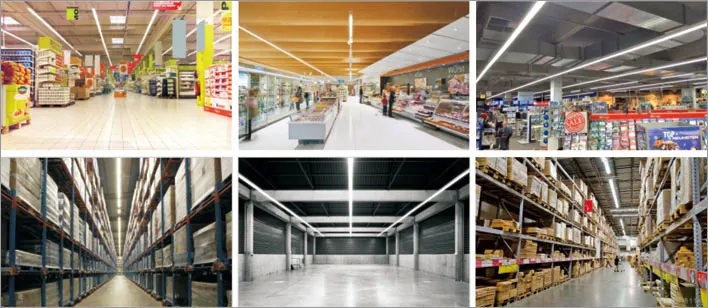

Business Lighting: Offices, Stores, Workshops, Warehouses, Restaurants, Lobby, Accent Lighting, Showrooms.
Home Lighting: Living Room, Kitchen, Bathroom, Bedroom, Study, Dining Room, Closet.

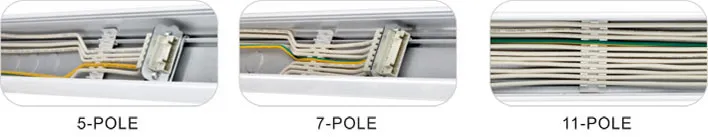

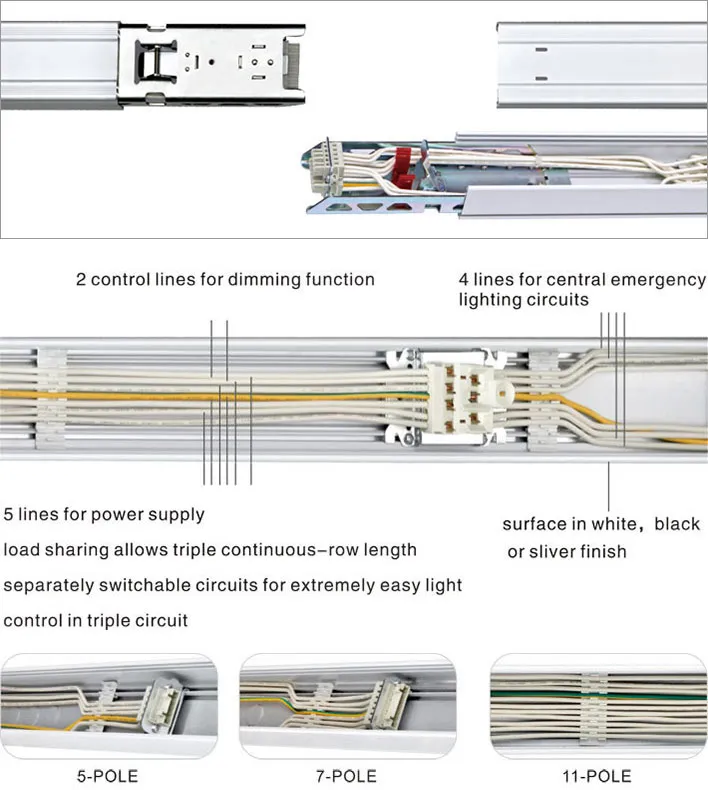

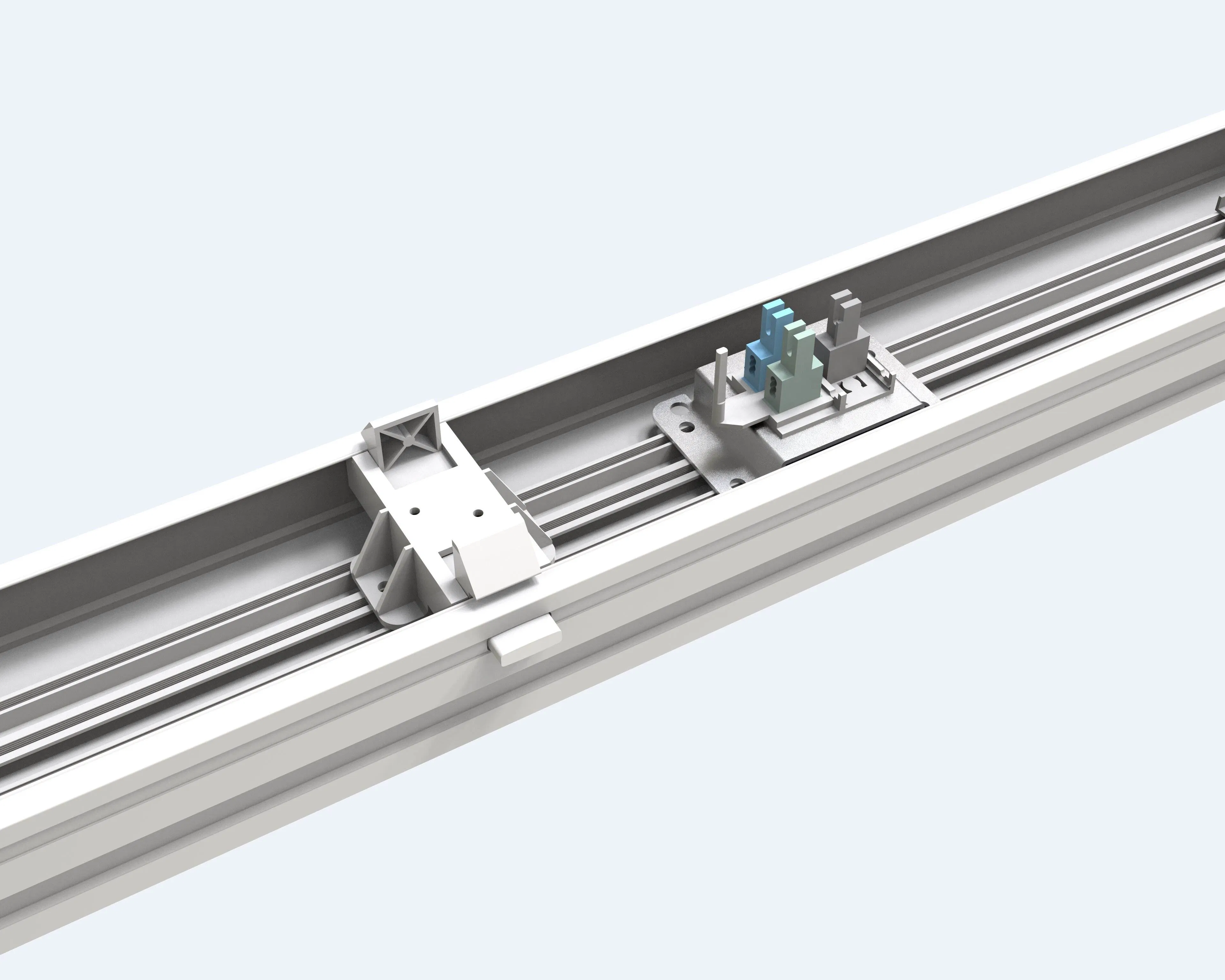

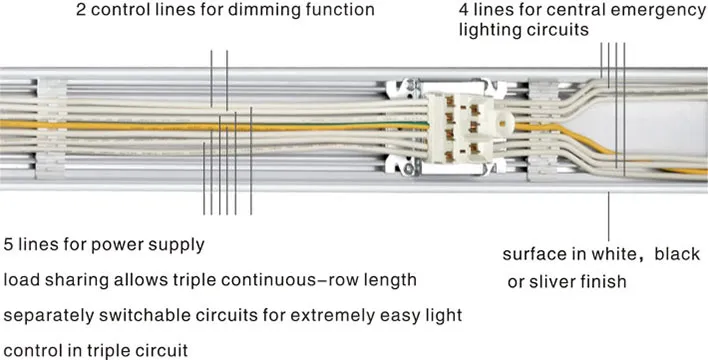

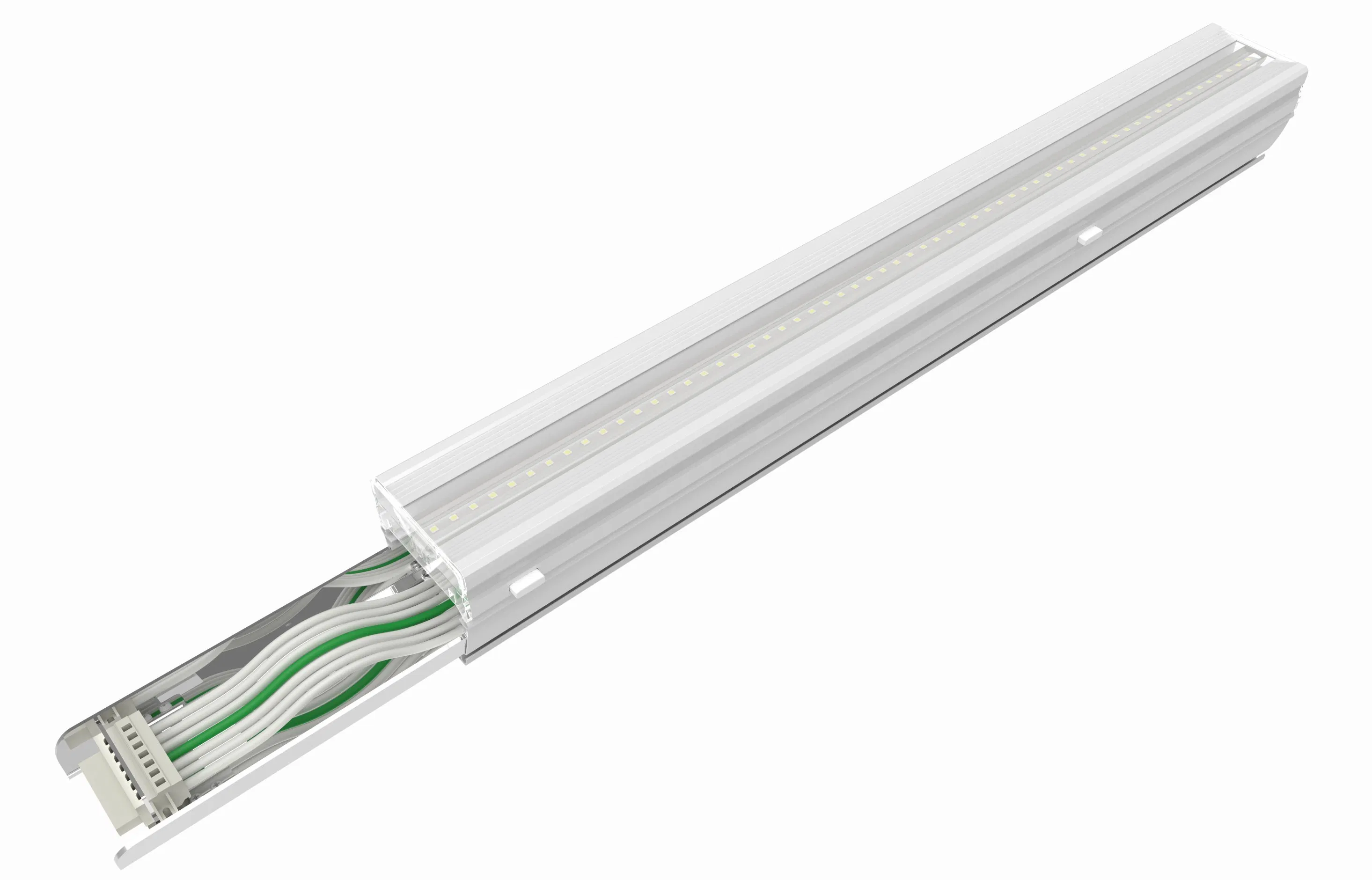

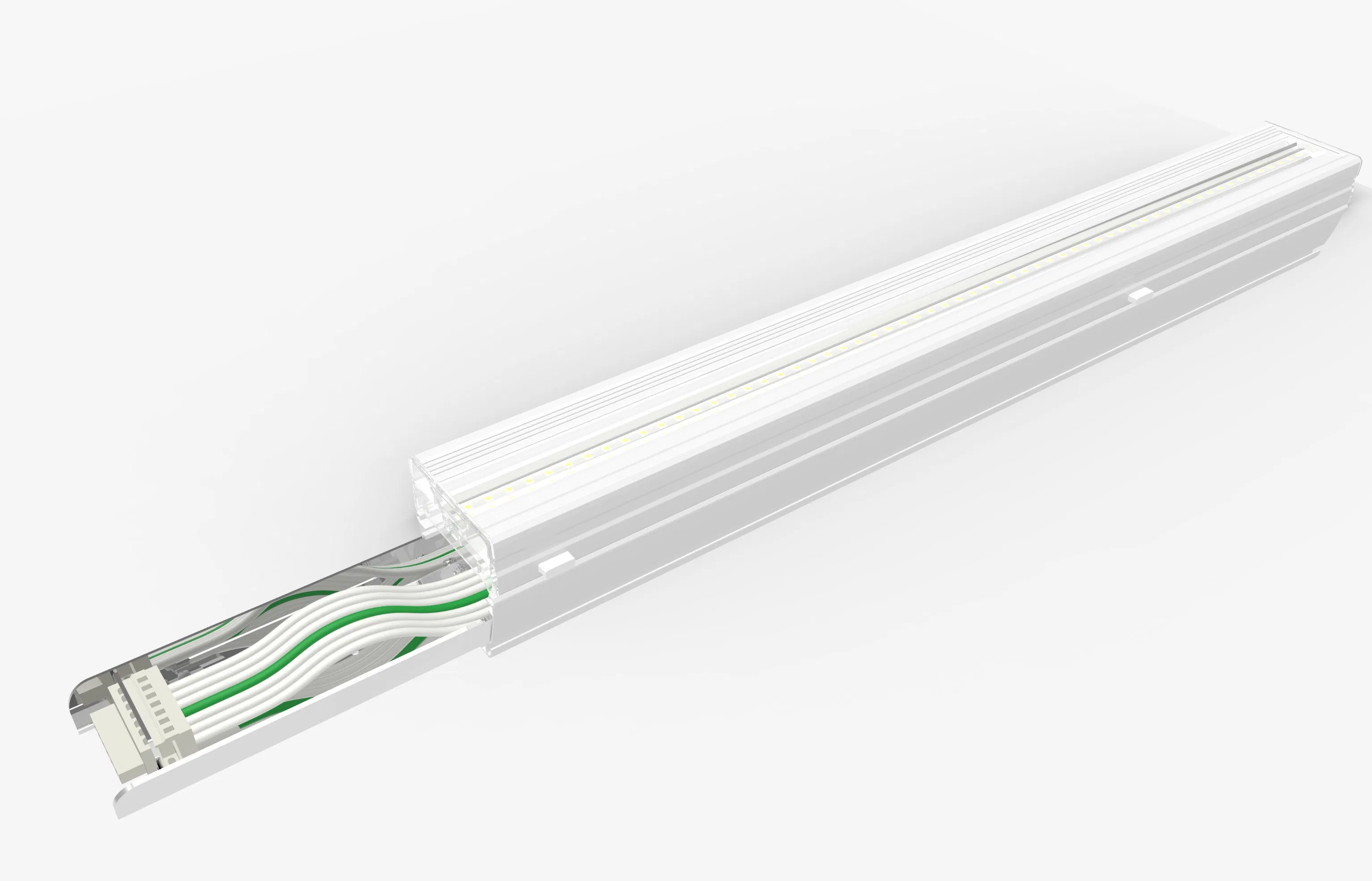

Flexible system with 11-pole current conducting section. Integrated power supply, lighting control, and emergency functions. Max 16A and 200m trunking length in 3-phase systems.

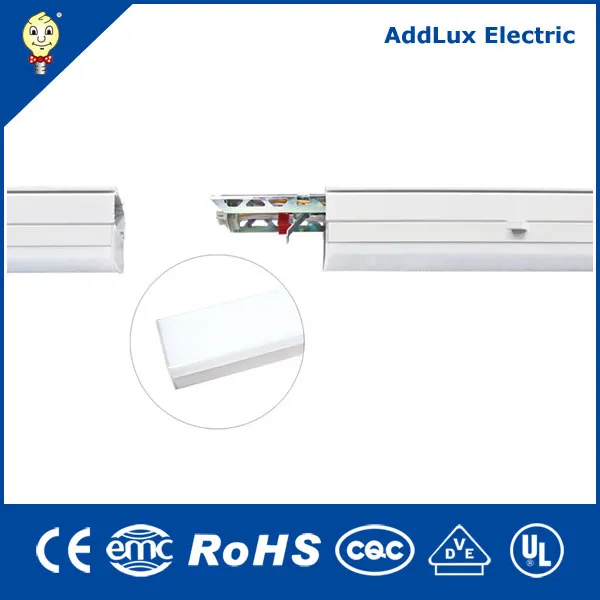

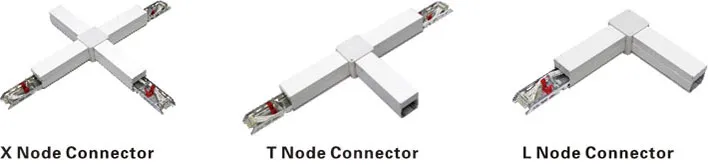

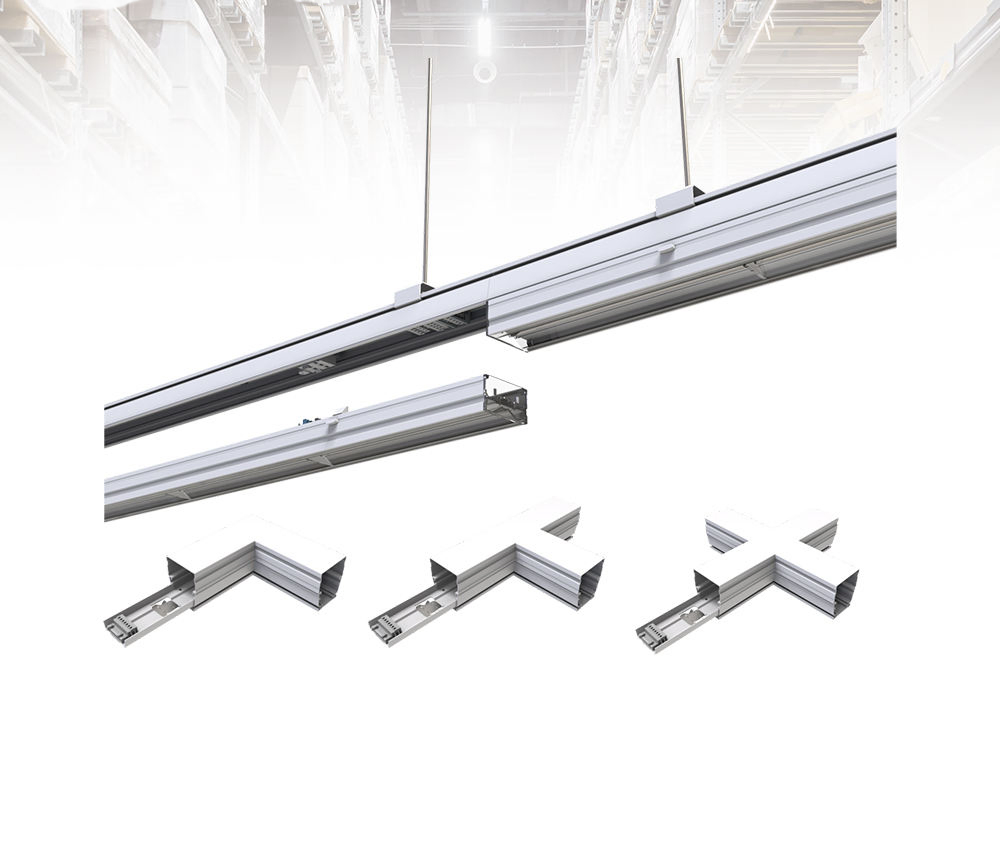

Tool-free combination using L, T, and X connectors. Supports electrical feed-in and feed-out points.

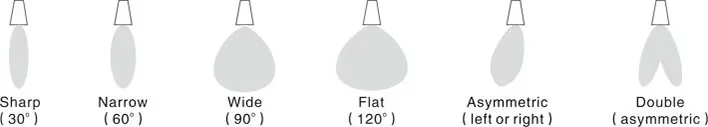

Wide range of distributions: Sharp (30°), Narrow (60°), Wide (90°), Flat (120°), and Asymmetric (Left/Right/Double).
Supports DALI, 1-10V, and DIM switch systems. Emergency mode includes central battery or self-contained battery options (1.5 - 3 hours). Multi-sensor systems integrate motion and daylight detection for maximum energy savings.

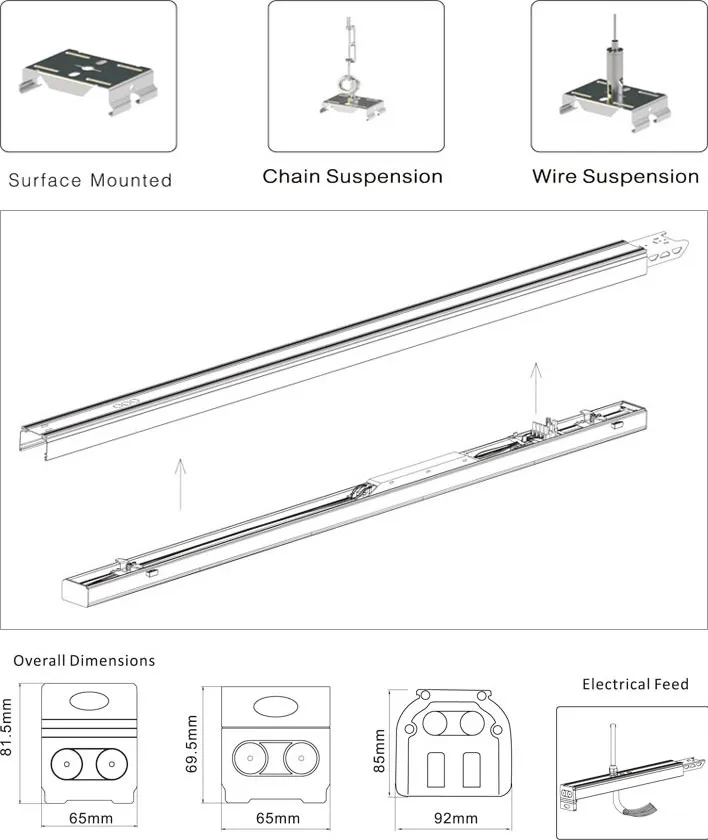

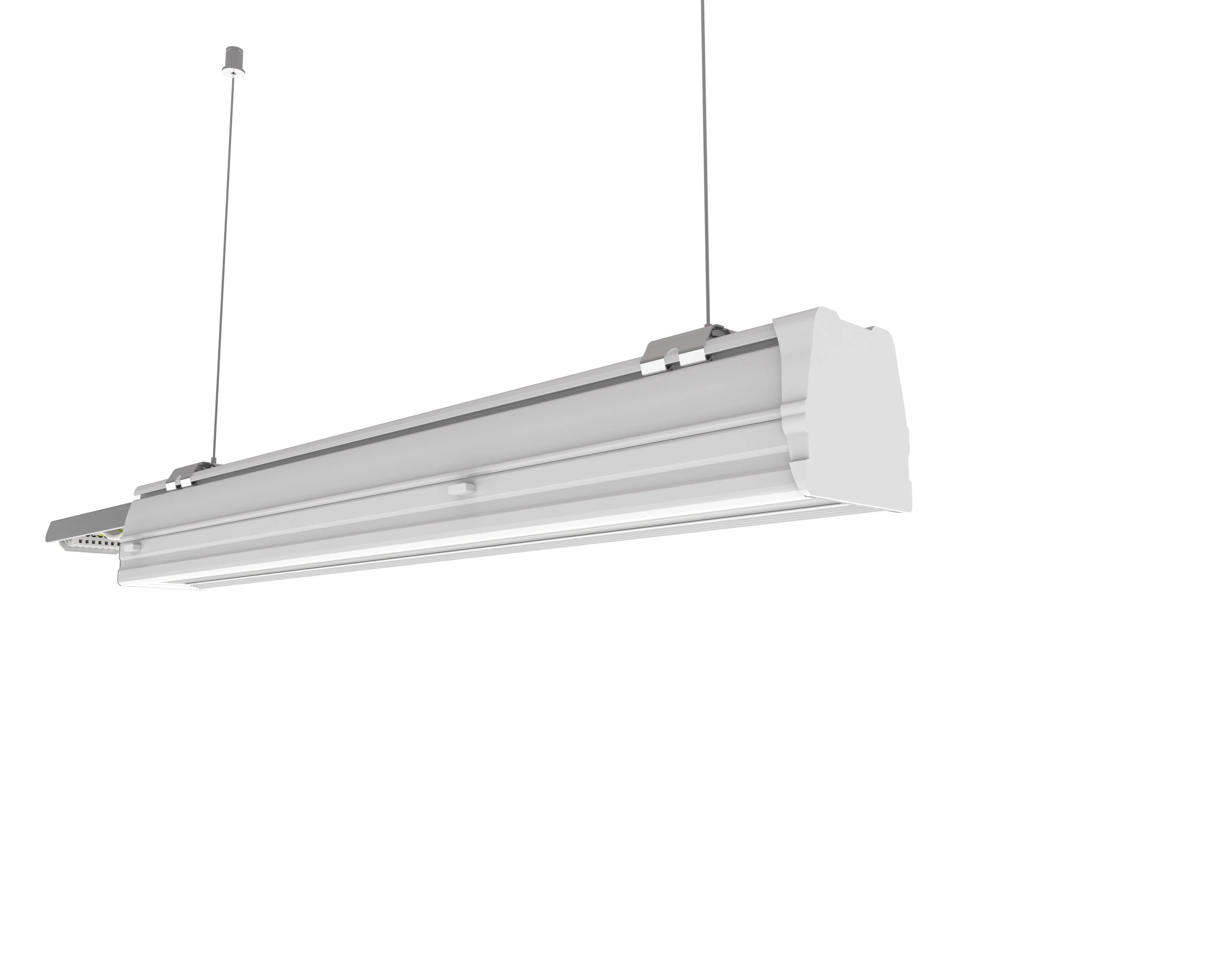

Maximum suspension span of 3m. Supports ceiling-mounted, wall-mounted, pendant, chain, and wire suspensions.
