Basic Specifications
Emitting Color
2700K-6000K
Wire
3 Wires; 4 Wires; 6 Wires
Certification
CE, EMC, LVD, RoHS
LED Chips
Citizen; Luminus; CREE
Dimming
No/off; Triac; 0-10V; Dali
Housing Color
White; Black; Customed
Beam Angle
15°; 30°; 45°; 60°

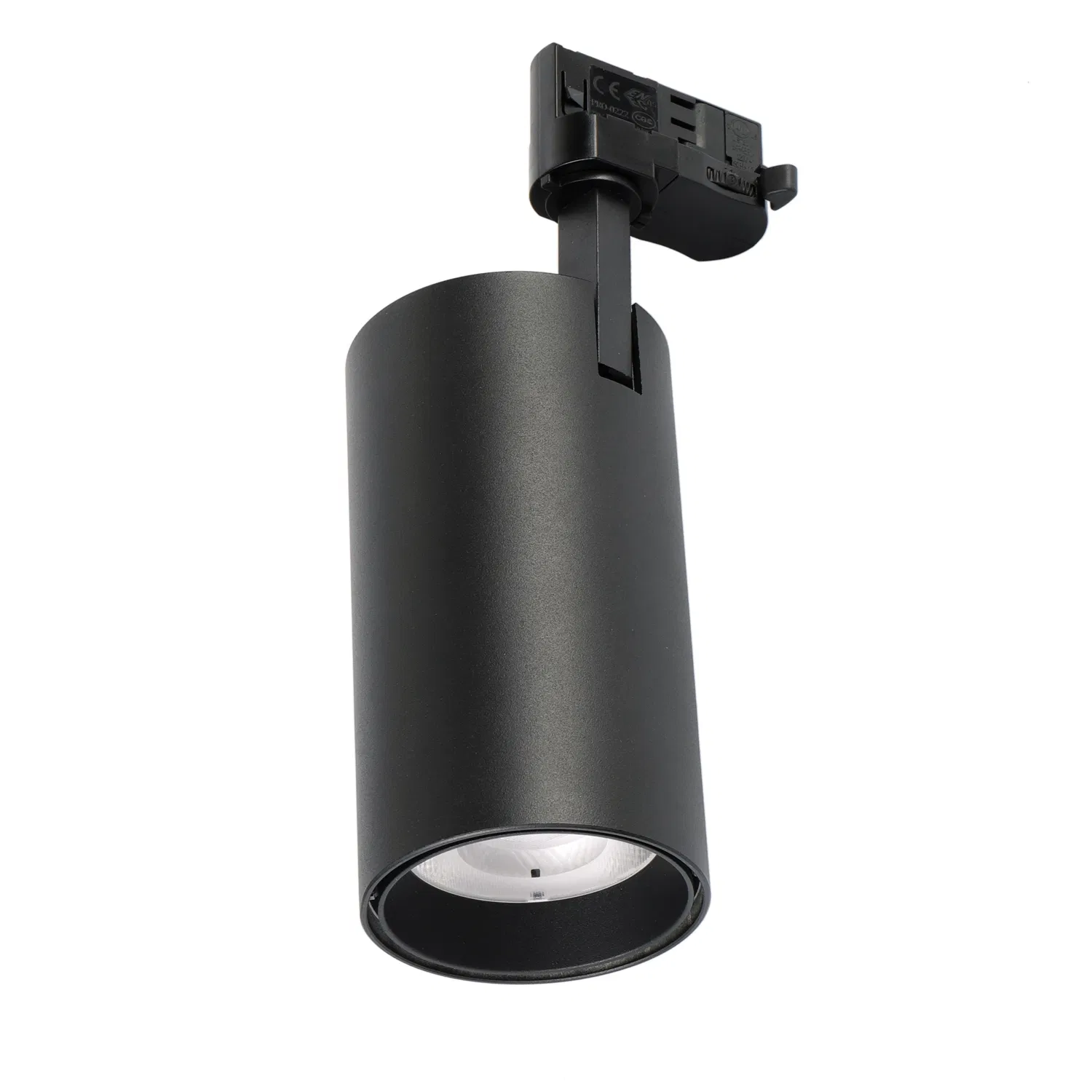

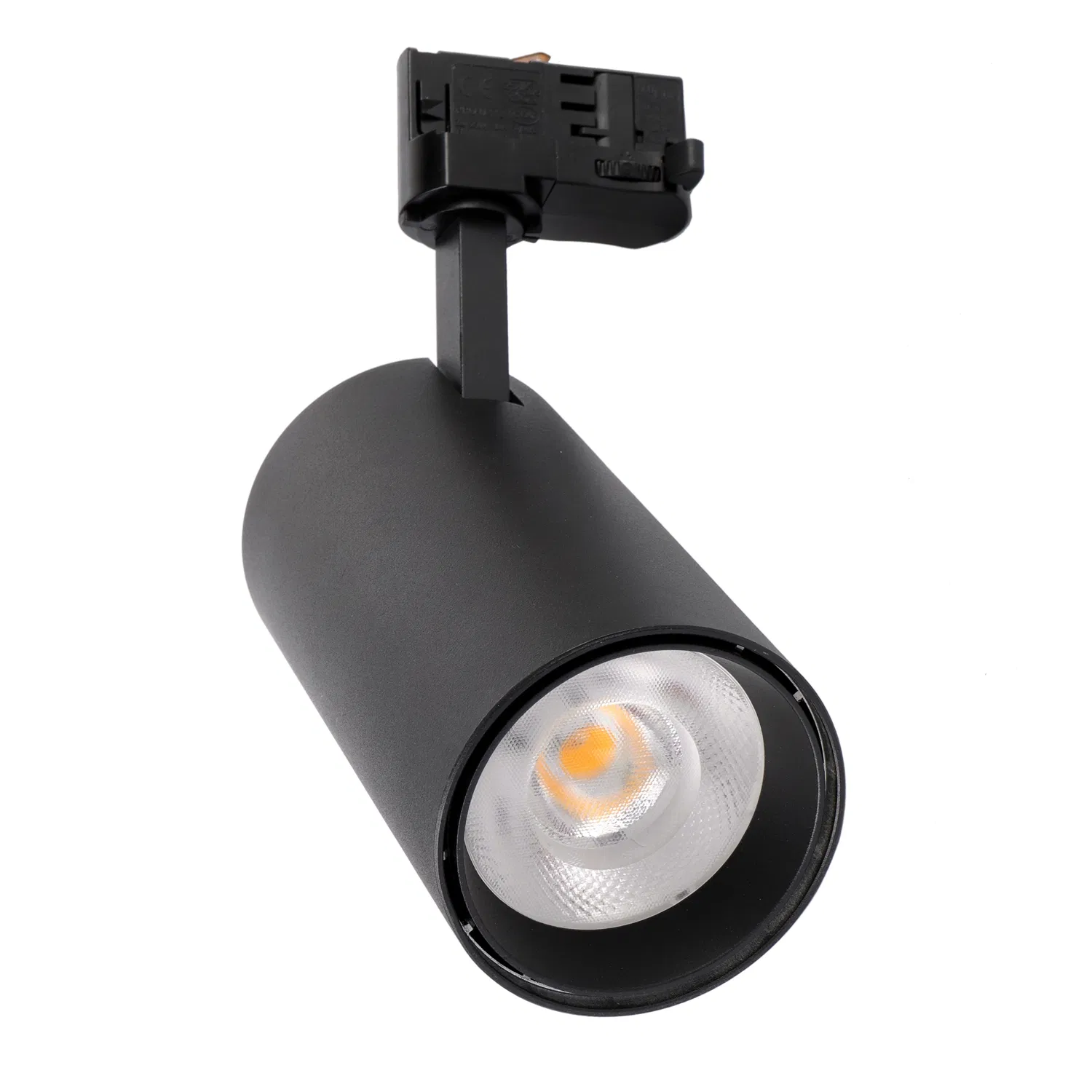

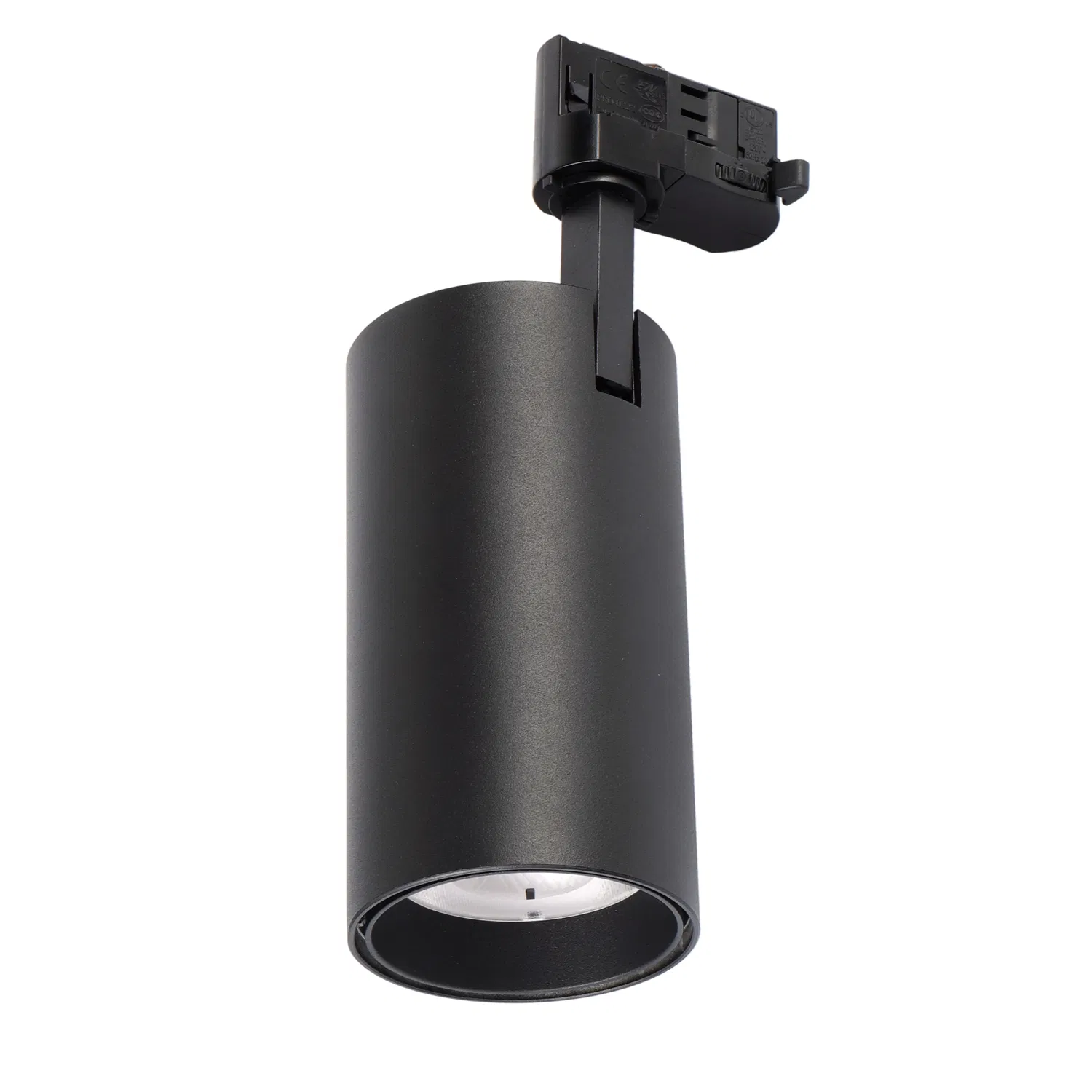

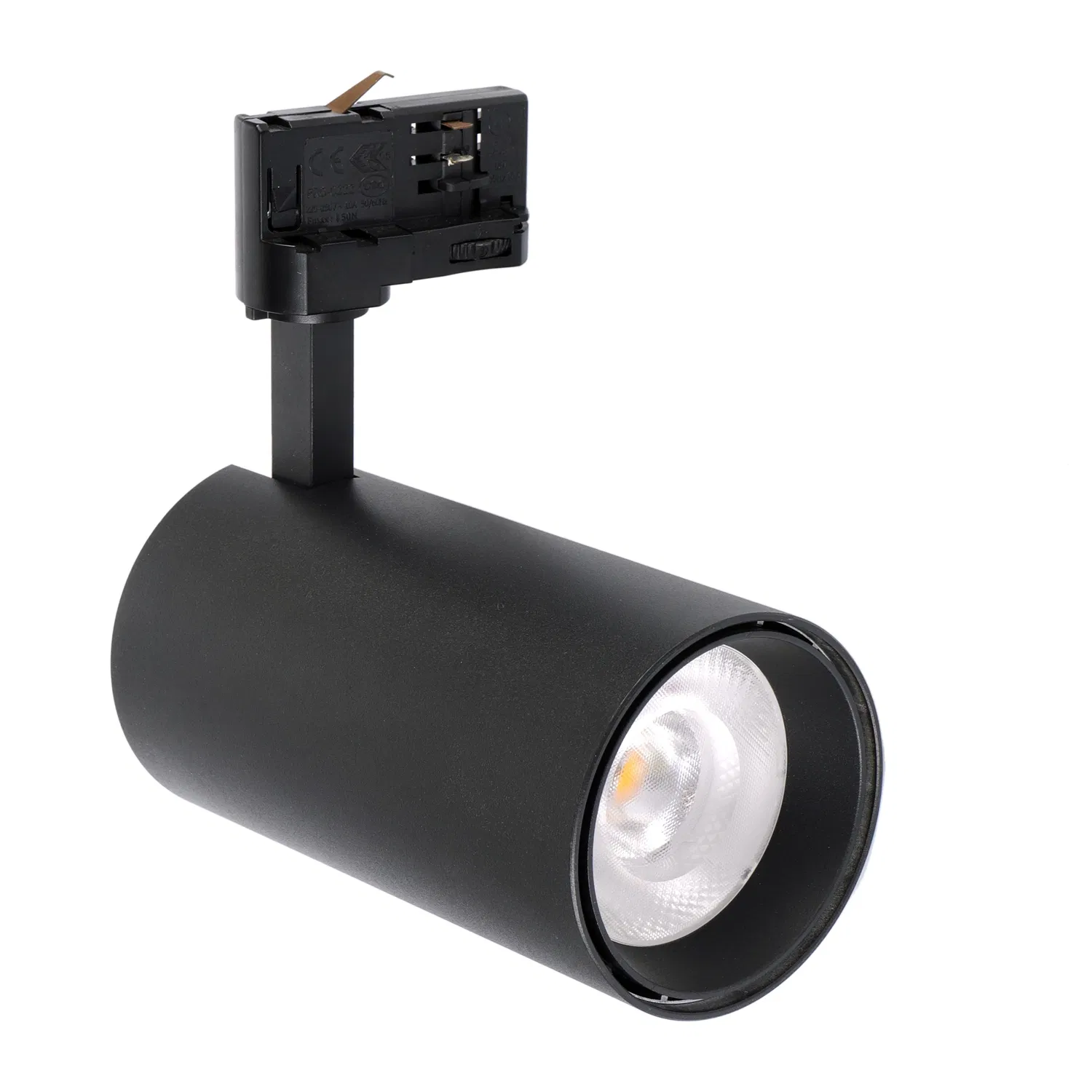

Commercial COB Spotlight 30W Adjustable Smart LED Track Light
This track light is with driver built-in, which makes it look very compact. Most led track lights with build-in drivers on the market have the problem of poor heat dissipation. But this one uses a high-performance driver, which is specially developed for built-in track lights and has high-temperature resistance. Though the driver is the built-in type, it also ensures a long lifespan of 50000 hours and a real warranty 5 years.
This series of track lights adopts Tridonic, Lifud, and Boke driver for non-dim; HEP driver for 0/1-10V dimming; Rxpower driver for DALI dimming.
Specification of LED Tracklight ST-T Series
| Feature |
ST-T1004 |
ST-T2004 |
ST-T3004 |
| Power (W) | 10W | 20W | 30W |
| Lumen Output | 1000-1200lm | 1900-2200lm | 3300-3800lm |
| Beam Angle | 15° / 24° / 36° / 50° | 15° / 24° / 30° / 55° | 15° / 30° / 45° / 60° |
| Size | 65*130mm | 75*160mm | 85*160mm |
| LED Brand | Citizen / Luminus / CREE |
| CCT | 2700K / 3000K / 4000K / 5000K / 6000K |
| CRI | Ra>90 / Ra>95 / Ra>97 |
| Driver Brand | Philips / Osram / TCI / Powergear |
| Dimmable | non-dim / Triac-dim / 0-10V dim / DALI dim |
* DALI dimming is available with 4 wires and 6 wires.
* Zoomable beam angle 15-60° is available.
* Turnable CCT by DIP switch is available.

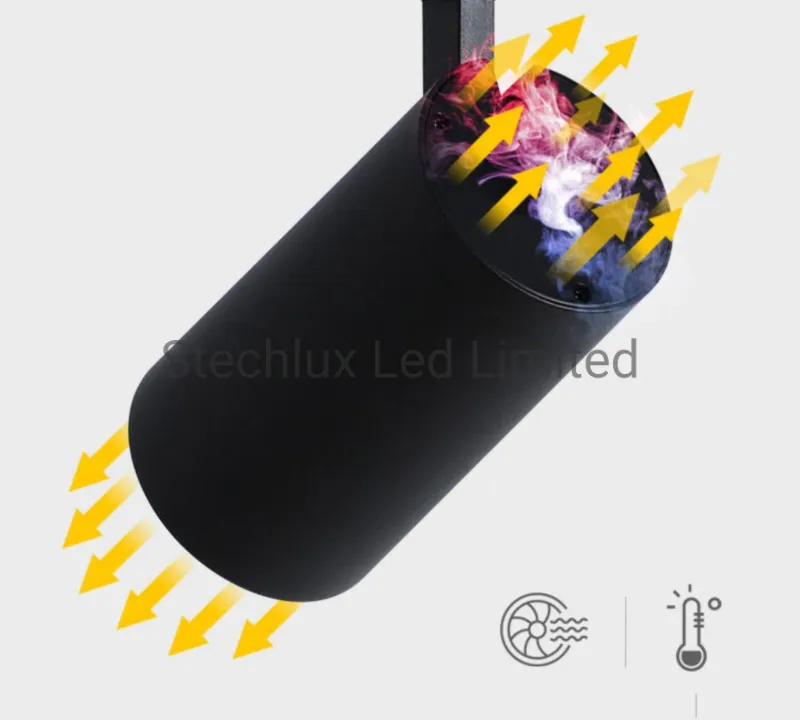

Cold Forging Aluminum #1070 Heatsink
The lamp body uses purer aluminum #1070 technology. The cooling effect is 30% higher than #6063 profile aluminum and 2 times better than ADC12 die-casting aluminum.
Thermal Conductivity Comparison:
- Cold forging aluminum (#1070): 226 w/m.k
- Profile aluminum (#6063): 180 w/m.k
- Die casting aluminum (#ADC12): 98 w/m.k

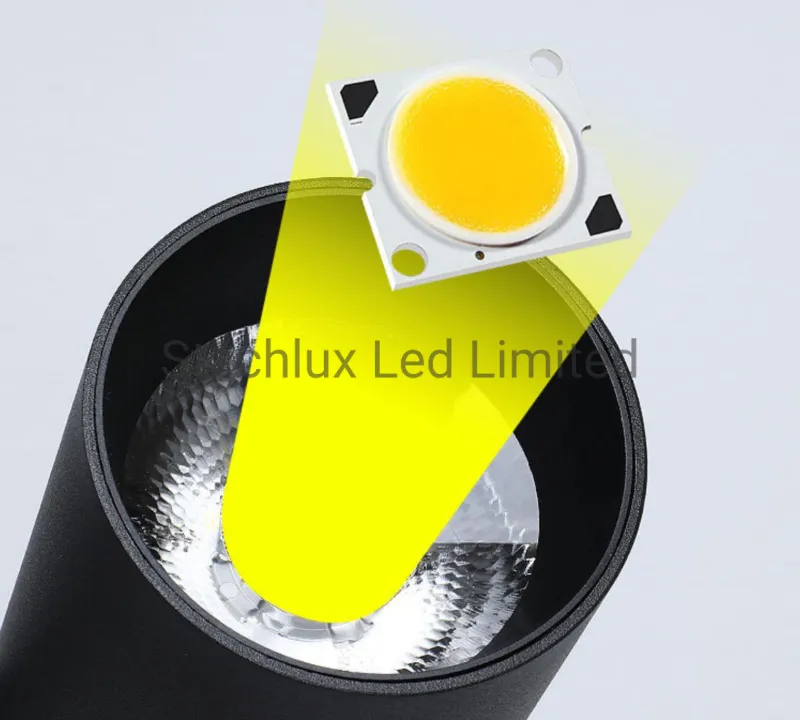

High CRI & Efficient LED Chip
Equipped with original Citizen or Luminus COB chips. Offers high CRI90/95 for superior color restoration and high energy efficiency (up to 137lm/W at 3000K CRI90).

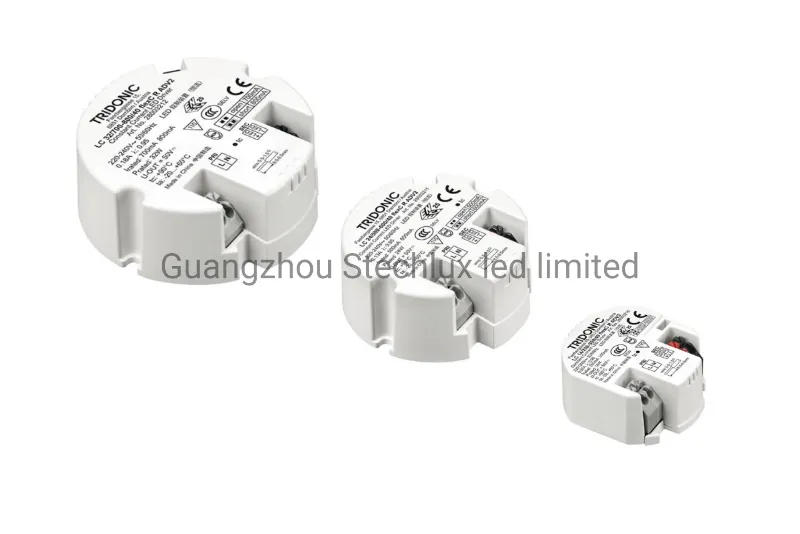

High-Temperature Resistant Driver
Built-in glued type driver designed for heat resistance. Tridonic drivers used have Tc >90ºC, ensuring stability. PF>0.95 and flicker-free performance.

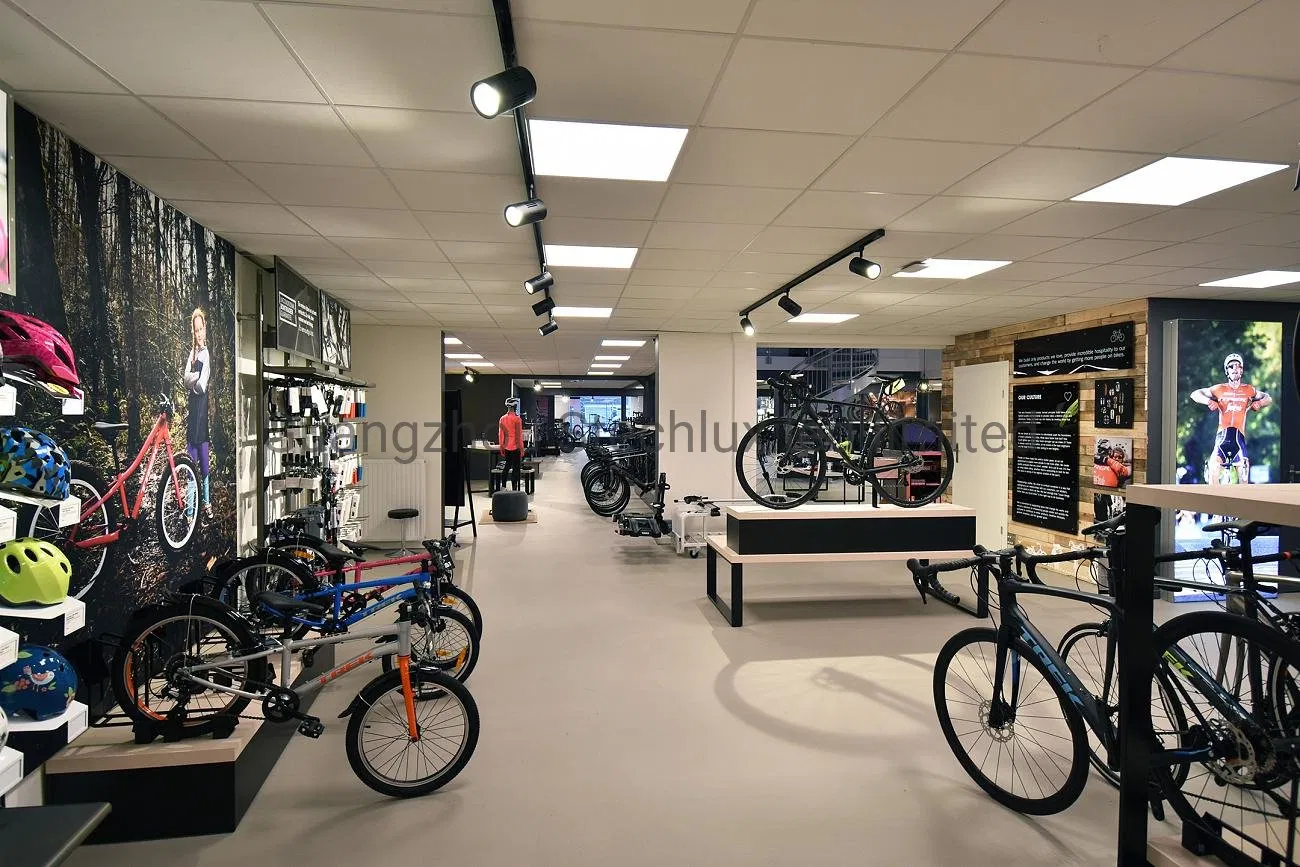

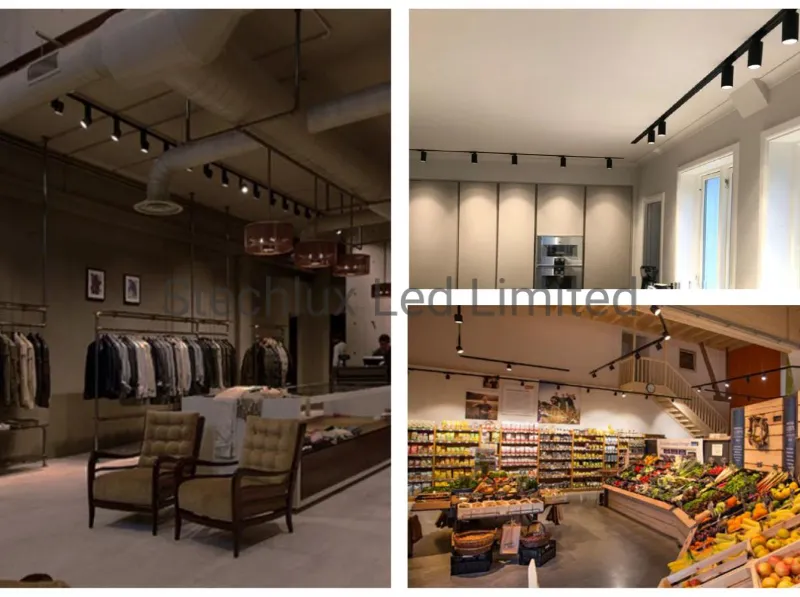

Applications
Perfectly suitable for high-end hotels, villas, mansions, and commercial showrooms, providing comfortable and healthy lighting environments.
Packaging & Delivery
Package Size
9.50cm * 9.50cm * 26.00cm
Frequently Asked Questions
Can I request a sample order?
Yes, we welcome sample orders for quality checks. Mixed samples are also acceptable for evaluation.
What is the typical lead time for orders?
Samples usually take 3-5 days, while formal bulk orders typically take 7-15 days depending on the quantity.
Do you provide a guarantee for these LED track lights?
Yes, we offer a 3-5 year warranty. We maintain a strict quality control system with a defective rate under 0.3%.
Is logo printing available on the products?
Yes, please inform us before production and provide your logo file in an editable format for customization.
How are the goods shipped and how long does it take?
We usually ship via Express (DHL, FedEx, etc.) which takes 3-5 days. Airline, sea, and rail shipping options are also available.
How do I start an order for my project?
Select the suitable products based on your project requirements and send an inquiry with detailed specifications.
