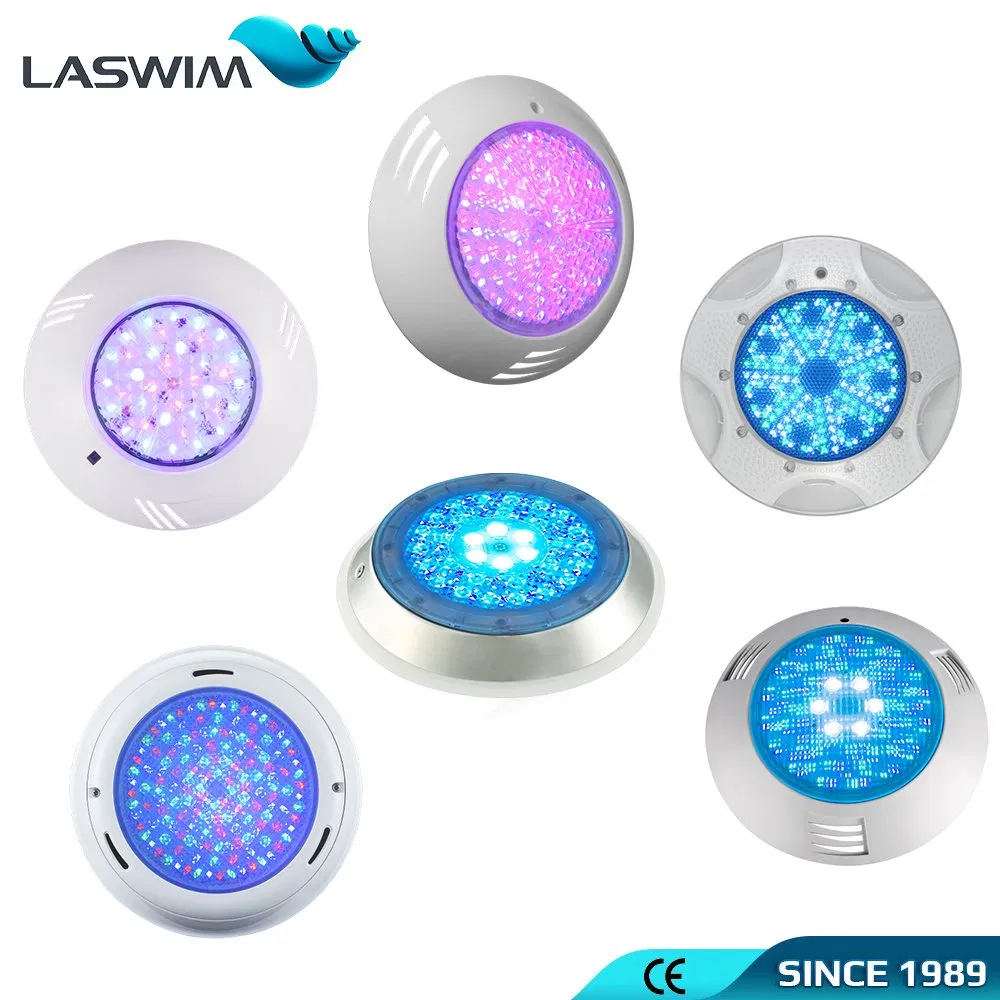

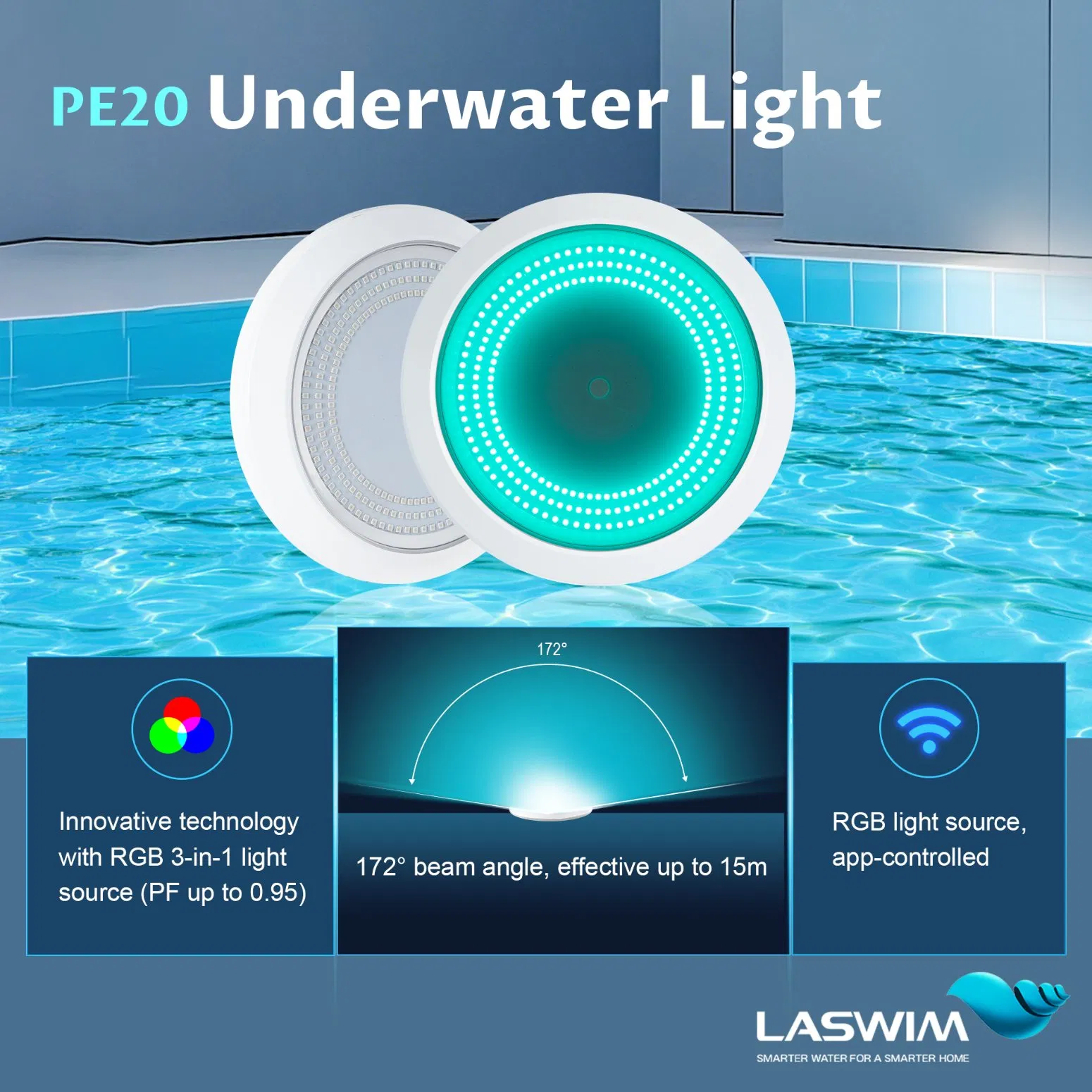

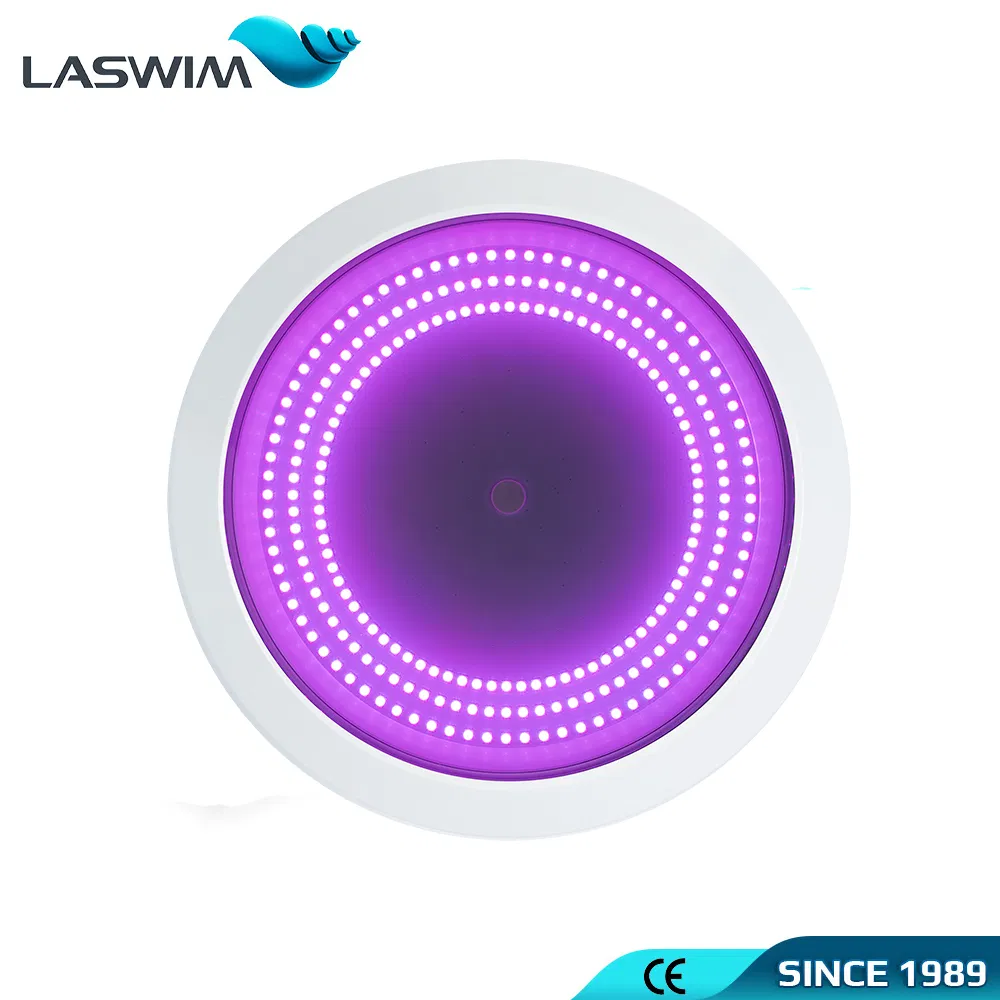

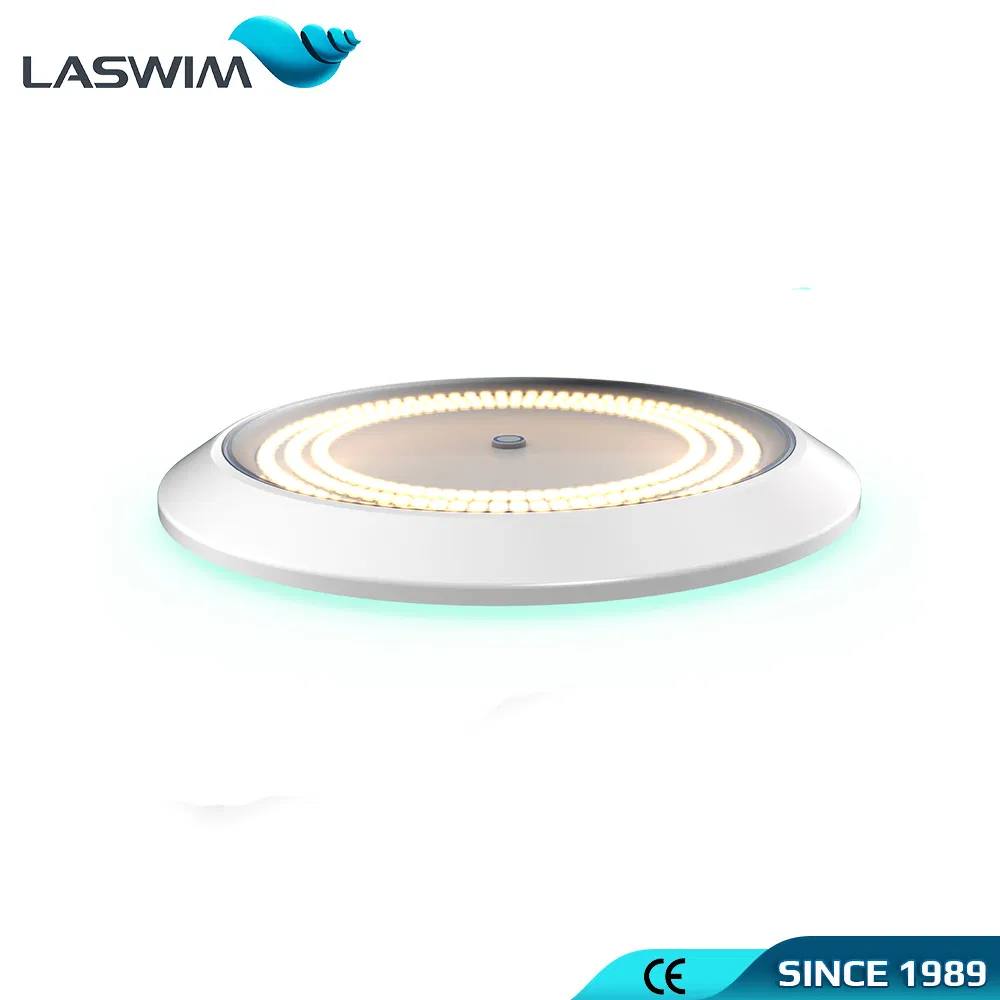

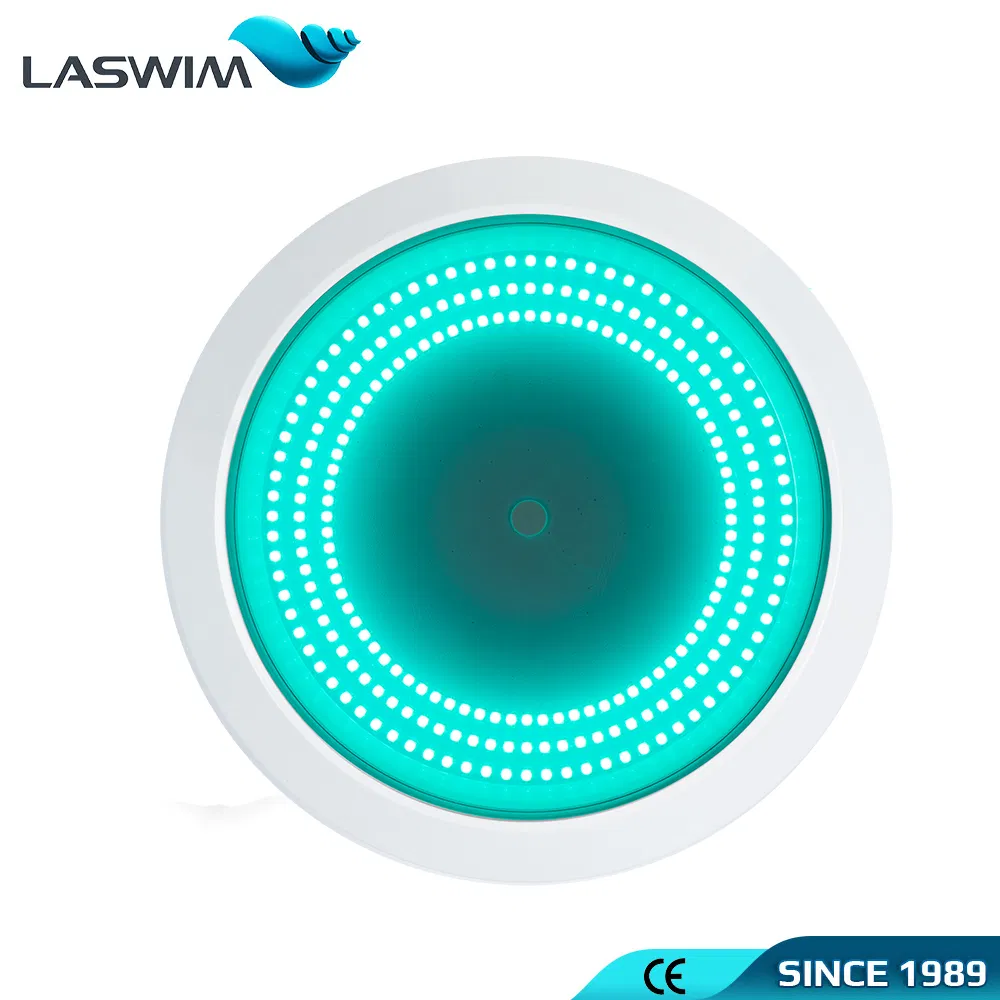

Smart LED Swimming Pool Underwater Light 115° Wide Angle RGB+White APP Control
Smart LED Swimming Pool Underwater Light 115° Wide Angle RGB+White APP Control
Smart LED Swimming Pool Underwater Light 115° Wide Angle RGB+White APP Control
Smart LED Swimming Pool Underwater Light 115° Wide Angle RGB+White APP Control
Smart LED Swimming Pool Underwater Light 115° Wide Angle RGB+White APP Control
1 / 5
Smart LED Swimming Pool Underwater Light 115° Wide Angle RGB+White APP Control
Smart LED Swimming Pool Underwater Light 115° Wide Angle RGB+White APP Control
Smart LED Swimming Pool Underwater Light 115° Wide Angle RGB+White APP Control
Smart LED Swimming Pool Underwater Light 115° Wide Angle RGB+White APP Control
Smart LED Swimming Pool Underwater Light 115° Wide Angle RGB+White APP Control

Smart LED Swimming Pool Underwater Light 115° Wide Angle RGB+White APP Control

Customization: Available
Waterproof Standard: IP68
Lamp Body Material: Fiber Reinforced Plastics
Send Inquiry

Product Description

Underwater Light Banner
Overview & Basic Info
Model NO.
WL-PE20
Emitting Color
Cool/Warm White, RGB Mixing
Application
Swimming Pool, Fountain, Pond
Voltage
AC12V / DC12-24V
Power
24W
Light Source
LED (240 LEDs, Ring Type)
Beam Angle
115° Ultra-Wide
CRI
≥80
Certification
CE, ISO
Control
Yaq / Applume / APP Control

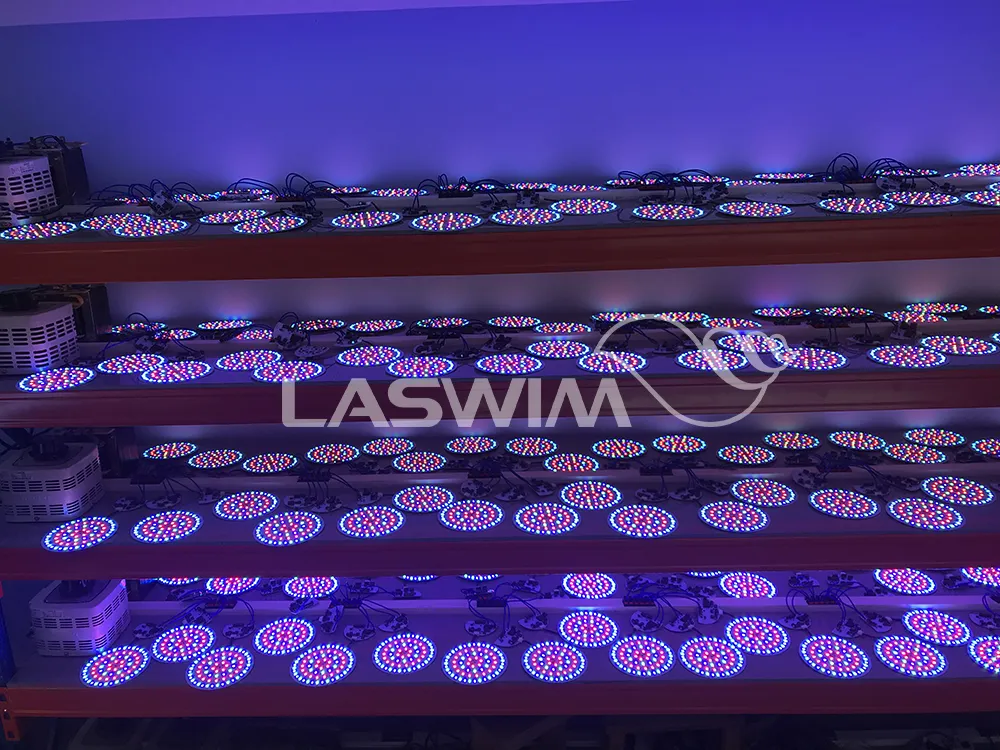

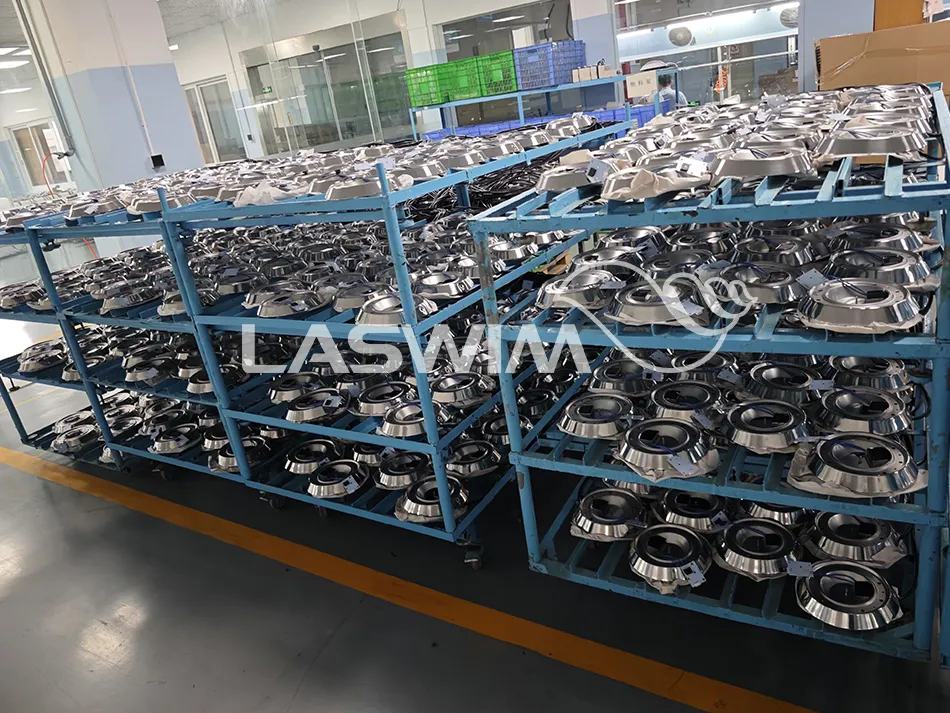

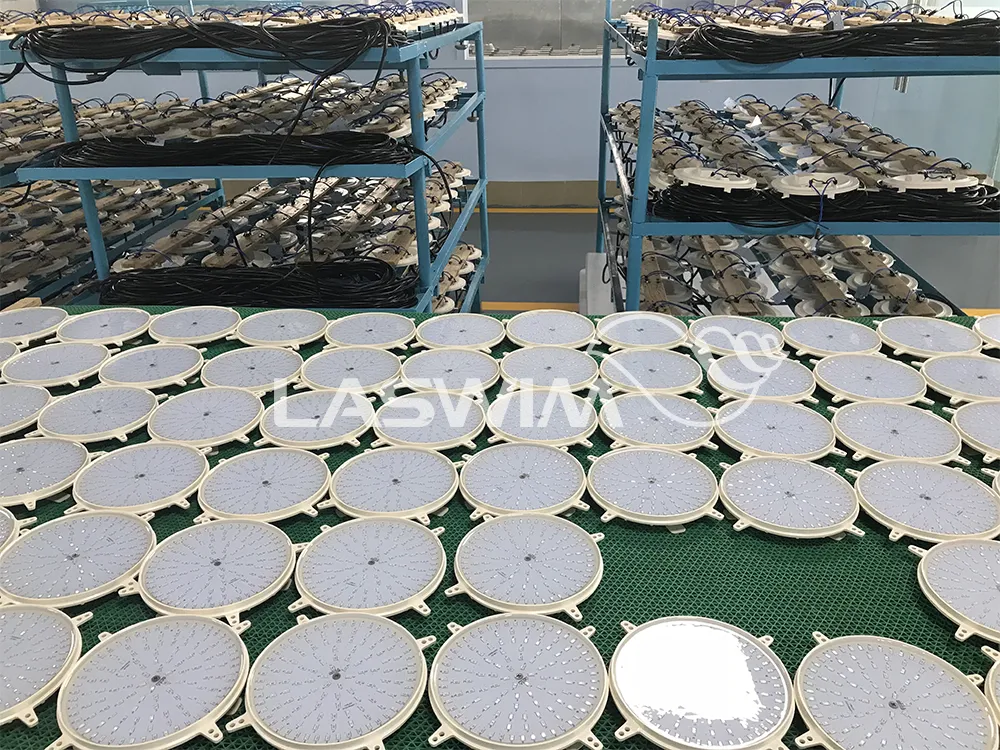

Pool Light View 1 Pool Light View 2 Pool Light View 3
Key Features
  • Ultra-Wide 115° Beam Angle - Eliminates shadows for uniform, flawless pool lighting.
  • Advanced Cooling Technology - Lower PCB temperature ensures higher efficiency and longer lifespan.
  • Smart Safety Protection - Built-in overvoltage protection and thermal dimming against power surges.
  • RGB & Multi-White Control - 6500K/4000K/2700K options with one-click synchronization and music rhythm mode.
  • Easy Installation - Compatible with 2-wire (AC) and 3-wire (DC) cabling with smart communication protocols.

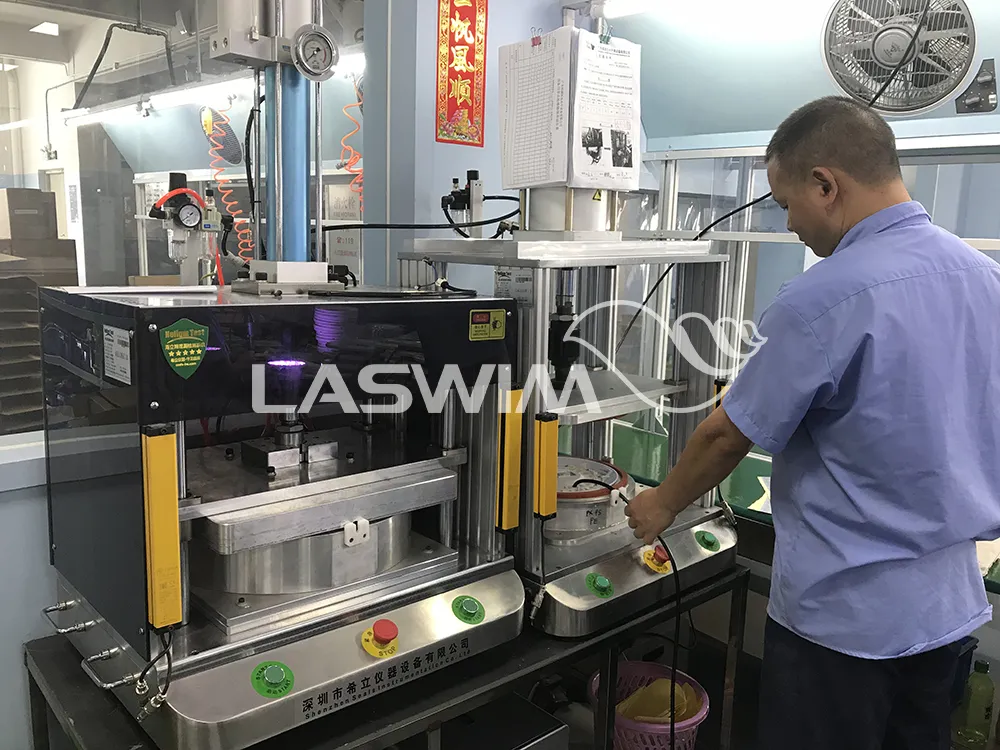

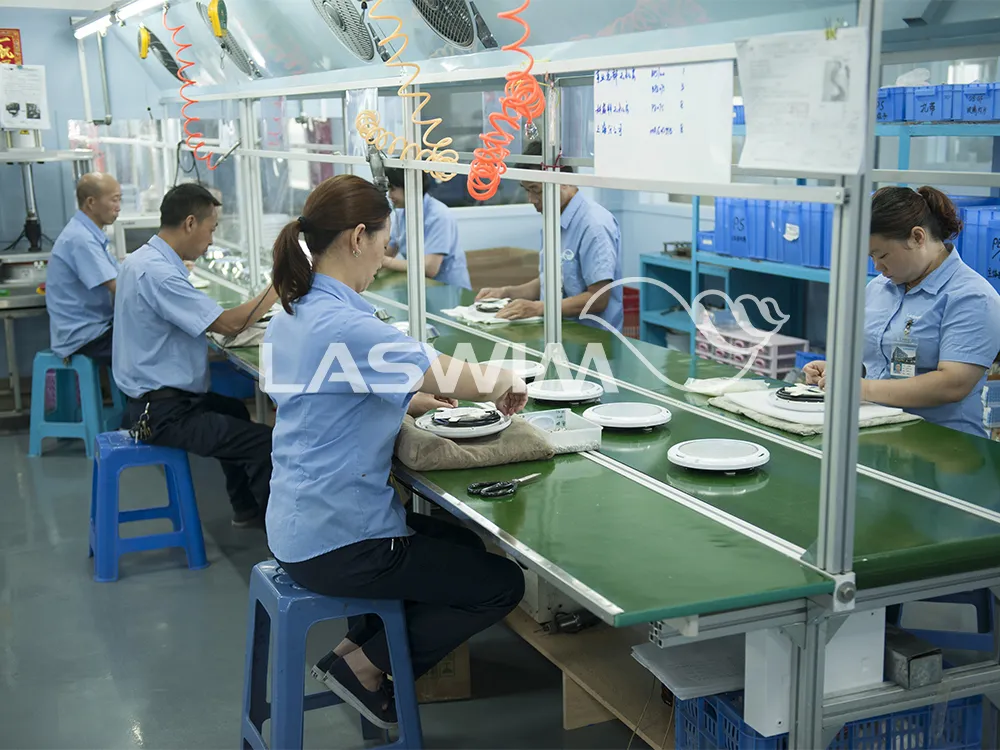

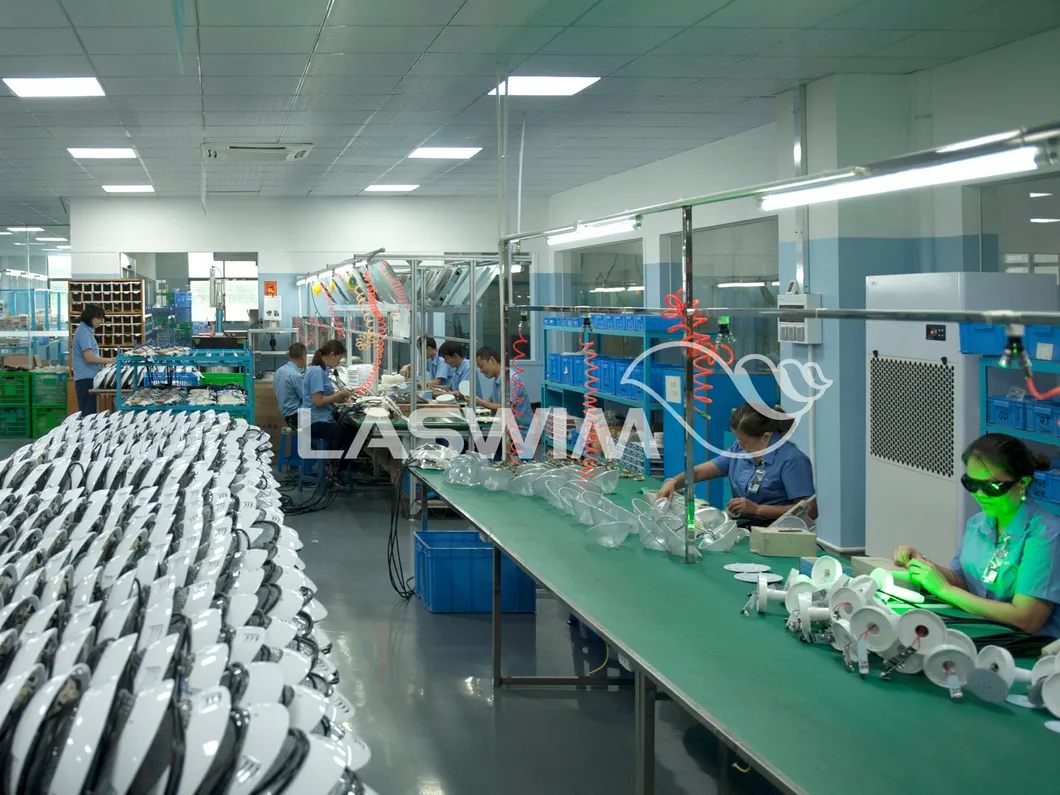

Feature Detail 1 Feature Detail 2 Feature Detail 3
Technical Specifications

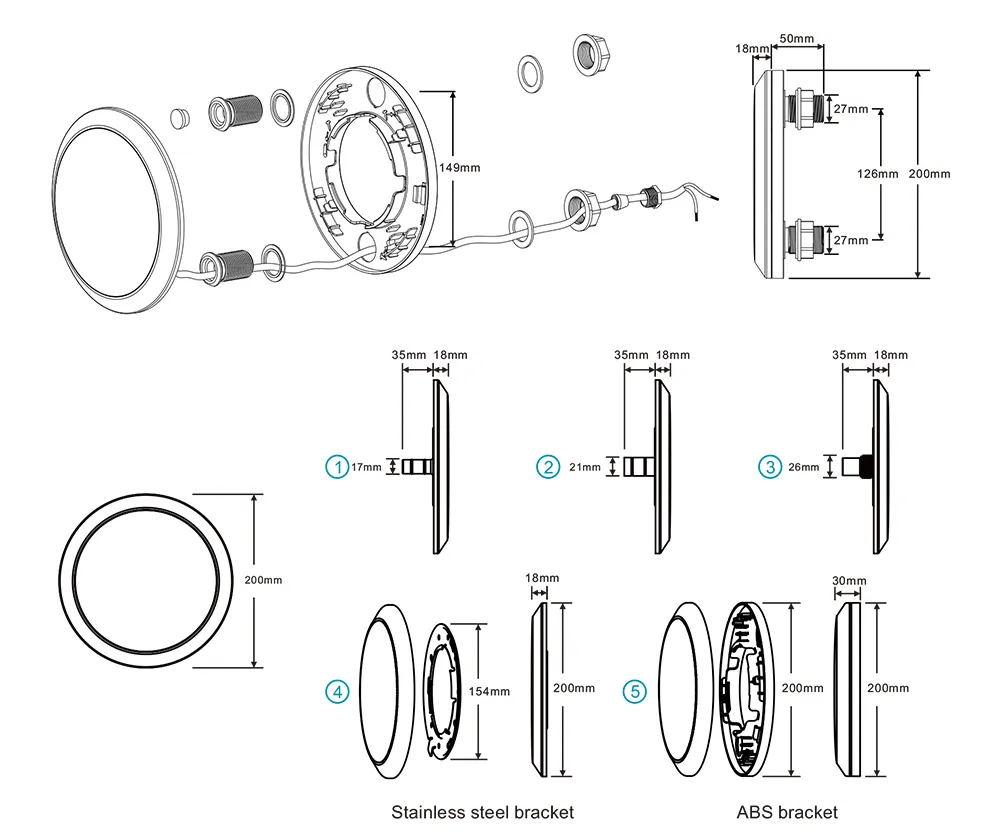

Technical Drawing
Model Power Voltage LED Qty Light Source Color Lumination (lux) Installation
WL-PE20-024JTC 24W AC12V/DC12-24 240 SMD LED RGB 1125 Wall-mounted & Wall Recessed
WL-PE20-024JTB2 24W AC12V/DC12-24 240 SMD LED Warm White 2688
WL-PE20-024JTB4 24W AC12V/DC12-24 240 SMD LED Day White 3192
WL-PE20-024JTB6 24W AC12V/DC12-24 240 SMD LED Cool White 2712
Application Scenarios

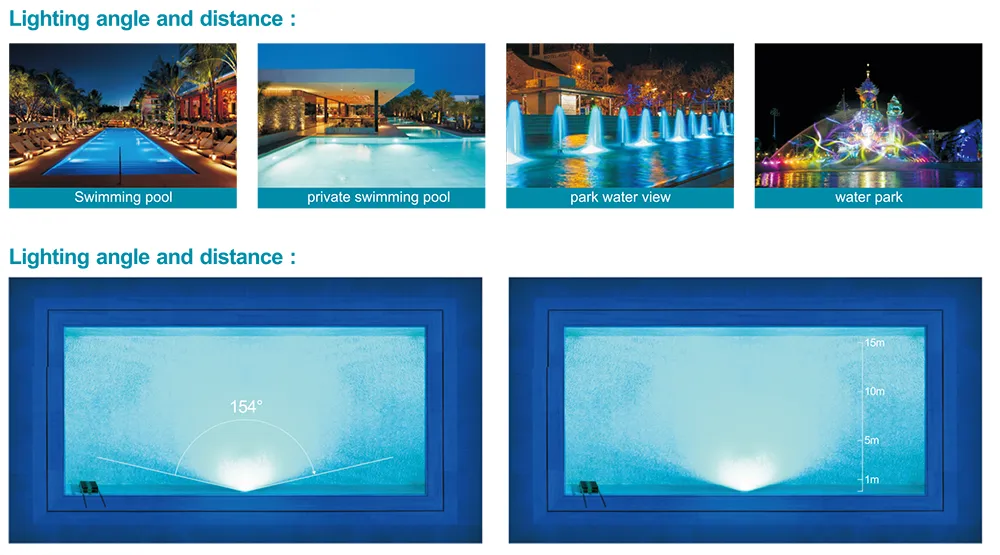

Application Scenario
Frequently Asked Questions
Q1: What is the advantage of the 115° beam angle?
The ultra-wide 115° beam angle is designed to eliminate dark spots and shadows, providing uniform and flawless illumination throughout the entire swimming pool.
Q2: How can I control the light colors and modes?
The lights are compatible with YAQ and APPLUME controllers. You can also manage colors, dimming, and music rhythm modes remotely via a dedicated smartphone APP.
Q3: Is the light protected against overheating?
Yes, it features smart safety protection including thermal dimming and overvoltage protection to prevent damage from power surges and high temperatures.
Q4: What are the installation requirements for wiring?
For AC12V setups, a 2-wire cabling system is used. For 12-24VDC setups, a 3-wire cabling system is required. Both utilize a unique communication protocol over the power cable.
Q5: Can I choose different face plate materials?
Yes, we offer both high-quality plastic and stainless steel face plates, giving you the freedom to match your pool's aesthetic requirements.
Q6: What white light color temperatures are available?
We provide three white light options: Cold White (6500K), Daylight White (4000K), and Warm White (2700K).
