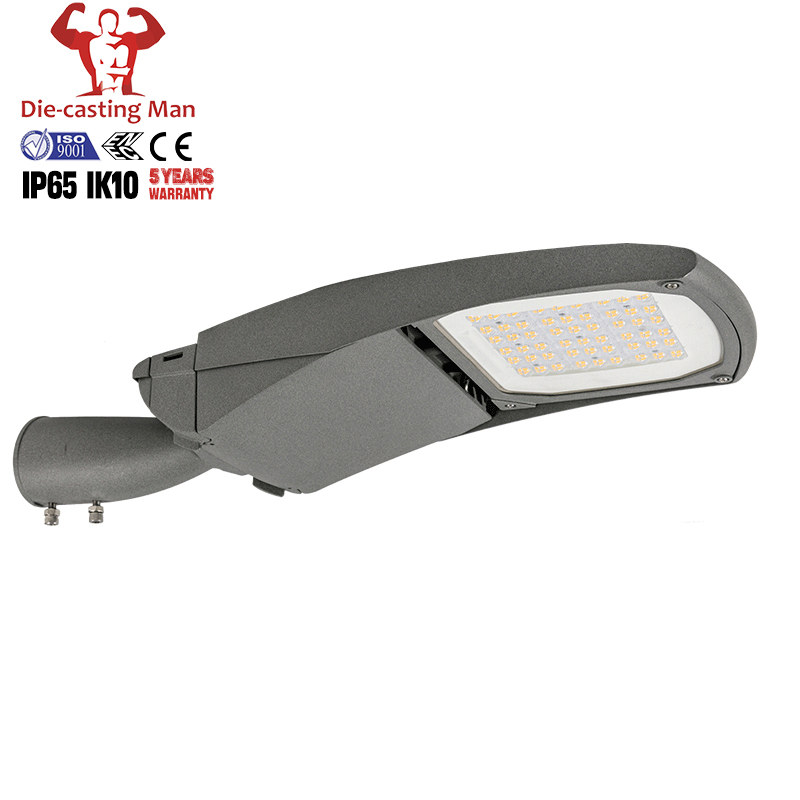

Dali Light Price Zhaga Sensor Luminaire Smart Outdoor LED ENEC Street Light
Dali Light Price Zhaga Sensor Luminaire Smart Outdoor LED ENEC Street Light
Dali Light Price Zhaga Sensor Luminaire Smart Outdoor LED ENEC Street Light
Dali Light Price Zhaga Sensor Luminaire Smart Outdoor LED ENEC Street Light
Dali Light Price Zhaga Sensor Luminaire Smart Outdoor LED ENEC Street Light
1 / 5
Dali Light Price Zhaga Sensor Luminaire Smart Outdoor LED ENEC Street Light
Dali Light Price Zhaga Sensor Luminaire Smart Outdoor LED ENEC Street Light
Dali Light Price Zhaga Sensor Luminaire Smart Outdoor LED ENEC Street Light
Dali Light Price Zhaga Sensor Luminaire Smart Outdoor LED ENEC Street Light
Dali Light Price Zhaga Sensor Luminaire Smart Outdoor LED ENEC Street Light

Dali Light Price Zhaga Sensor Luminaire Smart Outdoor LED ENEC Street Light

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Specifications
Model NO.
YASL-25-100M
Body Material
Aluminum
Lamp Power
100W
Input Voltage
AC90-305V
Average Life
50000h
IP Rating
IP66
Certification
CE, RoHS
Impact Protection
Ik08/09/10
CRI
Ra >70
Installing Ways
Vertical and Horizontal
Product Description & Advantages

LED Street Light YASL-25

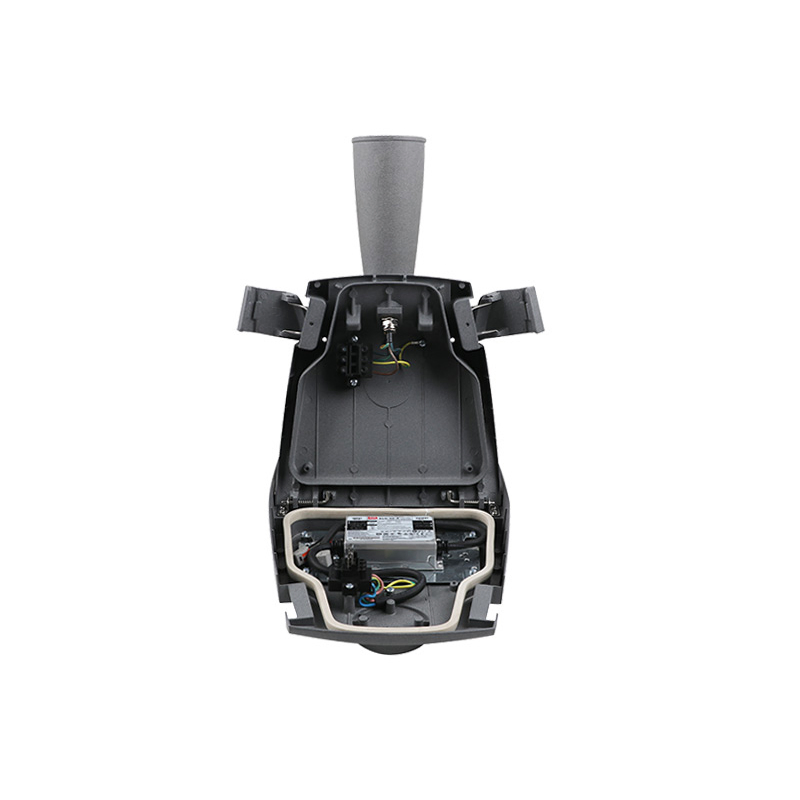

Housing made of corrosion resistant pressure die-cast aluminium (seawater resistant powder-coated). Pole-top fixing with integrated cable routing and stainless steel screws. Tilt angle can be adjusted and locked in 15 degree steps featuring angular scale. Cover clear tempered glass. Tool-free maintenance / replacement with disconnect plug.

  • Adjustable and lockable in 15° steps (-15° to +15°)
  • Smart lighting compatible: Dali, Dali Zhaga, 1-10V, PWM
  • NEMA sockets available for light management sensors
  • Automatic power interruption when housing is opened
  • Integrated surge protection up to 10 kV or 20KV
  • Operating range: -40°C to +45°C

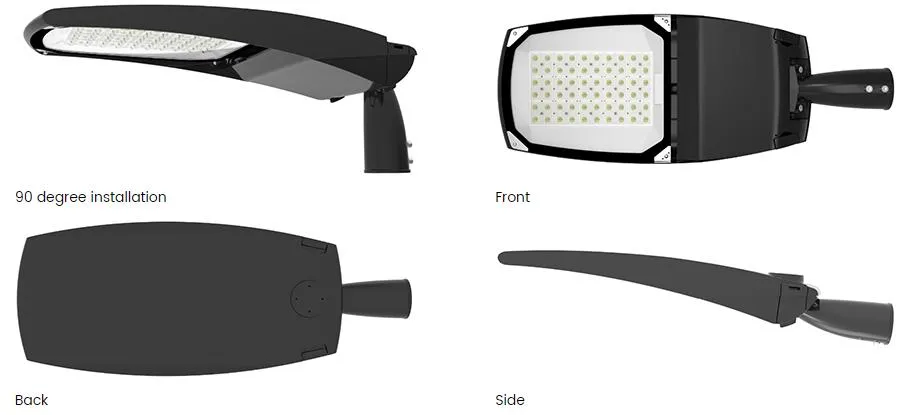

LED Street Light Specification
Technical Specifications
Product Code Input Wattage Luminous Flux Net Weight Packing Size (mm)
YASL-25-40M30/40/50/60w3900-7500lm2.9kgs600*260*165
YASL-25-100M80/100/120w7800-15000lm3.8kgs680*270*160
YASL-25-150M150/180/200w15600-22500lm5.7kgs820*320*160
YASL-25-240M240/300w26000-36000lm7.2kgs920*370*180

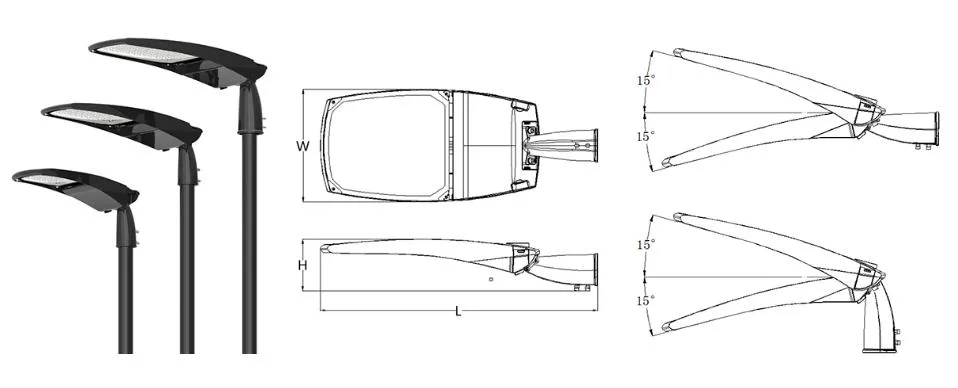

Installation Details
Detailed Photos

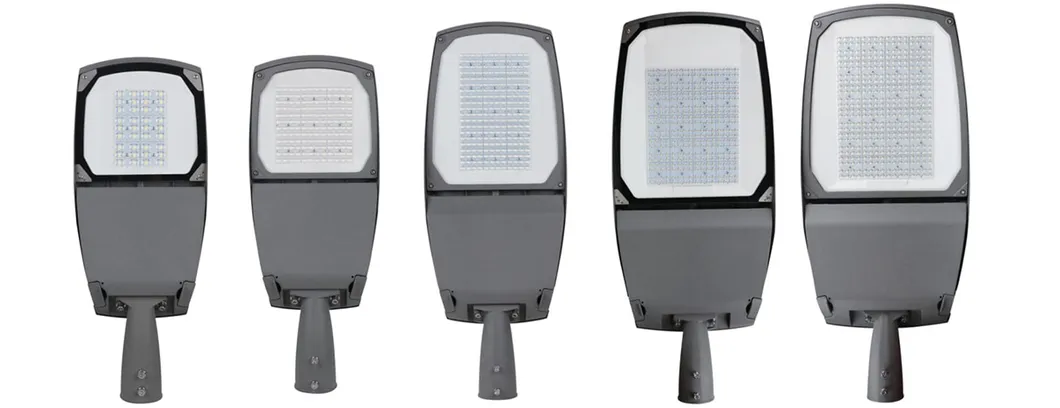

Detail 1

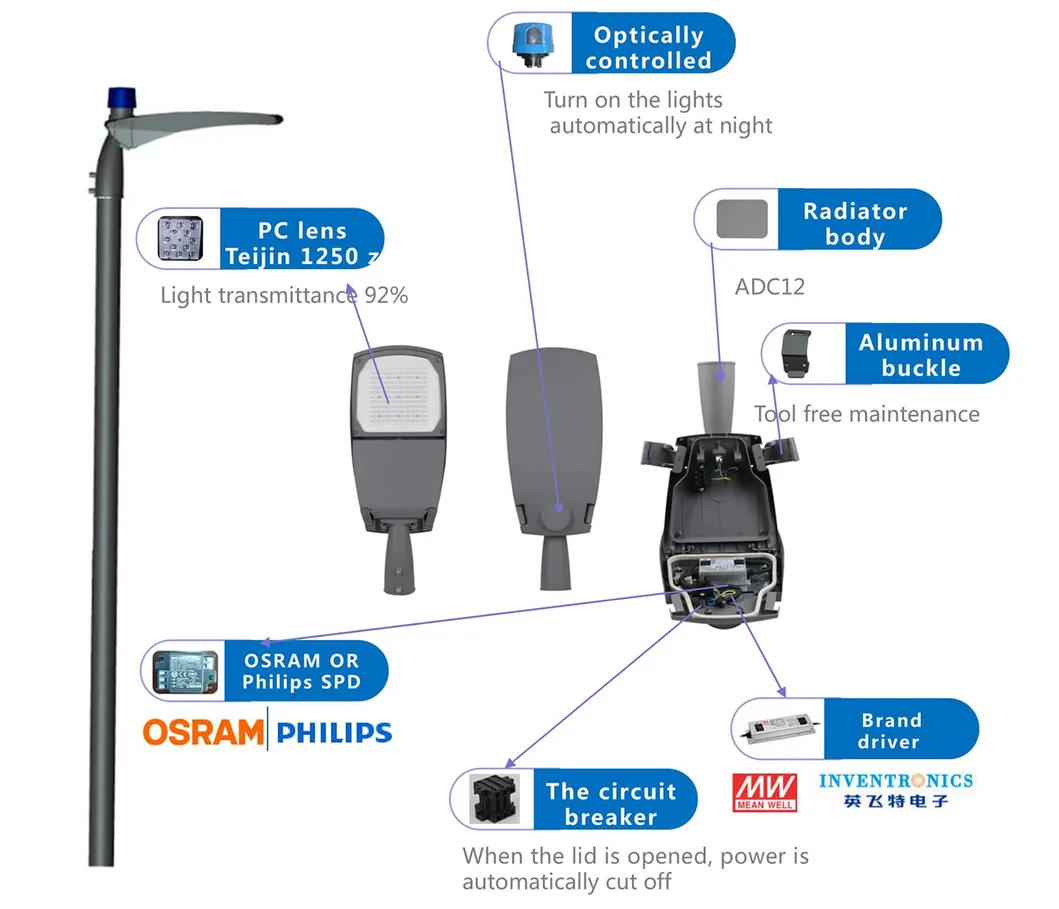

Detail 2

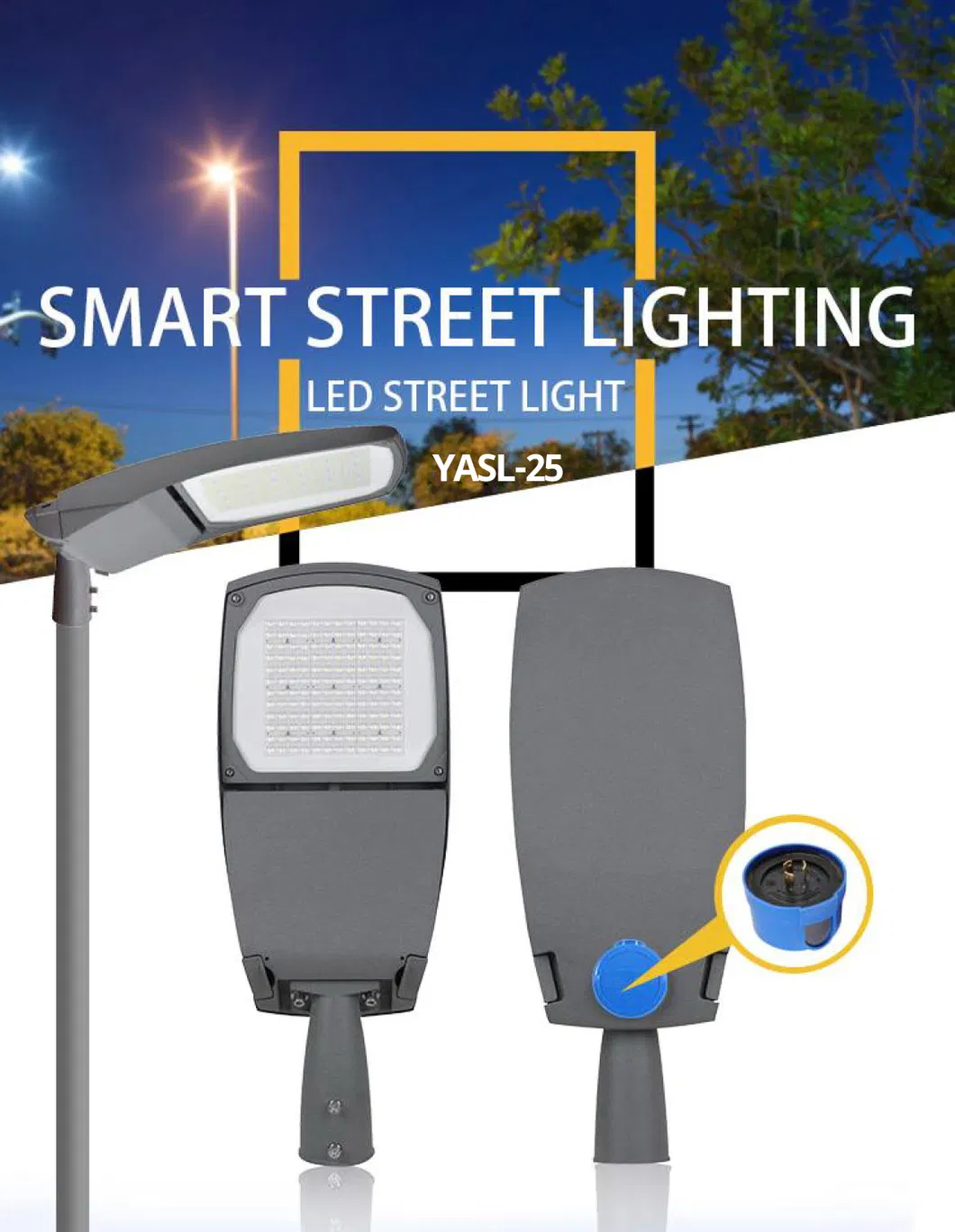

Detail 3

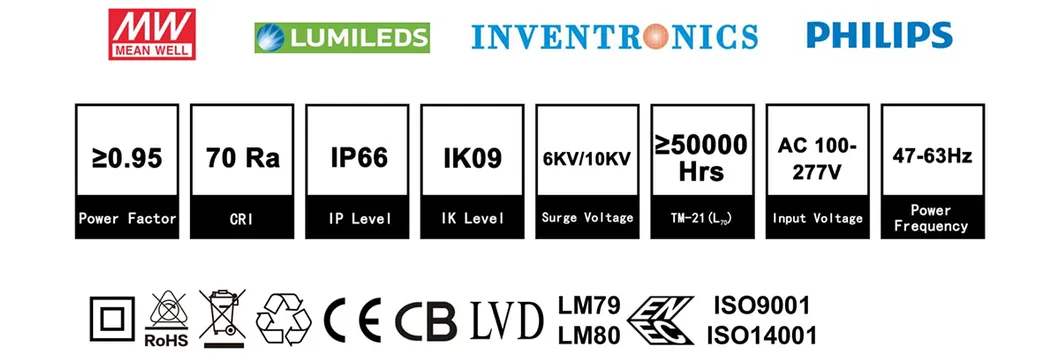

Detail 4

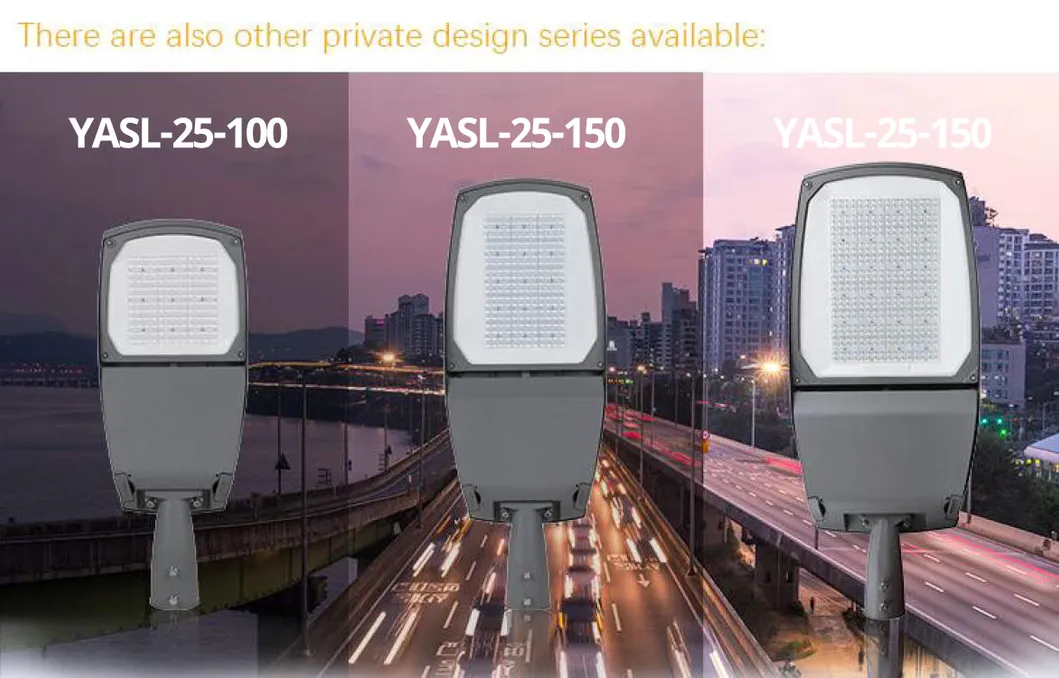

Detail 5

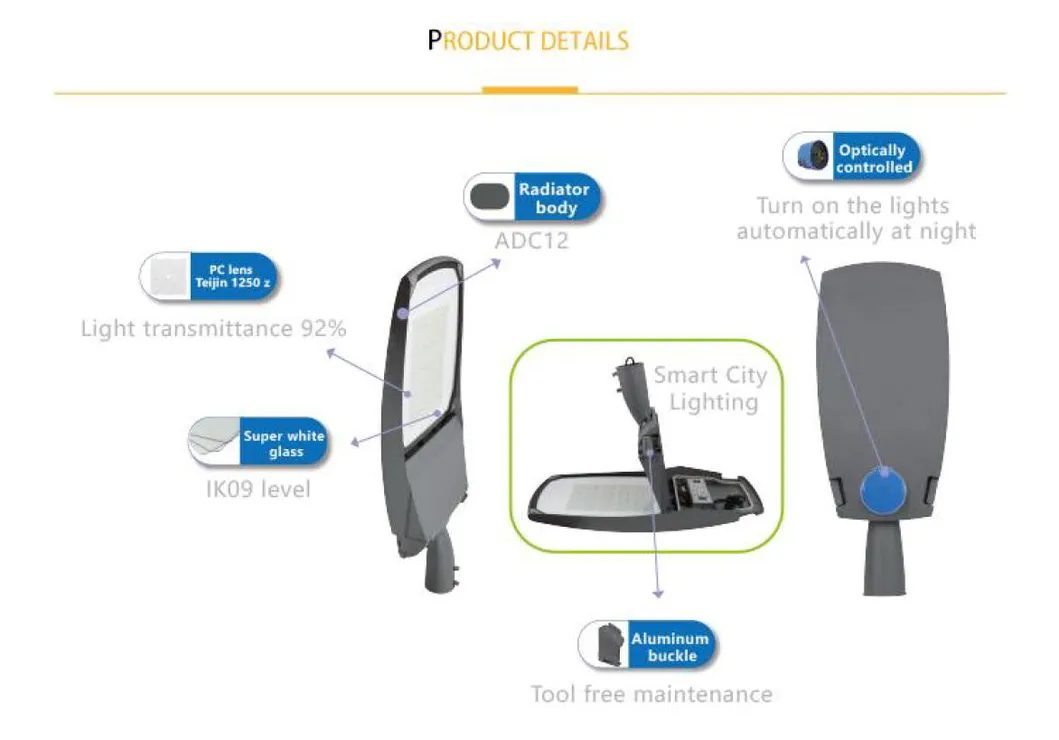

Detail 6
Profile

Established in 1996, the manufacturer specializes in lighting design, development, production, and testing. Offering a superior range of street lights, high bay, and die-casting products, services include full production or SKD supply. Products are designed with a focus on being practical, affordable, and reliable, meeting all EU requirements and passing rigorous performance tests in recognized laboratories.

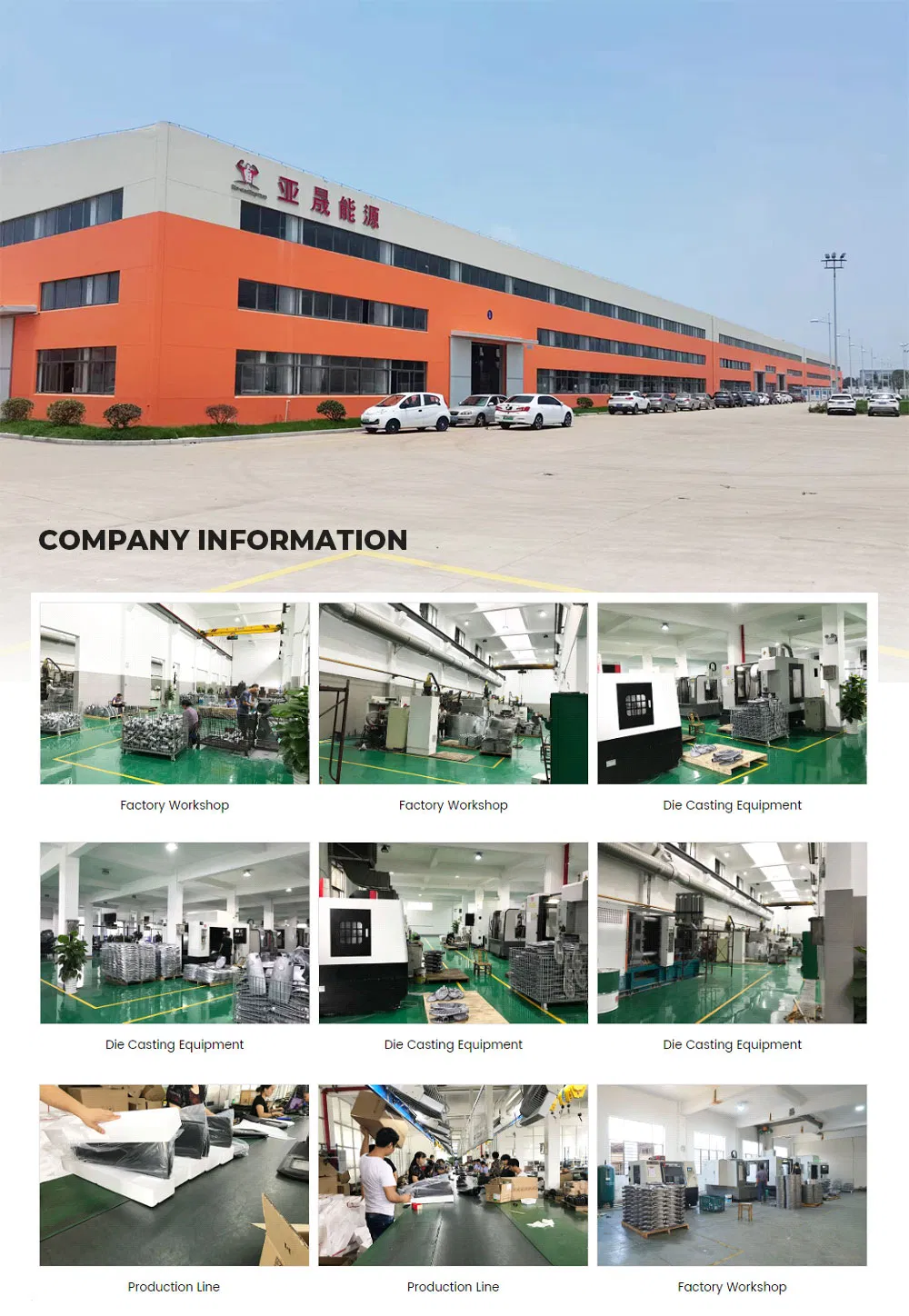

Factory 1
Factory 2
Factory 3
Frequently Asked Questions
1. What are your MOQ requirements?
1-5 pieces for samples. 100 pieces for mass production. We can accept small quantities for your first order.
2. Can you customize the LED Chips and Drivers?
Yes, we can use specific LED chips and any brand of LED driver that you require for your project.
3. What is the guarantee on your products?
We offer a 5-year guarantee for our customers, with a rated life of 50,000 hours.
4. Can I put my logo on the housing?
Yes. Options include screen printing (no MOQ) or die-casting the logo directly onto the house (MOQ 1000 pieces).
5. Do you sell empty light housings?
Yes, we provide empty housings for customers who prefer to assemble their own components.
6. How do you handle defective goods?
For occasional defects, we send free replacements with your next order. If the rate exceeds 1%, we provide free replacement components like drivers, SPD, or PCBs.
