Parking Lot Znkj LED Street Light Housing Garden Lights with CE

Still deciding? Get samples of $ !
Request Sample

Product Description

i

Basic Specifications

Model NO. ZN-LEDLD-01 Lamp Body Material Aluminum
Power 60-100W IP Rating IP65 / IP66
Application Square, Highway, Garden, Parking Lot Certification CCC, CE, CQC, RoHS
Input Voltage 100-240V LED Chips Brand CREE / Osram / Puri
Operating Temp -40ºC~+70ºC With Light Source Included

Detailed Parameter Table

Product Model ZN-LD-04-LED-50W-200W Power Brand Meanwell, Maoshuo, Songsheng
Lighting Effect 110-150LM/W Intelligent System PLC / Lora / Mobile Phone Control
Warranty 2-5 Years Power Efficiency >0.97
Dimmable 1-10V / PWM Optional Surge Protection 10KV
Beam Angle T2 / T3 / T4 Color Temp 3000K, 4000K, 5000K, 6500K
📏

Dimensions & Packaging

Model Power Product Size (mm) Net Weight Package Size (mm)
ZN-LD-04-LED60W 60W 540*290*100 2.7kg 580*320*100
ZN-LD-04-LED150W 90W-150W 640*290*100 3.3kg 670*320*100
ZN-LD-04-LED200W 120W-200W 740*290*100 3.9kg 760*320*100
🖼

Product Gallery

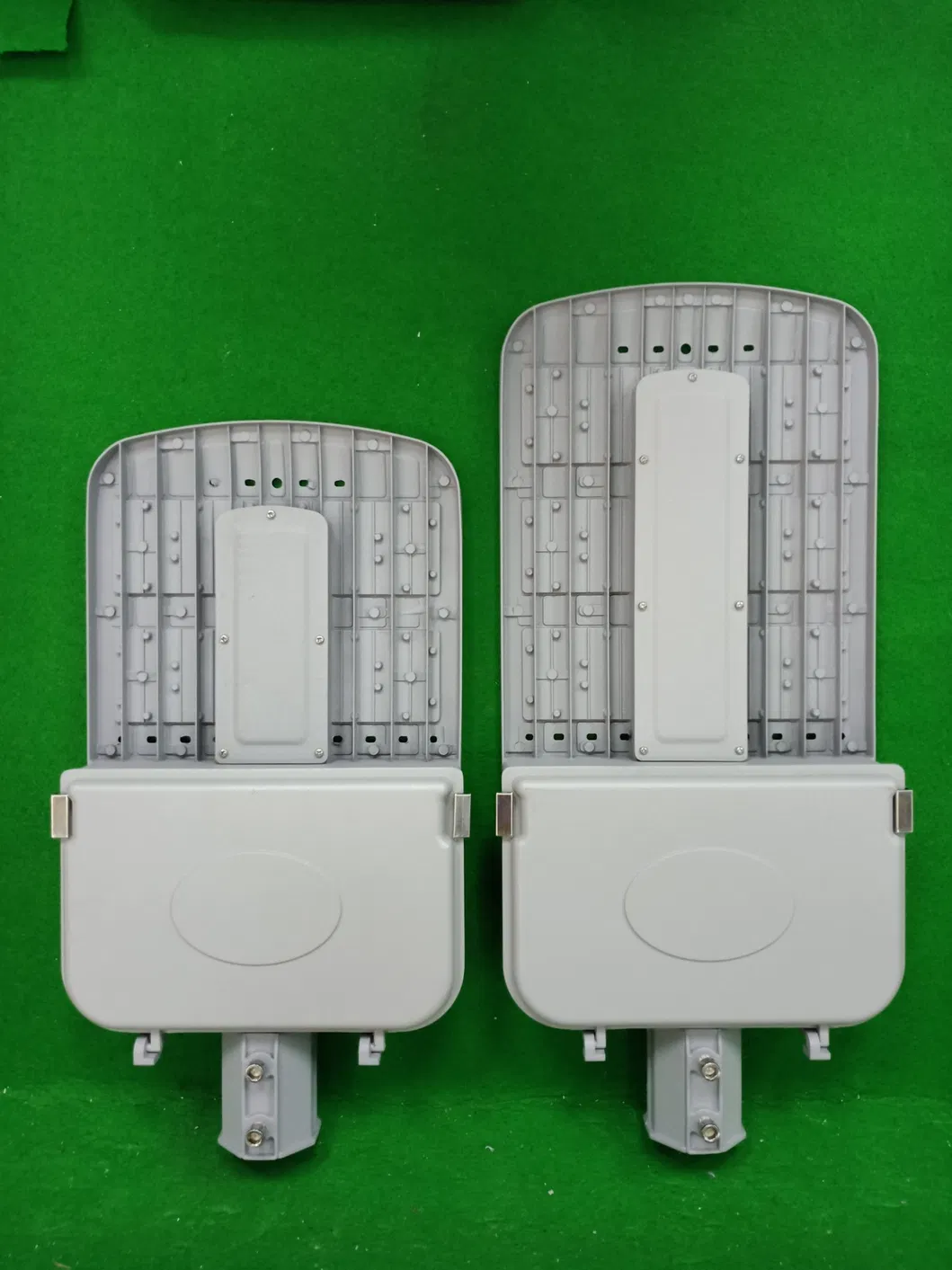

LED Street Light 1

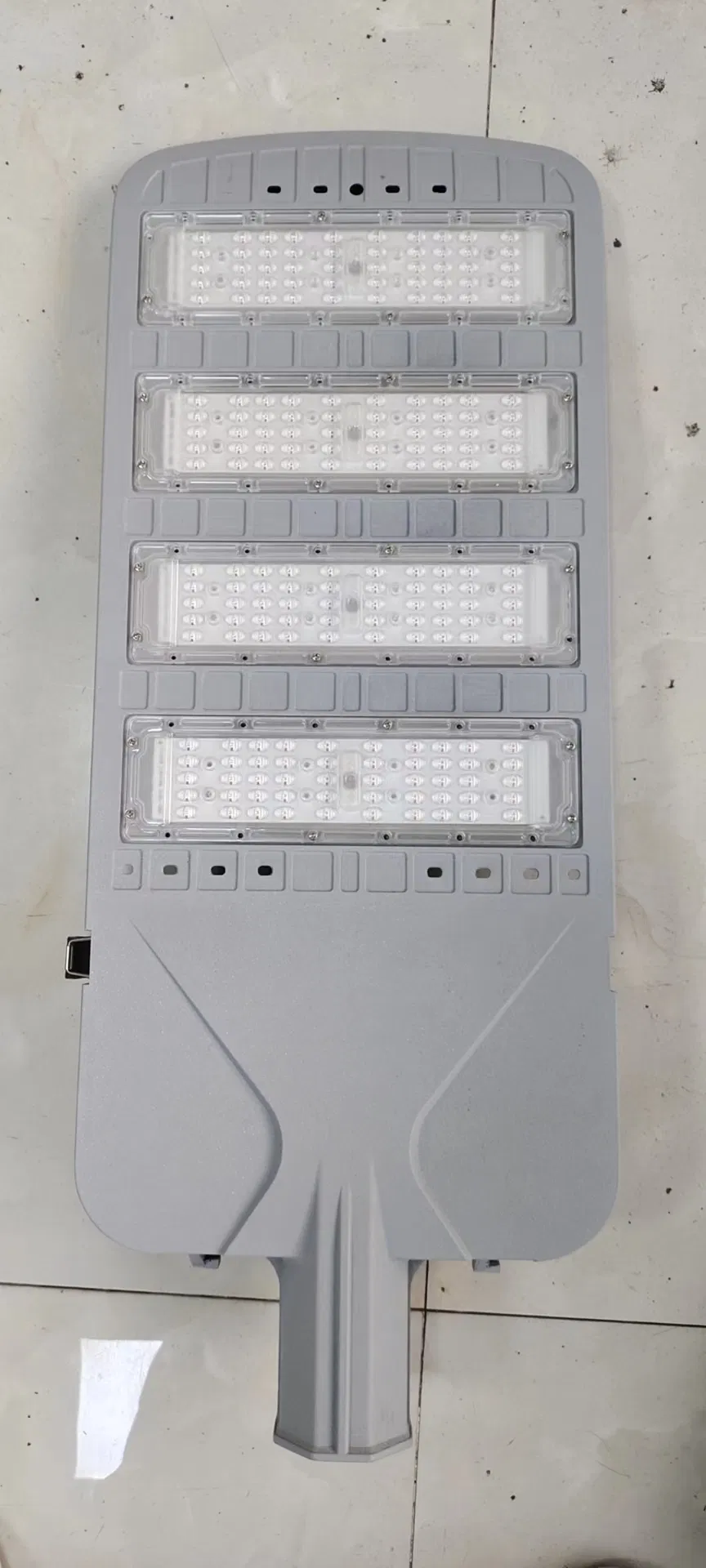

LED Street Light 2

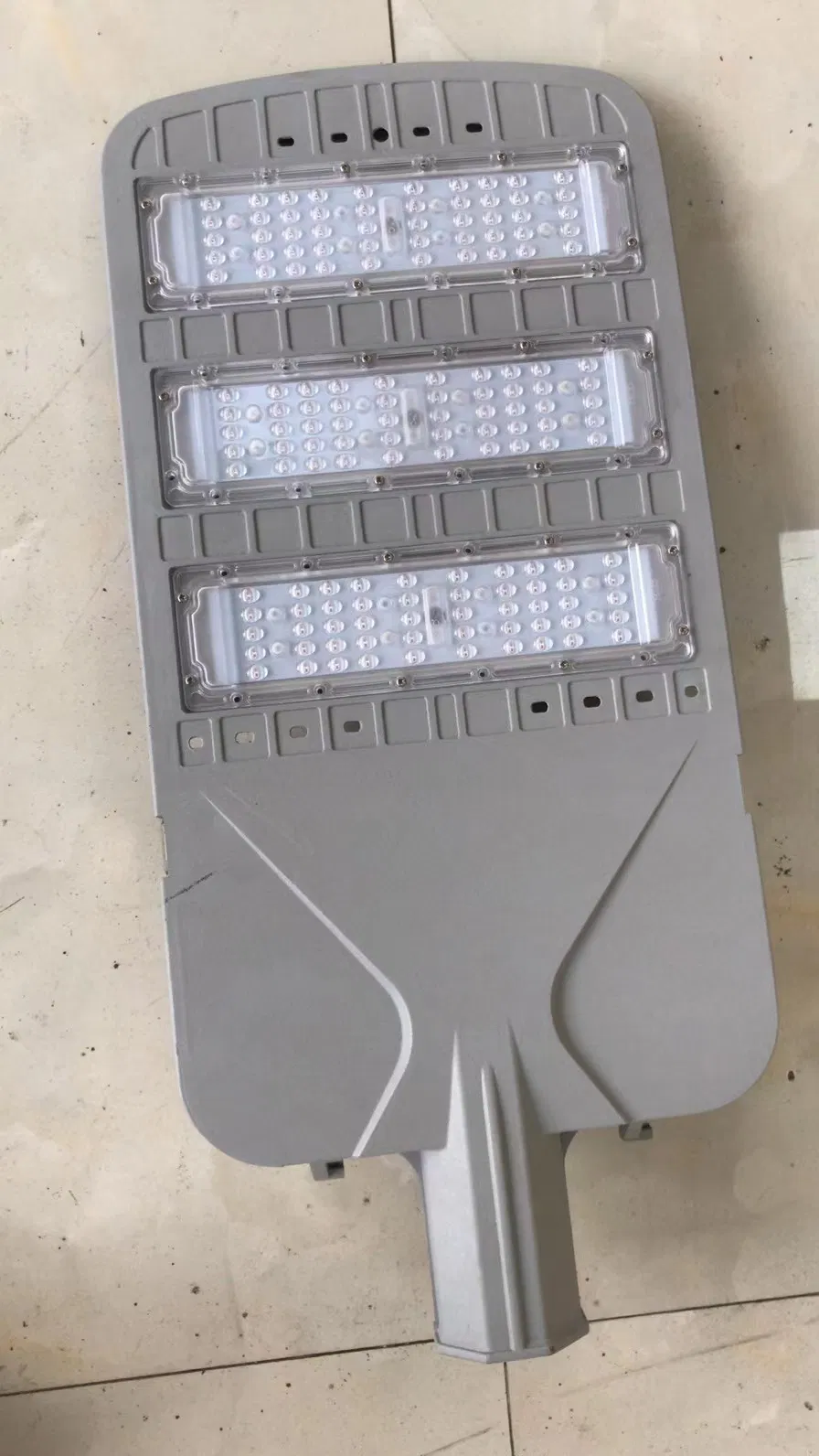

LED Street Light 3

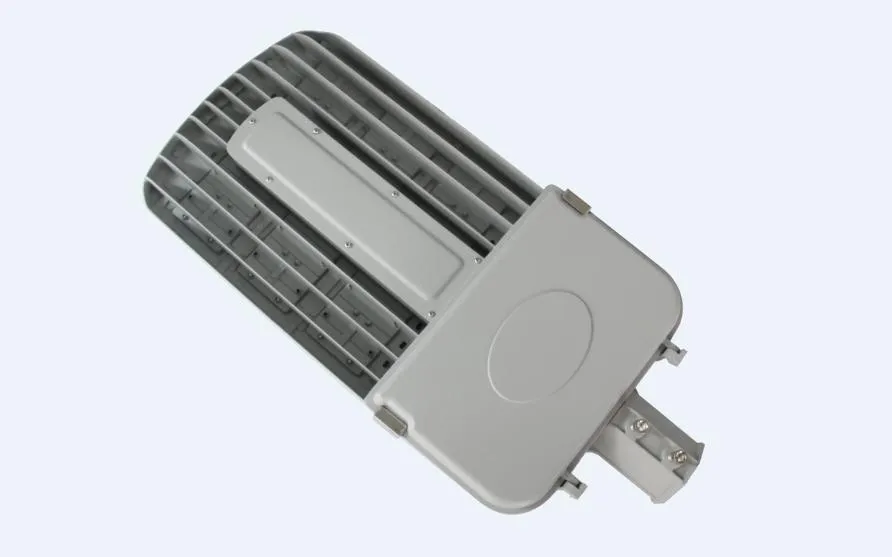

LED Street Light 4

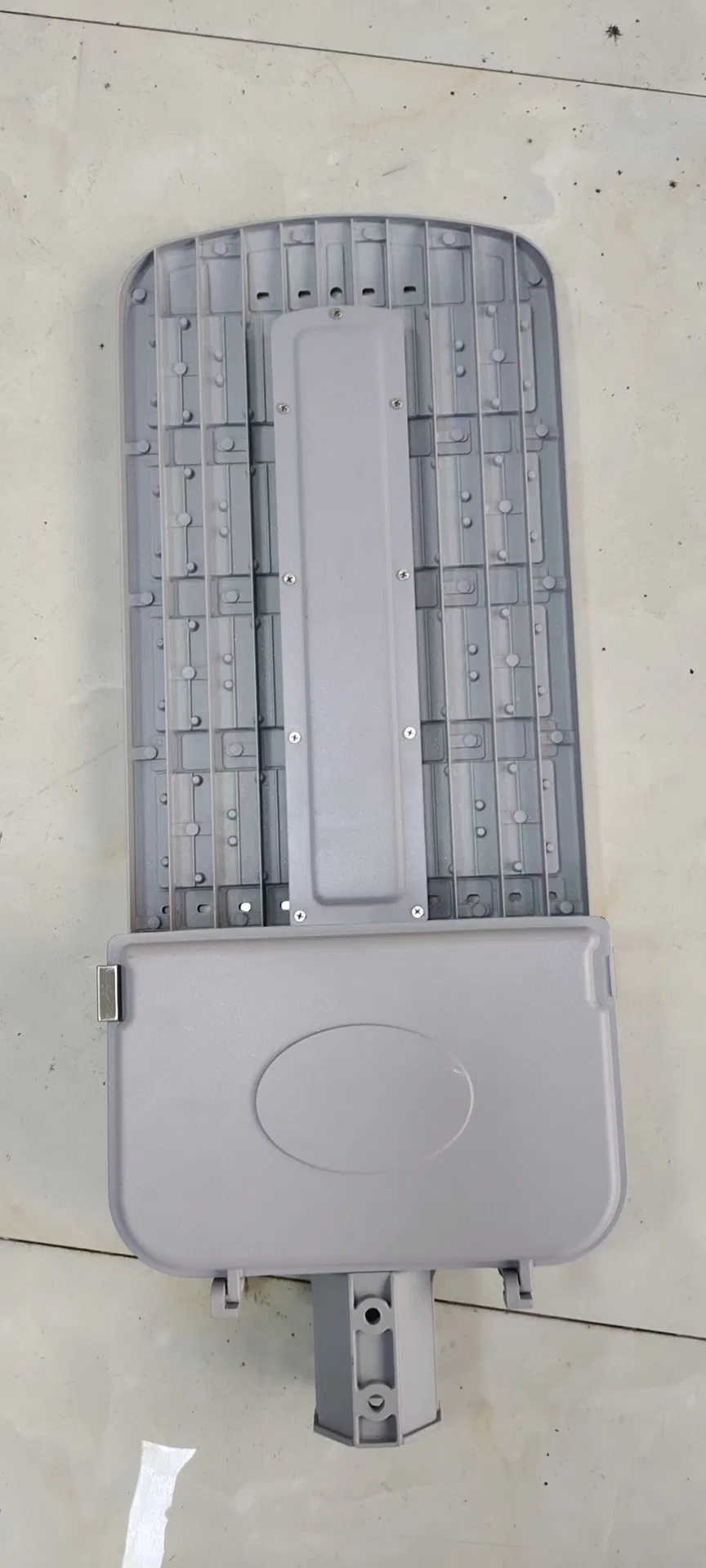

LED Street Light 5
LED Street Light 6

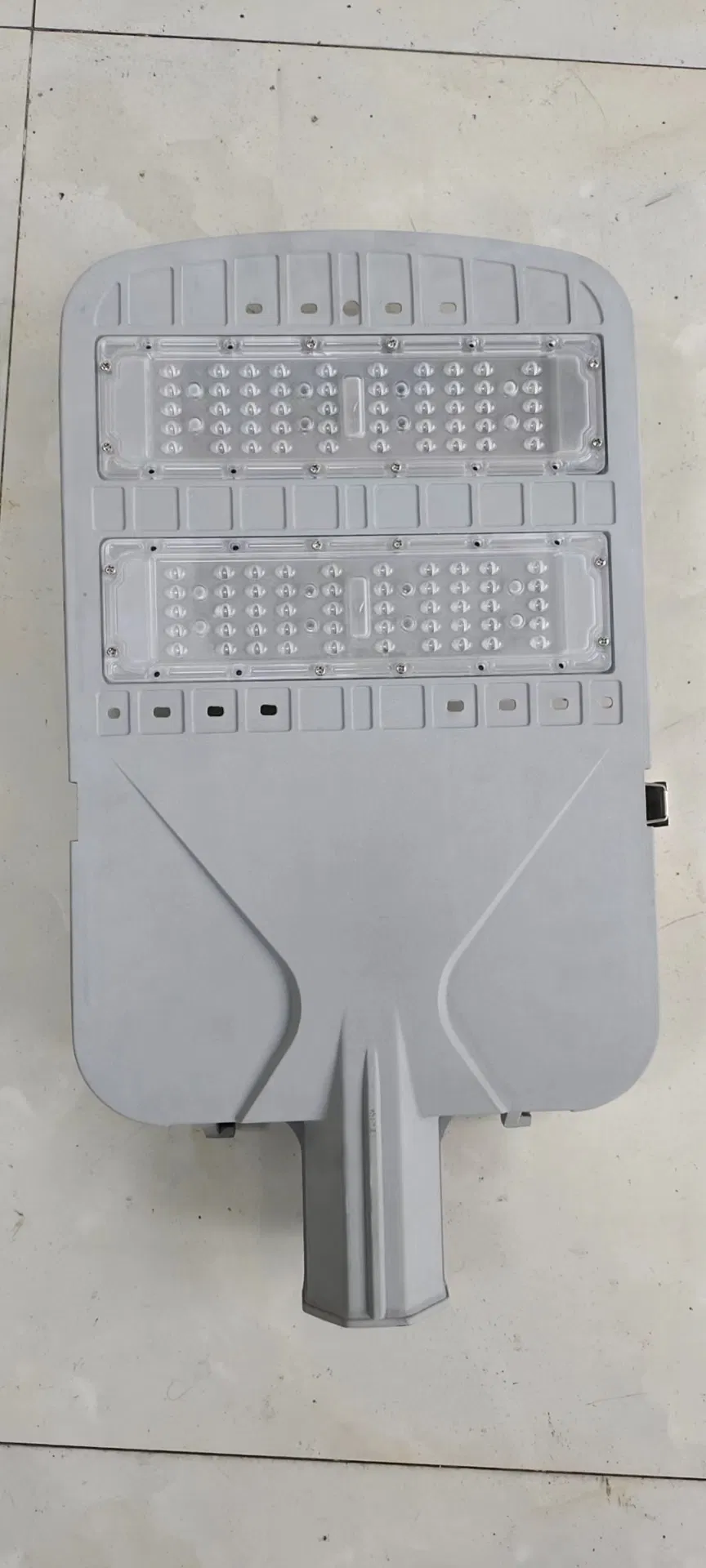

LED Street Light 7
LED Street Light 8

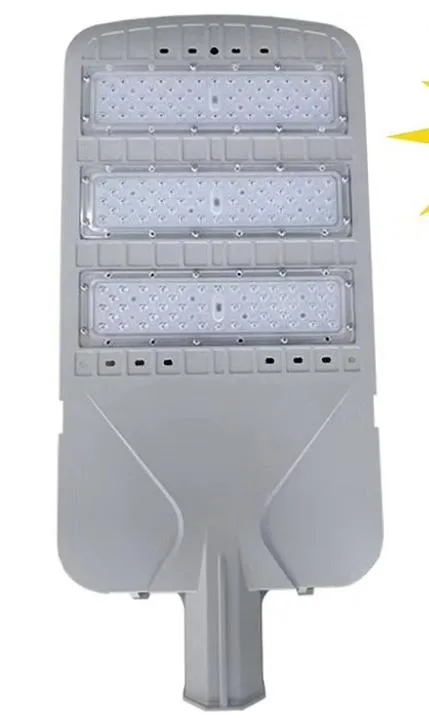

LED Street Light 9

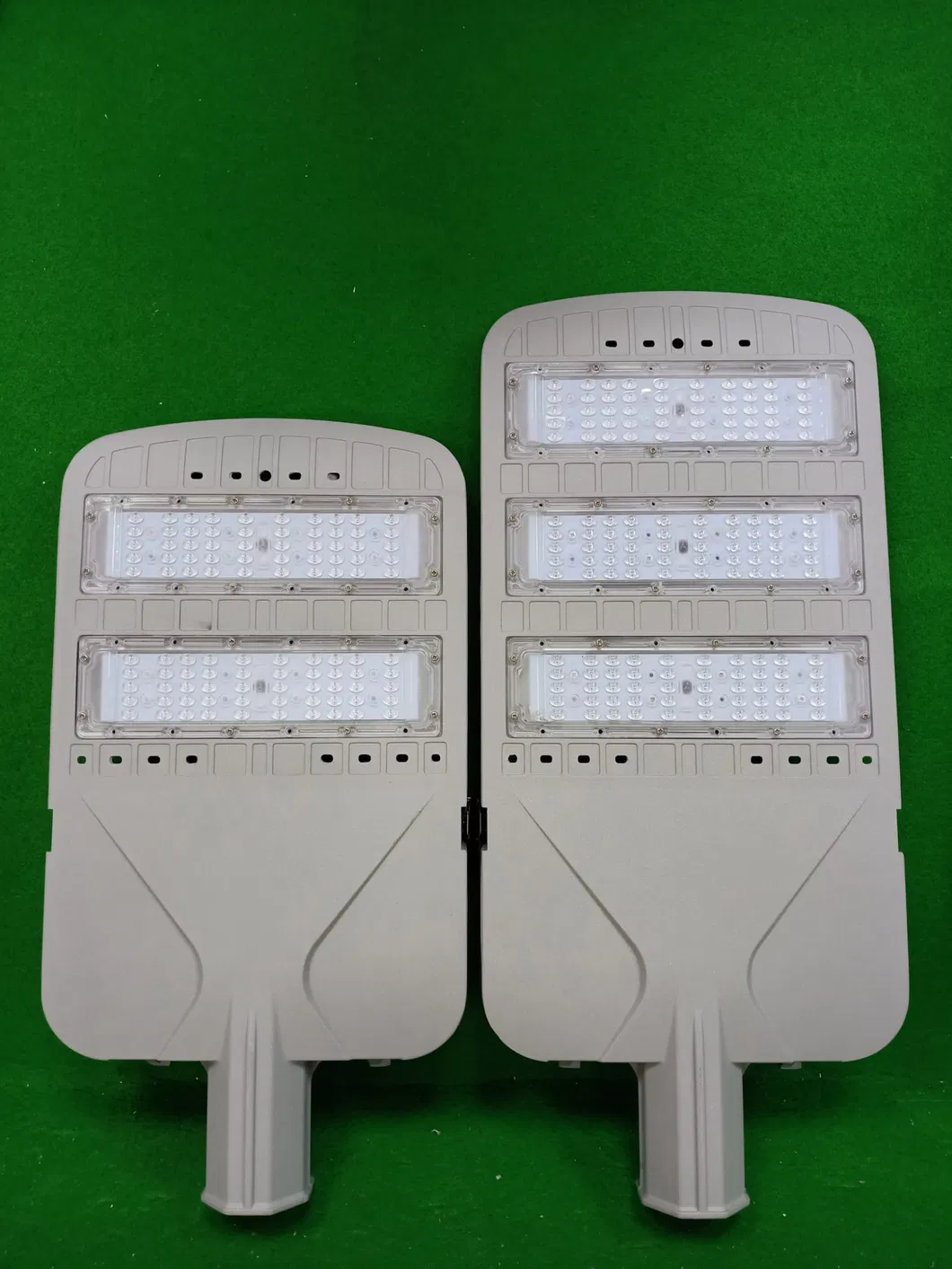

LED Street Light 10

Features & Advantages

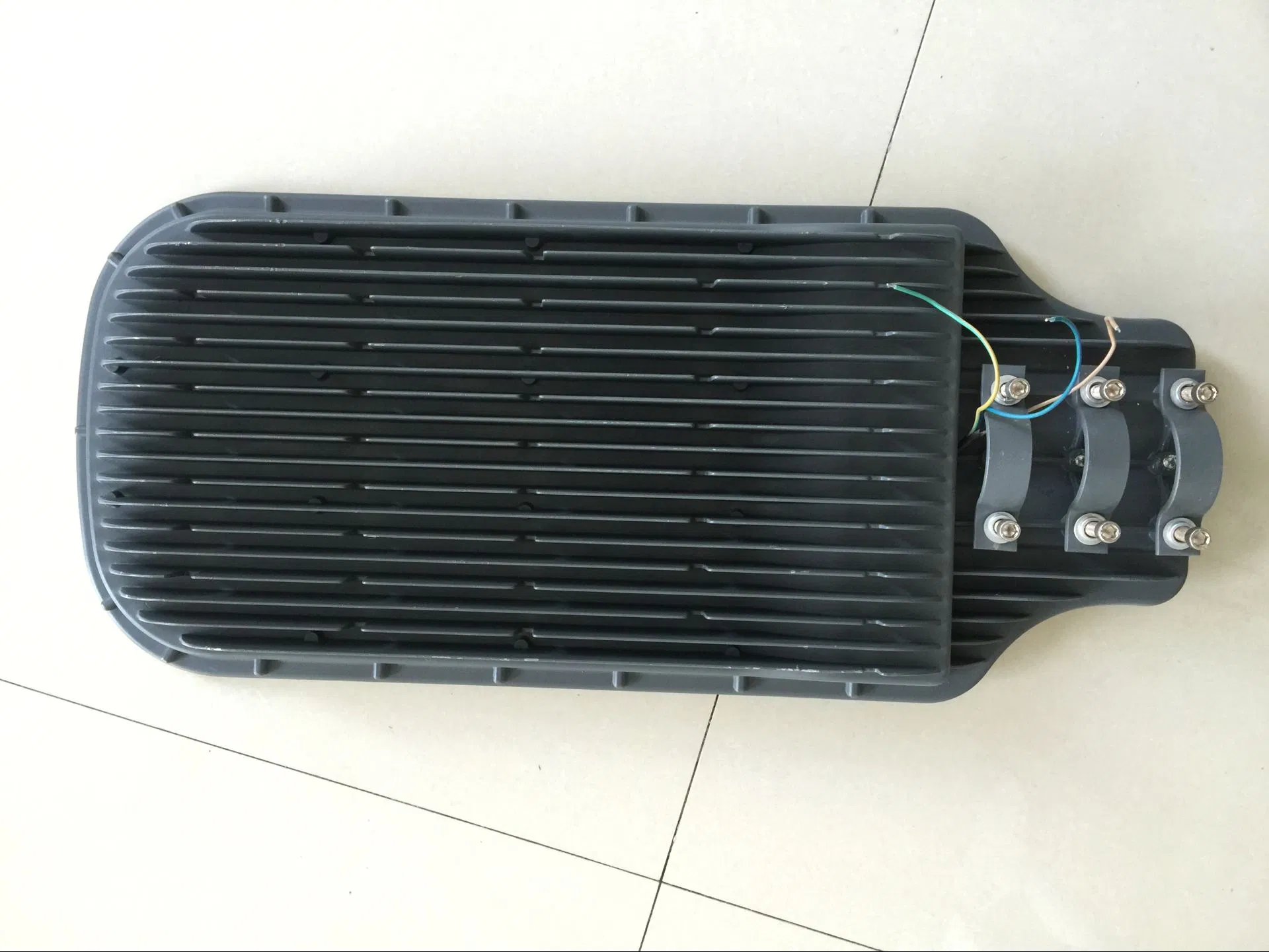

Adjustable angle design to accommodate different lamp poles; die-cast aluminum body for efficient heat dissipation.
Four power models available ranging from 60W to 200W to meet various lighting requirements.
High brightness 3030 SMD LED chips with 150 LM/Watt efficiency and Meanwell drivers.
Certified durability: IP66, CE, RoHS with a service life of 50,000 hours and a 5-year warranty.
Smart controls: Automatic dawn/dusk switching and Lora intelligent system for group or area control.
📍

Scope of Application

Urban expressways, main roads, welcome roads, large public buildings, commercial centers, and municipal engineering projects.

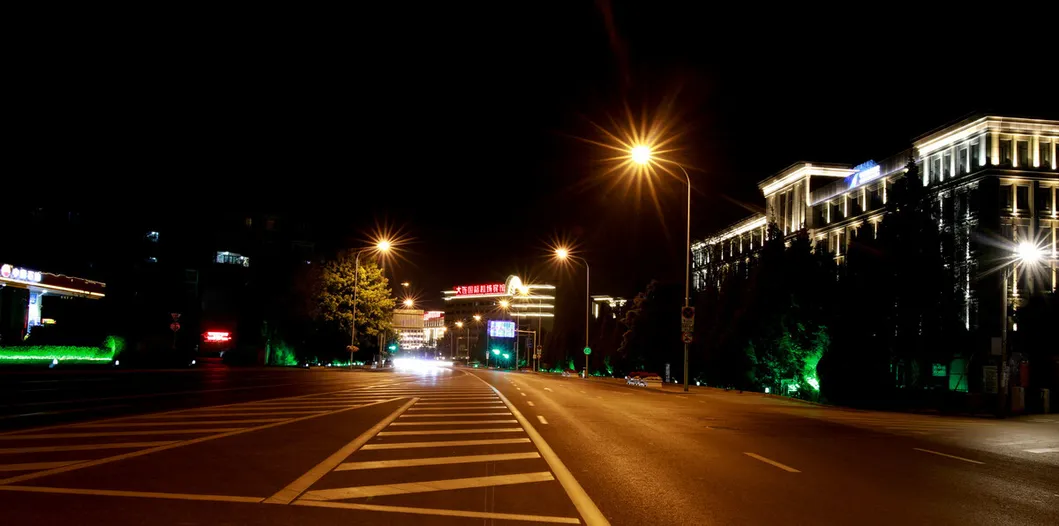

Application 1

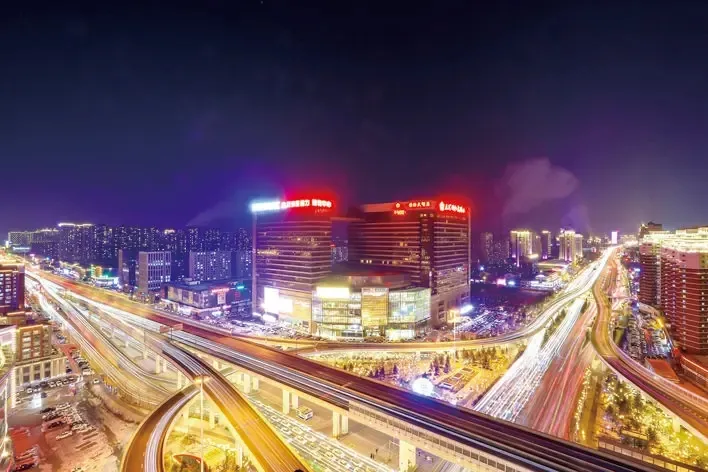

Application 2

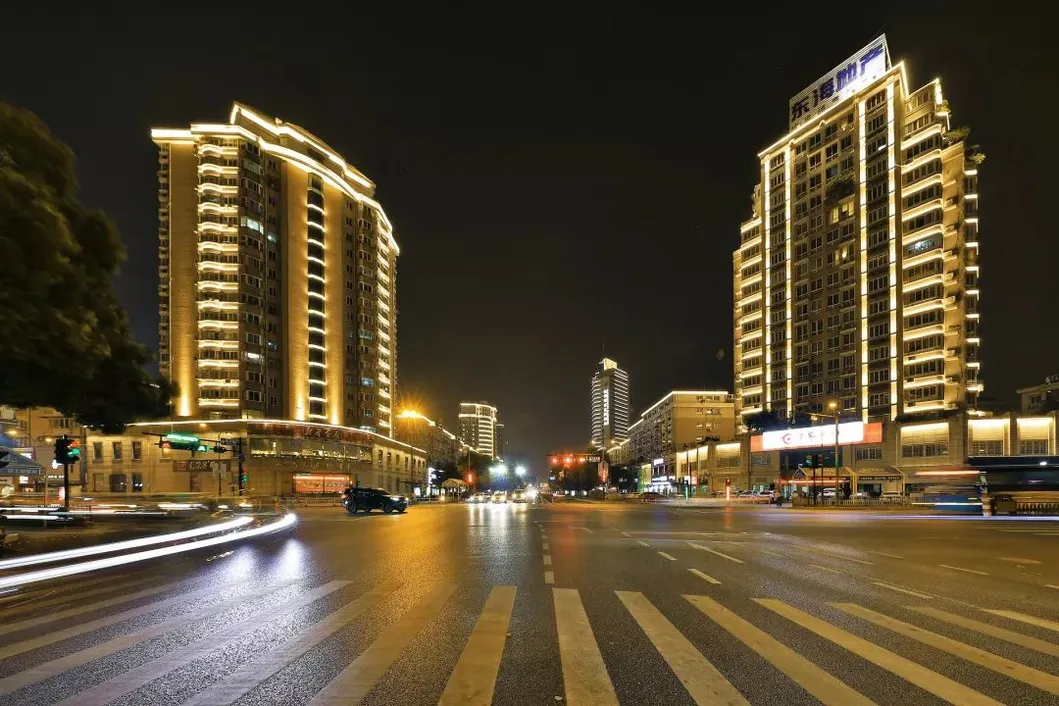

Application 3

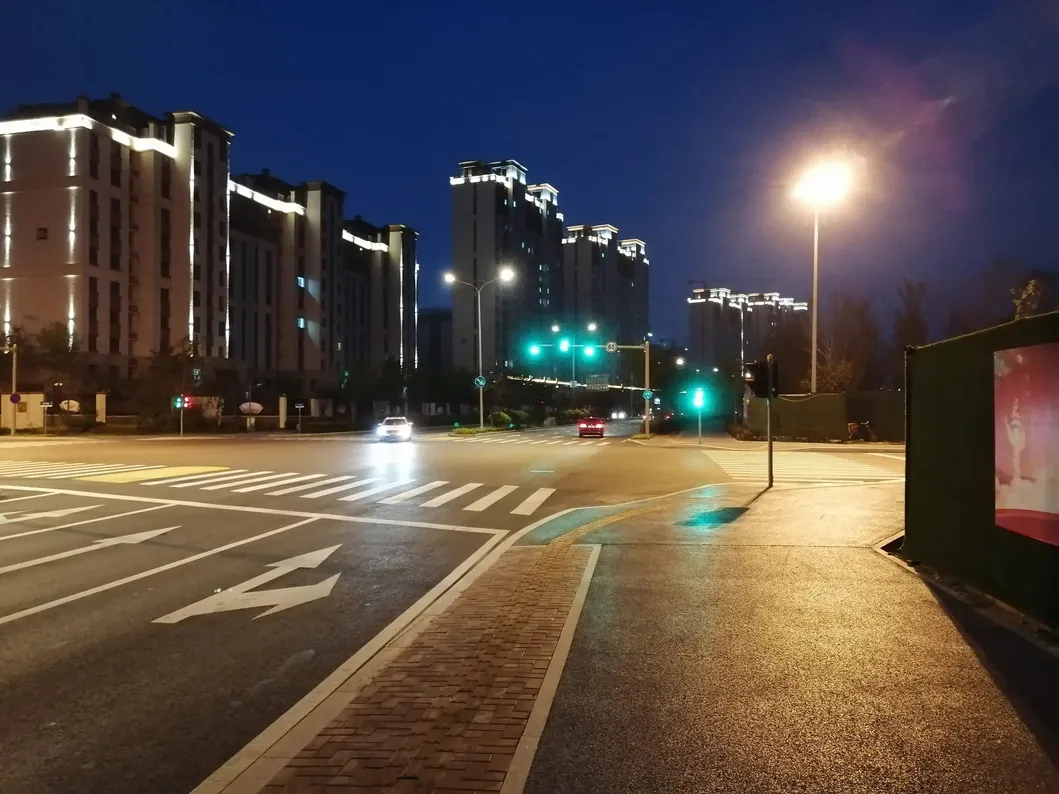

Application 4
?

Frequently Asked Questions

What is the lifespan of these LED street lights?
The lights are designed for a long service life of over 50,000 hours, supported by high-quality aluminum heat dissipation.
Are the lights suitable for extreme weather?
Yes, with an IP66 protection rating and an operating temperature range of -40ºC to +70ºC, they are built for harsh outdoor environments.
What kind of warranty is provided?
We provide a standard 2 to 5-year warranty depending on the specific driver and chip configuration selected.
Can these lights be integrated into smart city systems?
Absolutely. They support Lora intelligent systems, PLC, and mobile phone controls for area-wide management.
What are the available power options?
We offer a wide range of power options from 50W up to 200W to suit different pole heights and road widths.
Is the surge protection built-in?
Yes, the lights include 10KV surge protection to ensure stability during electrical fluctuations or storms.
