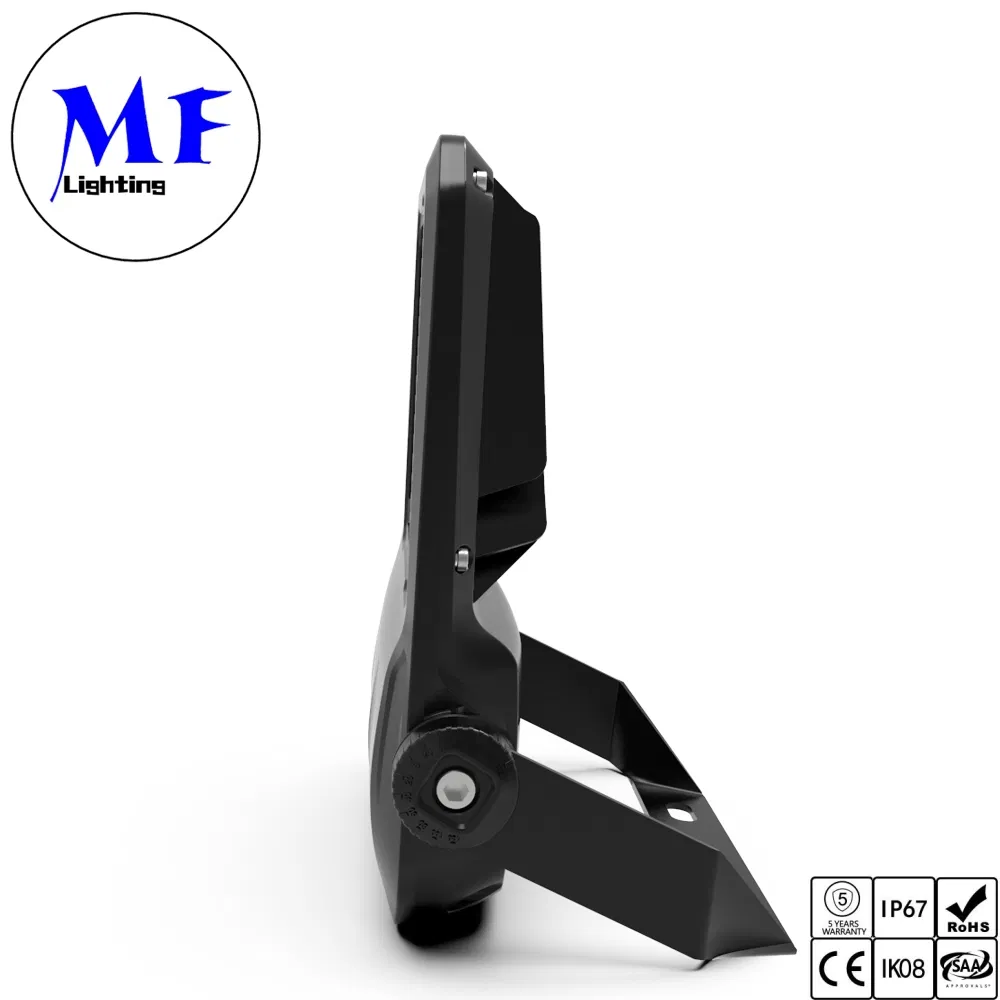

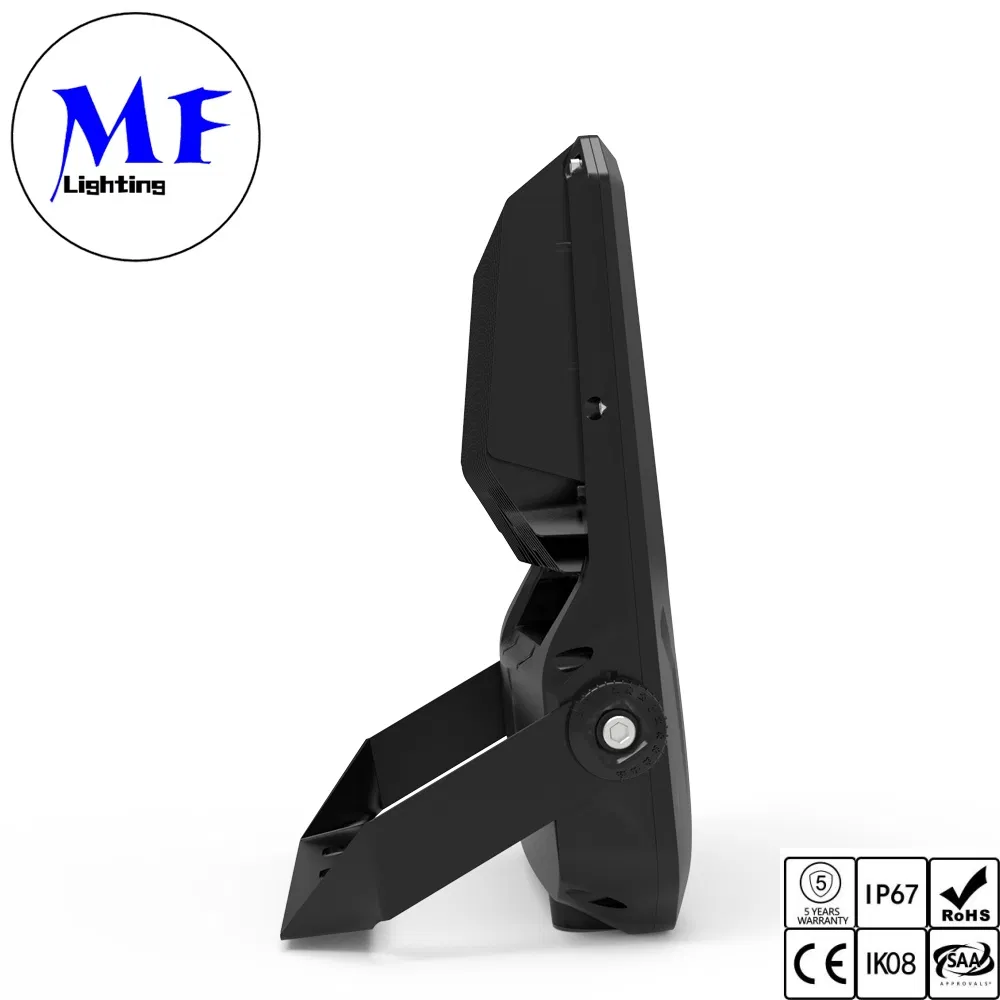

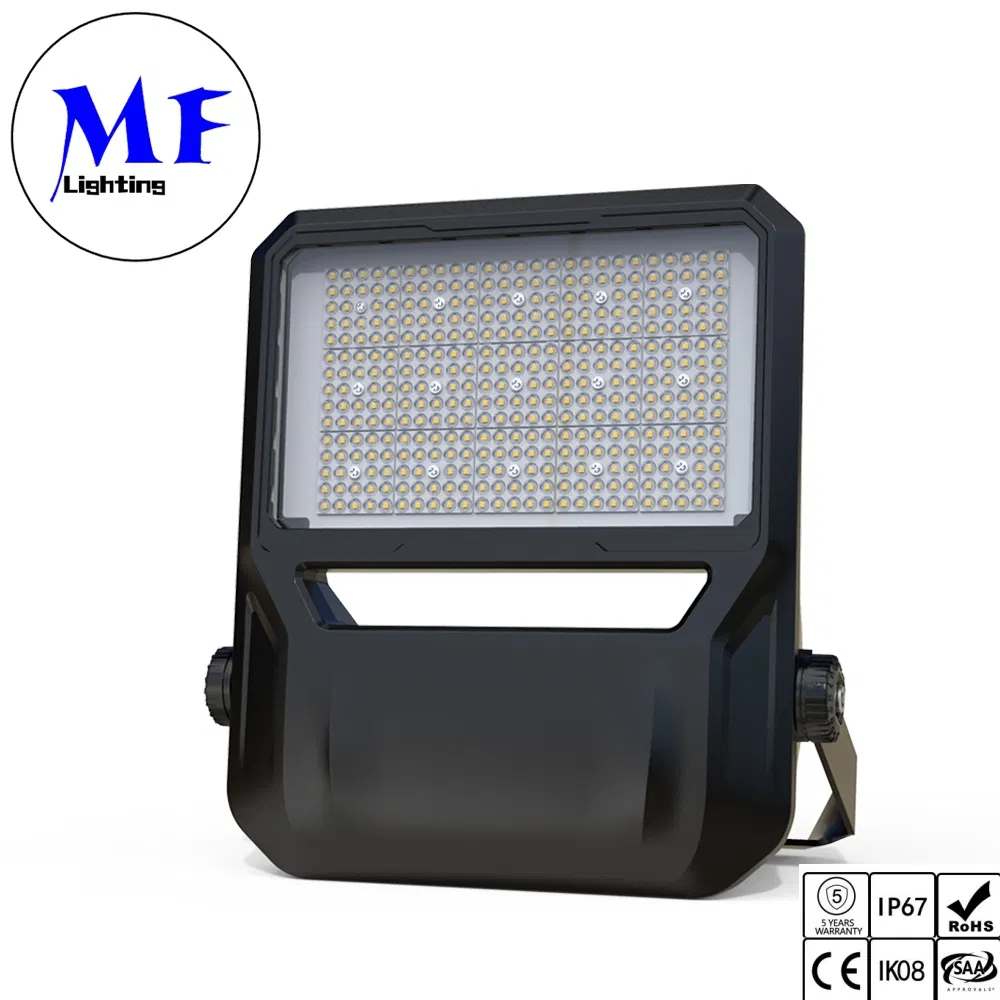

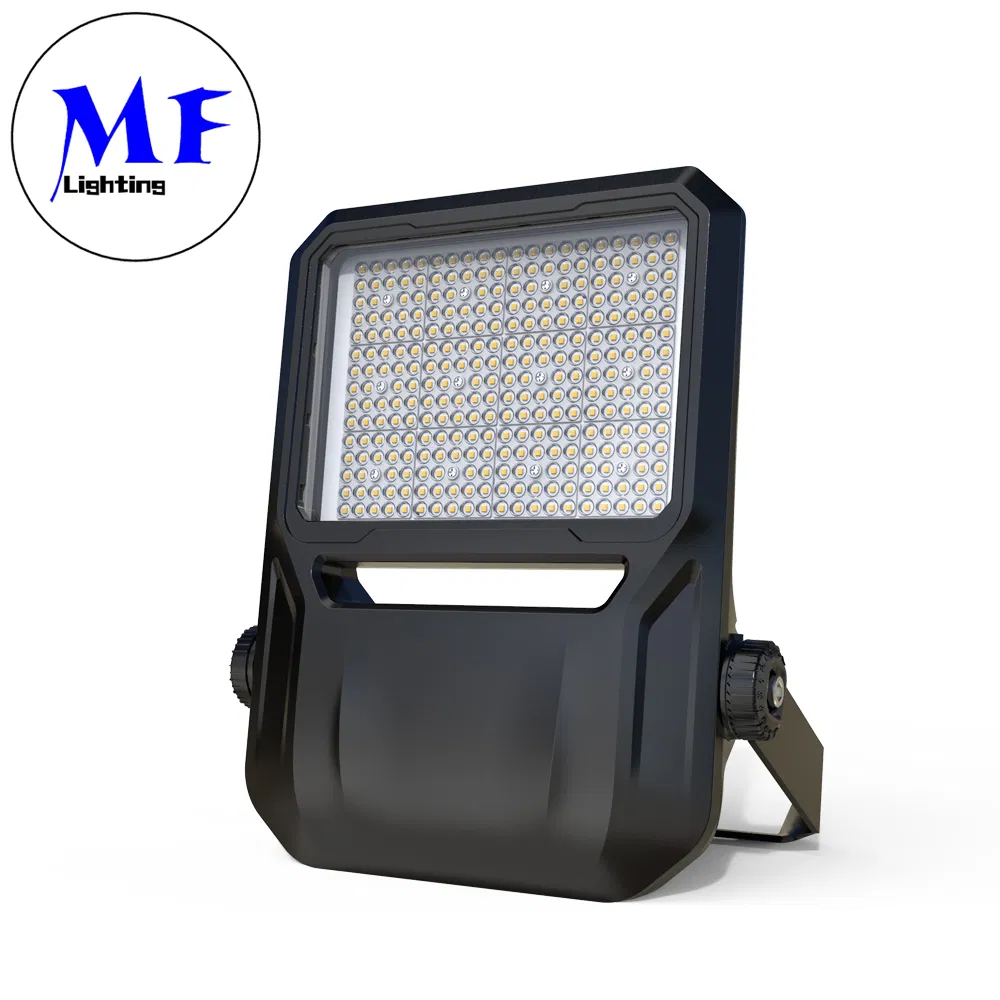

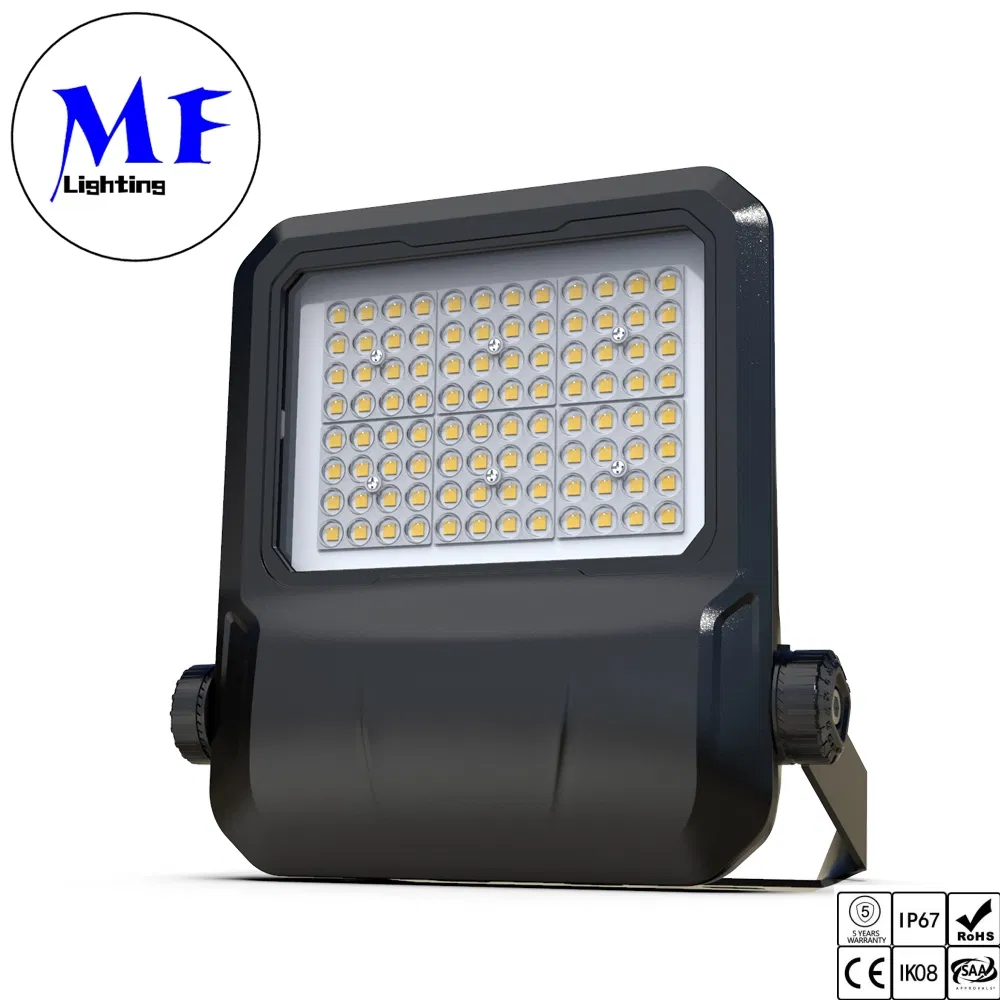

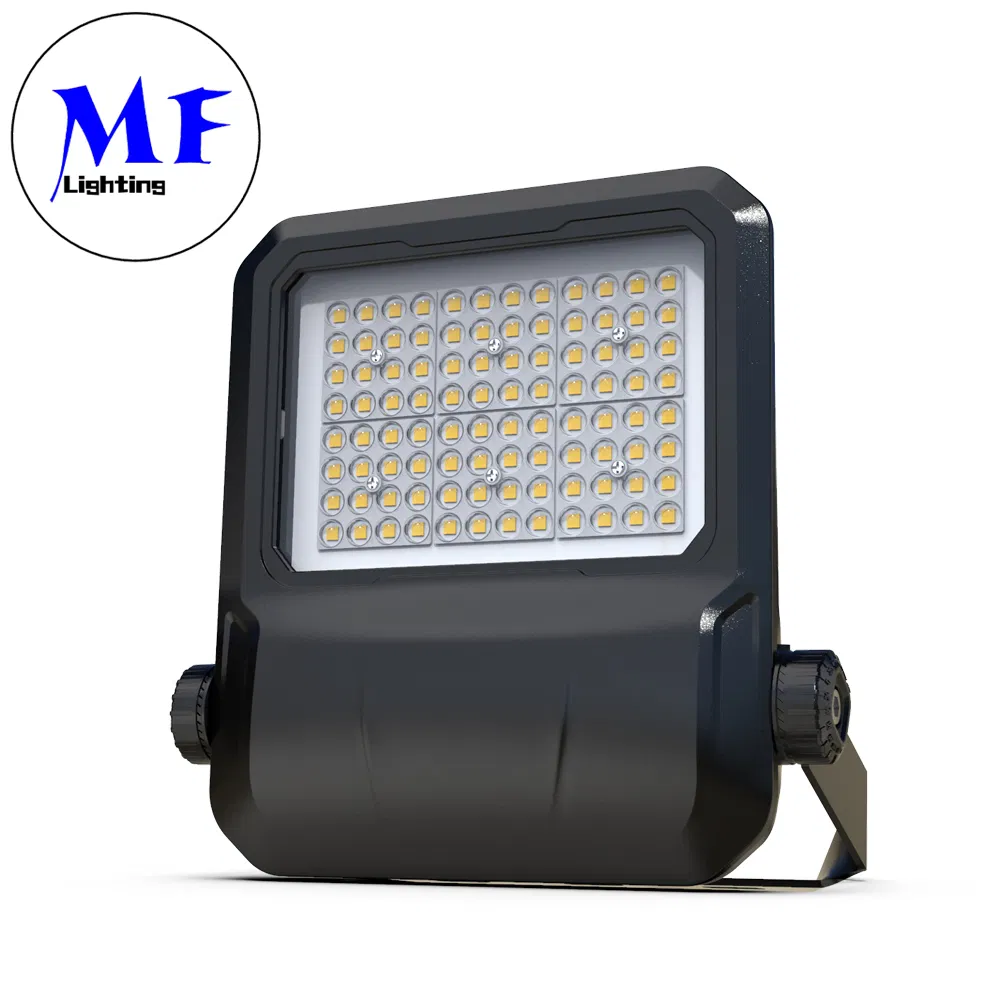

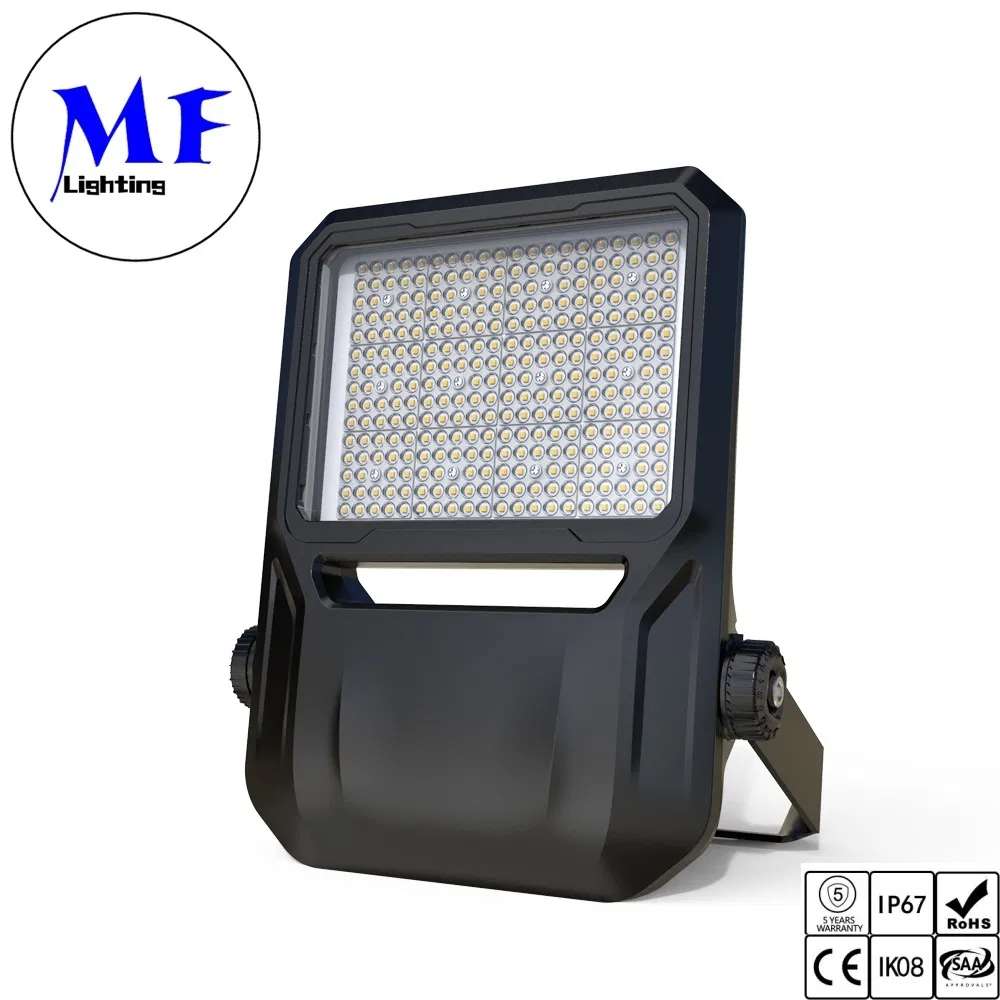

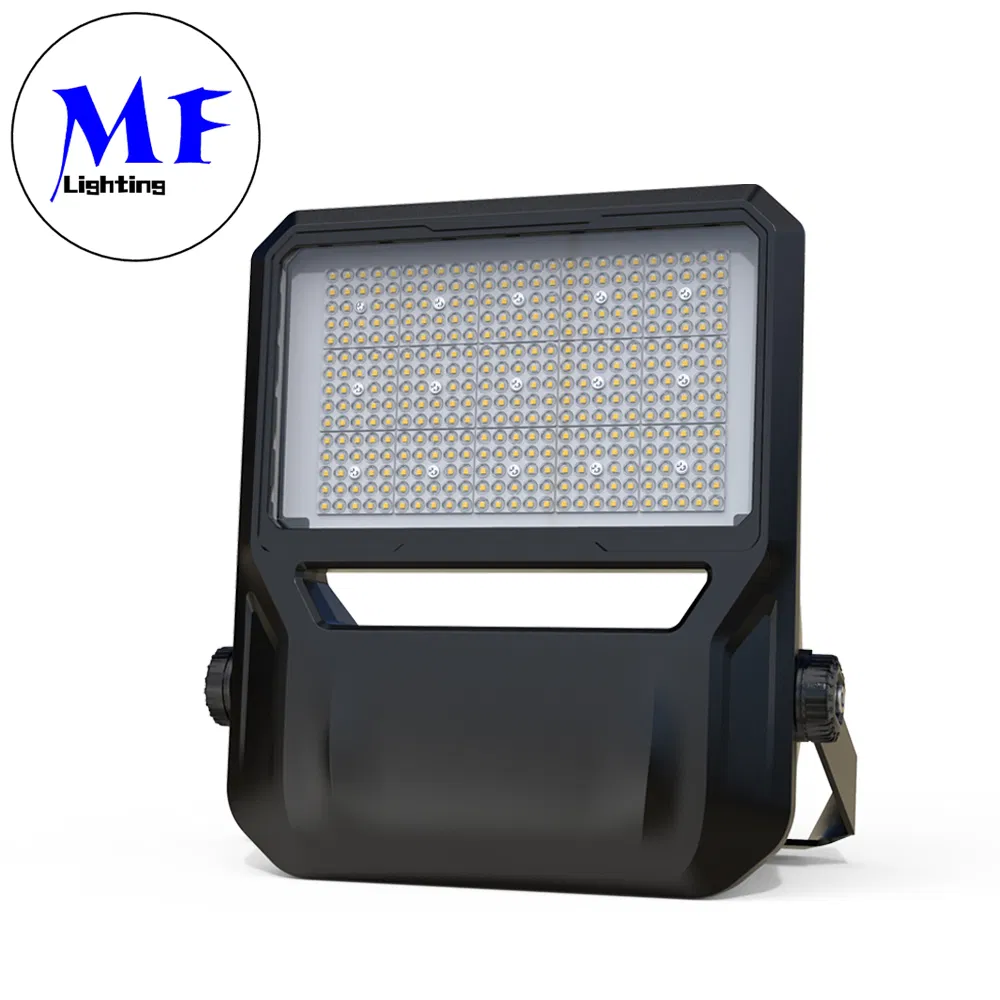

100W 150W 200W 300W 400W Sport Field Outdoor Stadium Garden Landscape Tennis Court Yard IP66 Waterproof LED Flood Light
| CODE | POWER | LUMEN OUTPUT | EFFICACY |
|---|---|---|---|
| MF-SKY-50 | 50W | 7,000lm | 140lm/W +10 |
| MF-SKY-100 | 100W | 14,000lm | 140lm/W +10 |
| MF-SKY-150 | 150W | 21,000lm | 140lm/W +10 |
| MF-SKY-200 | 200W | 28,000lm | 140lm/W +10 |
| MF-SKY-280 | 280W | 39,200lm | 140lm/W +10 |
| LIGHTING & ELECTRICAL DATA | DESIGN & CONSTRUCTION | ||
|---|---|---|---|
| Light Source | SMD 5050 | Body Material | Aluminium |
| Lifetime | >102,000hrs | IP Rating | IP 67 |
| CCT | 3000K - 6500K | IK Rating | IK 09 |
| CRI | >70 / >80 | Warranty | 5 Year |
| Voltage | 100-277V AC | Operating Temp | -30° to +50°C |

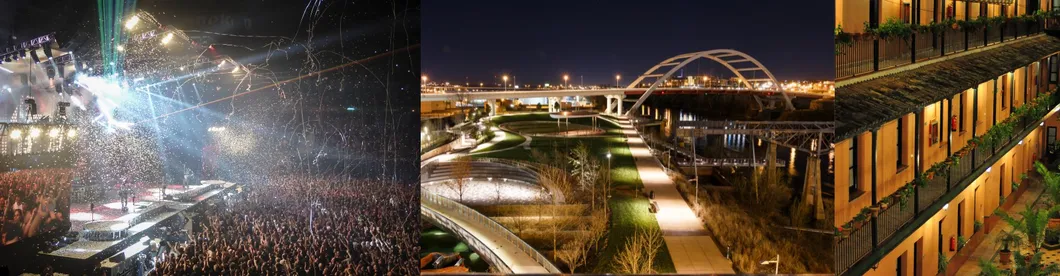

| COMMERCIAL | PUBLIC | INDUSTRIAL |
|---|---|---|
| Tunnel / Supermarkets | Airports / Stadium | Manufacture |
| Large Retailers | Train Stations | Warehouses |
| Schools / Billboards | Bus Stations | Parking Lots |
1. Installation must be performed by a certified electrician according to local regulations.
2. Always turn off power and ensure the lamp has cooled before installation or maintenance.
3. Verify local voltage matches product requirements (AC 100-277V).
4. Use a soft cloth and PH neutral detergent for cleaning; maintain stainless steel parts regularly.
5. Do not cover the fixtures with flammable materials.
