| Model NO. | LT-RGBCOBN1134-XX90-24 |
| Emitting Color | RGB |
| Voltage | DC 24V |
| IP Rating | IP20/IP65/IP67/IP68 |
| Control Mode | APP Control, Remote Control |

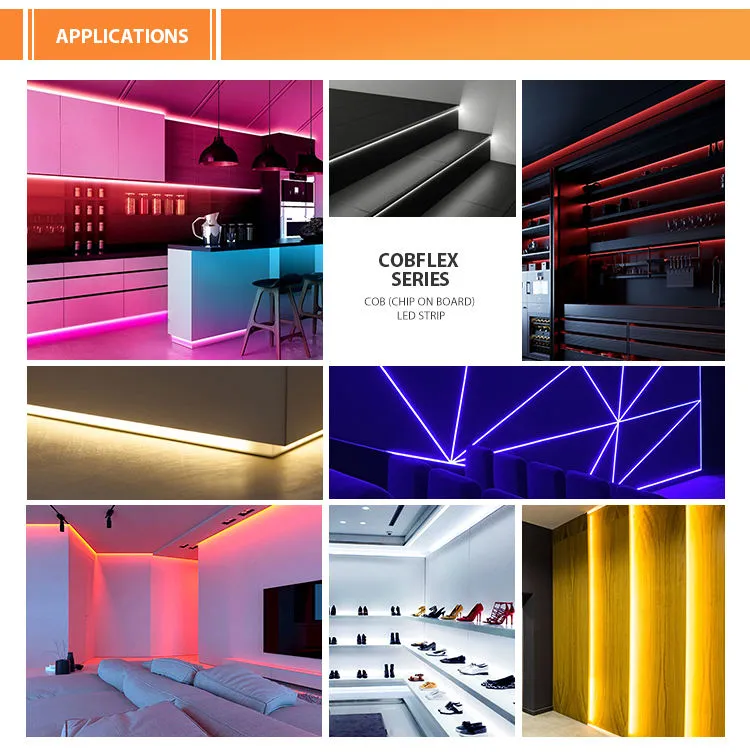

| Application | Under Cabinet Lighting |
| Lamp Body Material | Copper |
| Warranty(Year) | 3-Year |
| Lamp Luminous Efficiency(Lm/W) | 50 |
| Working Temperature(℃) | -40 - 40 |
| Support Dimmer | Yes |
| Lighting Solutions Service | Lighting and Circuitry Design, Project Installation |
| LED Quantity | 1134PCS (378*3) per meter |

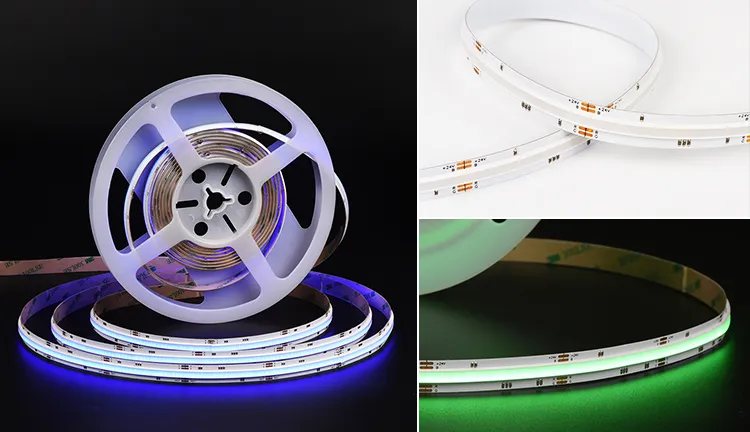

| Product Name | RGB COB Flex Strip |
| Beam Angle | 120 Degree |
| PCB Dimension | 10mm X 2oz (1/1oz) |
| HS Code | 9405429000 |
| Production Capacity | 100000 Meters Per Month |

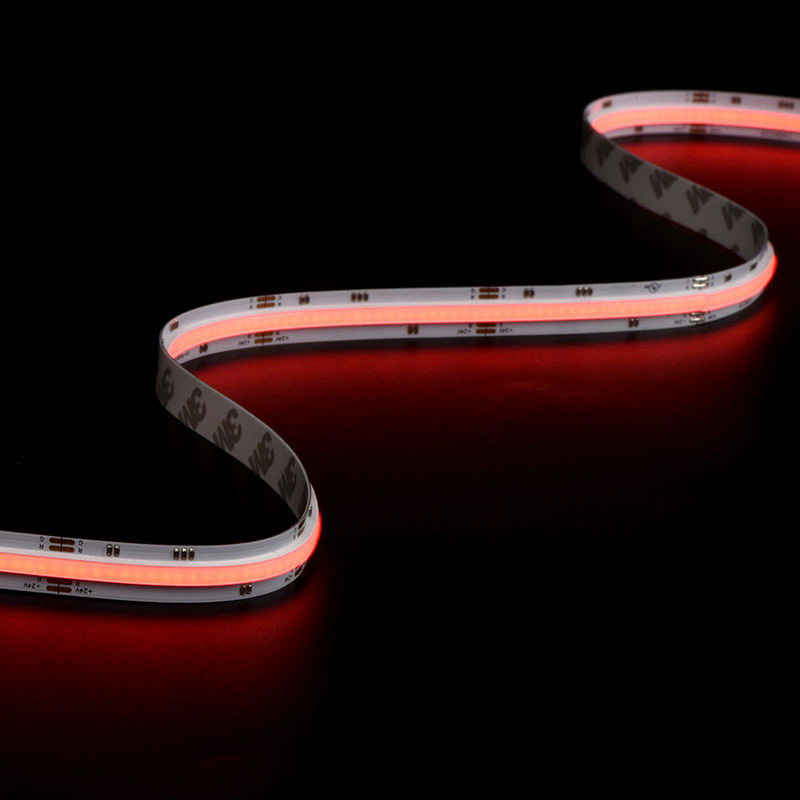

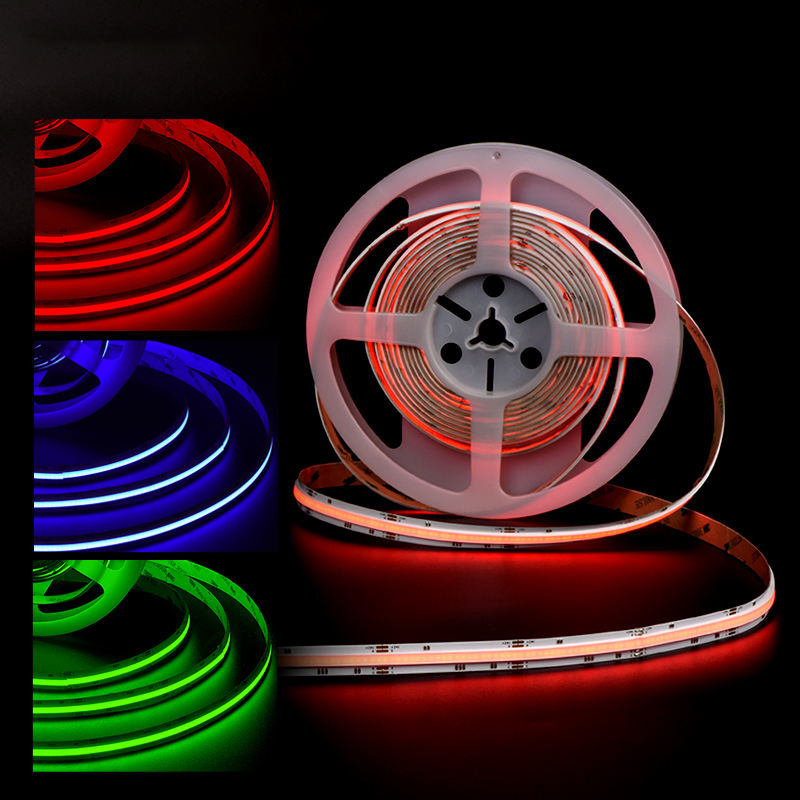

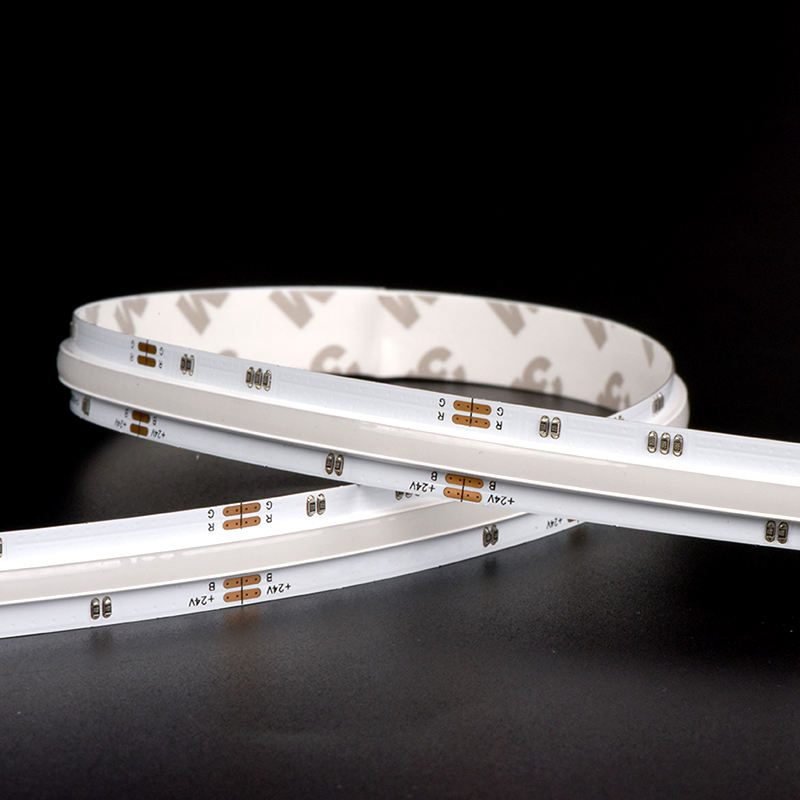

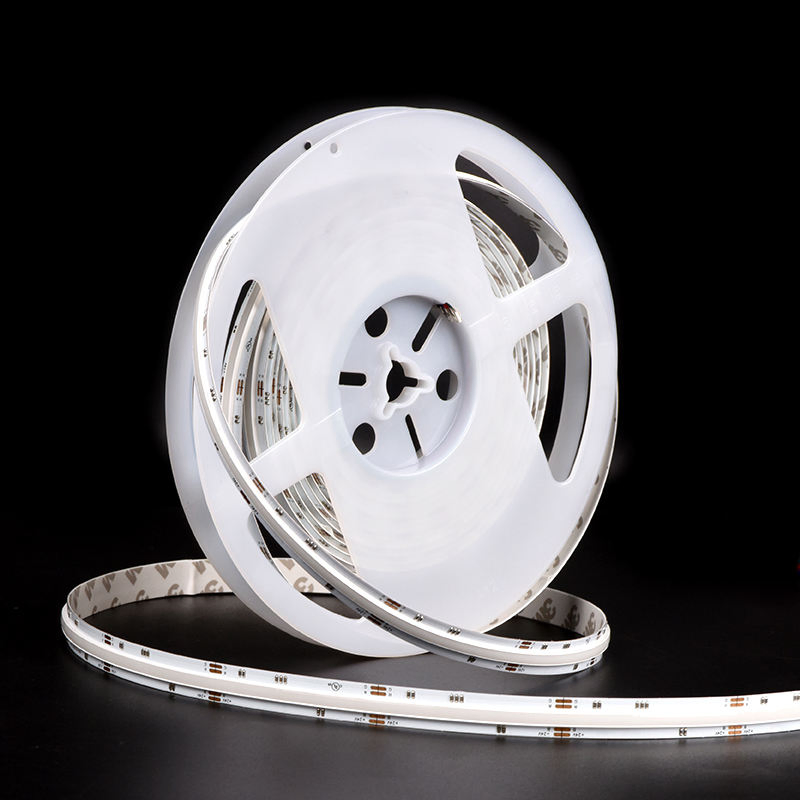

LUMITAPE COBFLEX Series - High Density Dot-free RGB 1134 chips

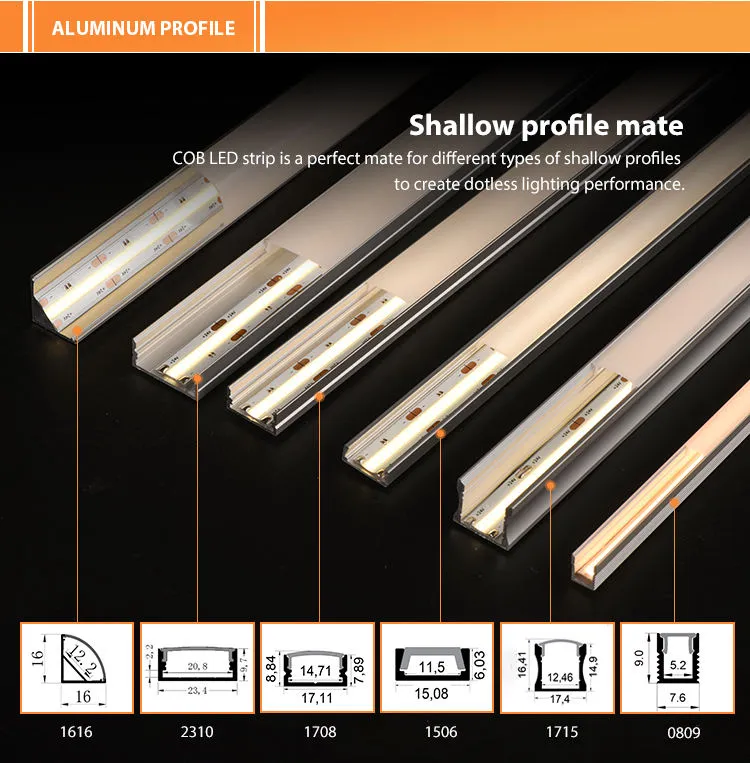

The COBFLEX is designed by flip-chip technology, featuring high-density LED chips mounted on FPC. The phosphor acts as the regulator and diffuser to create a dot-free lighting effect, perfect for shallow profiles in under-cabinet lighting applications.
| Nominal input voltage | 24V DC | Voltage range | 23-25V DC |
| LED types | COB | Product dimension | L5000*W12*H2.2mm |
| LED QTY/m | 1134pcs (378*3) | PCB dimension | 10mm x 2oz |

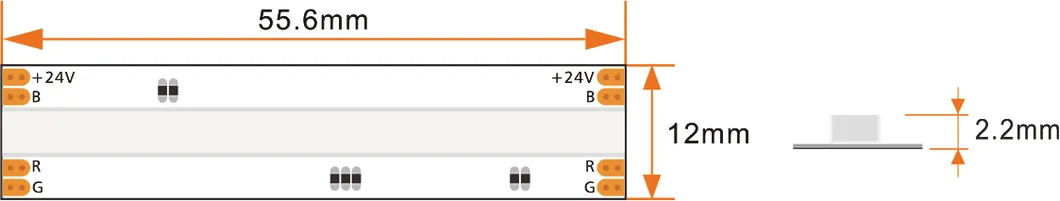

| IP rating | IP20 (IP65, IP67, IP68) | Cut points | 55.6mm |

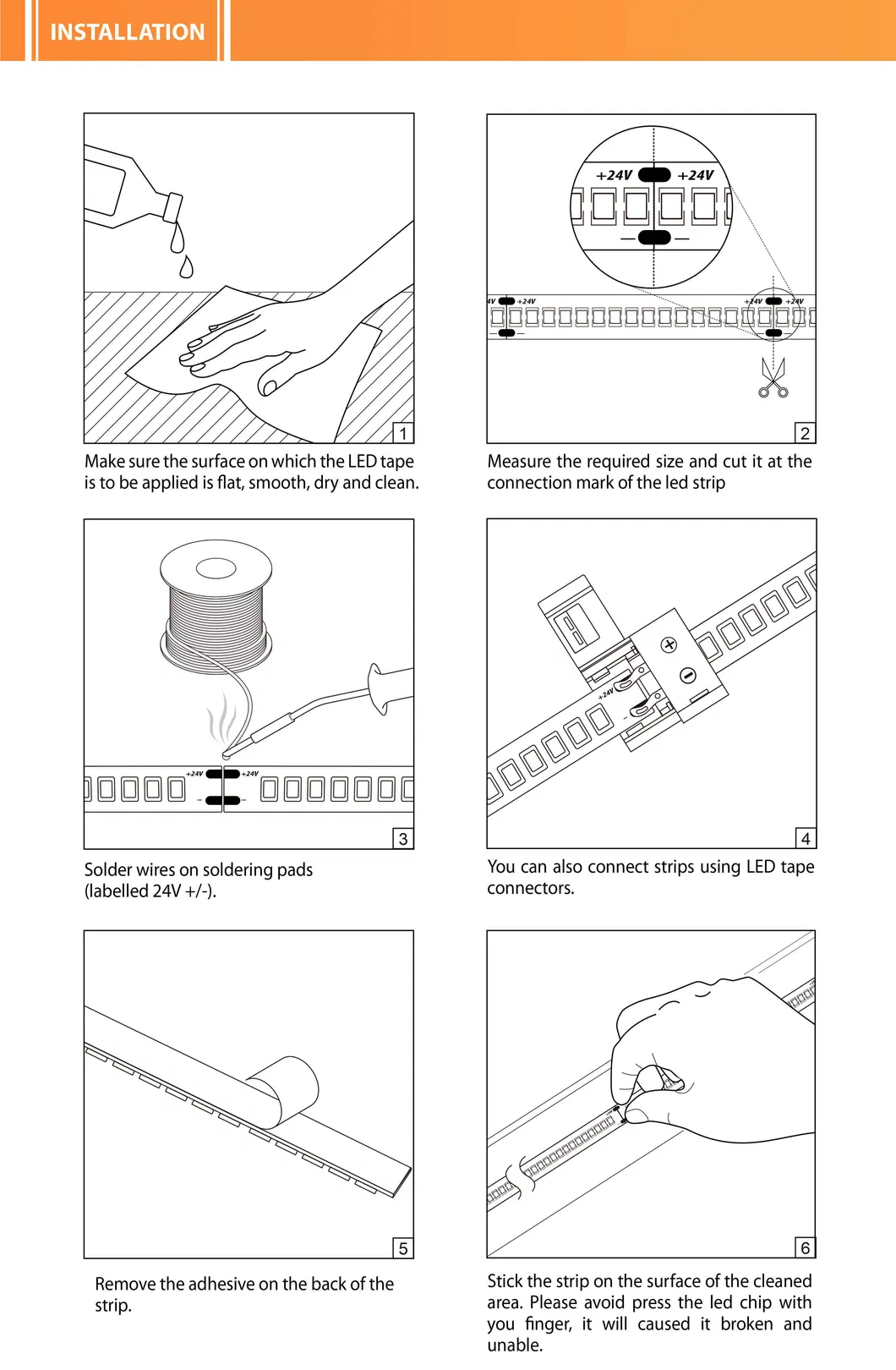

| Beam angle | 120° | Installation | 3M 300LSE adhesive tape |
| Part number | LT-COBN1134-RGB-24-YYY | |||
| Power consumption/m | Total: 15W | Red: 5W | Green: 5W | Blue: 5W |
| Lumen output/m | Total: 495LM | Red: 110LM | Green: 325LM | Blue: 50LM |
| Efficacy | 33Lm/w | 22Lm/w | 65Lm/w | 10Lm/w |
