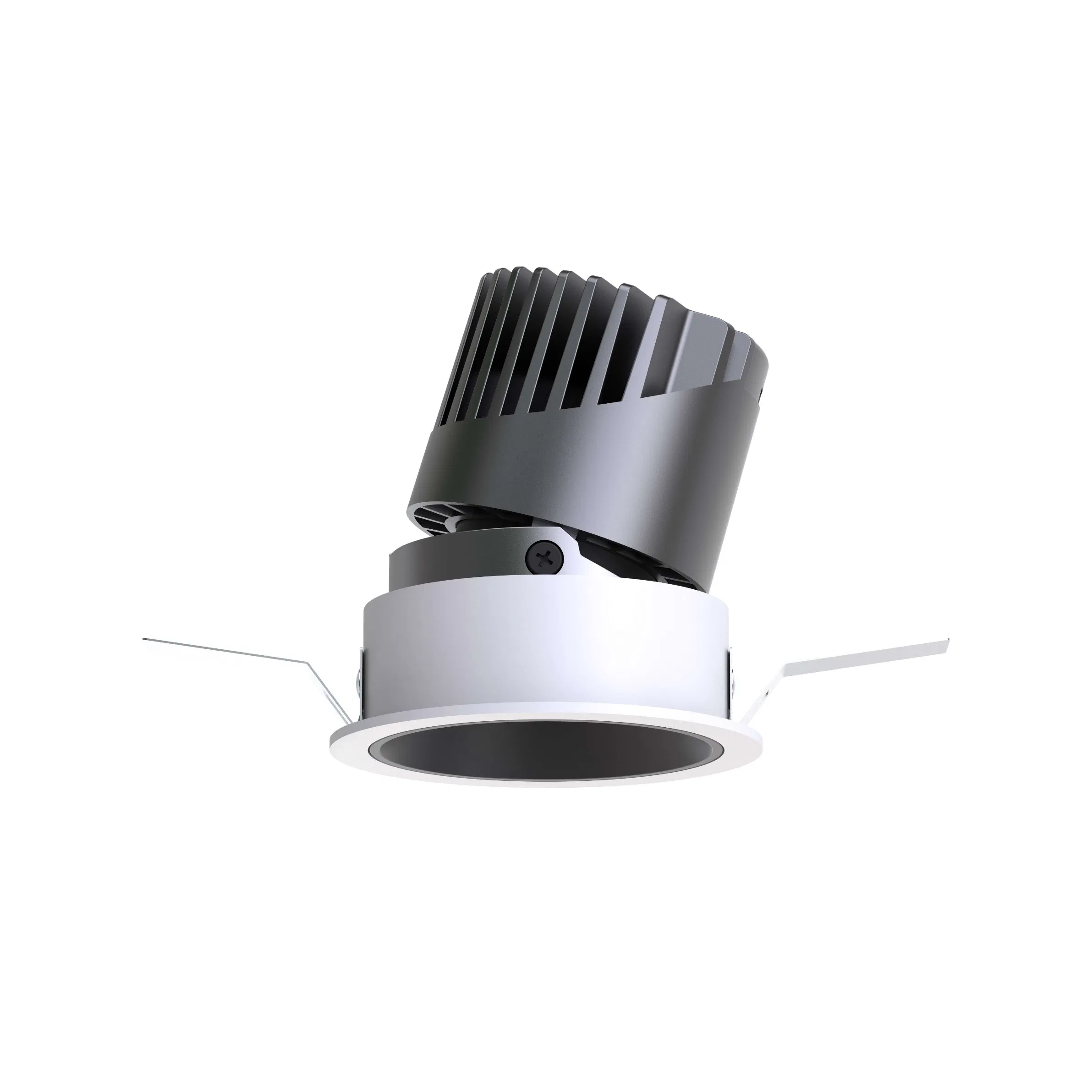

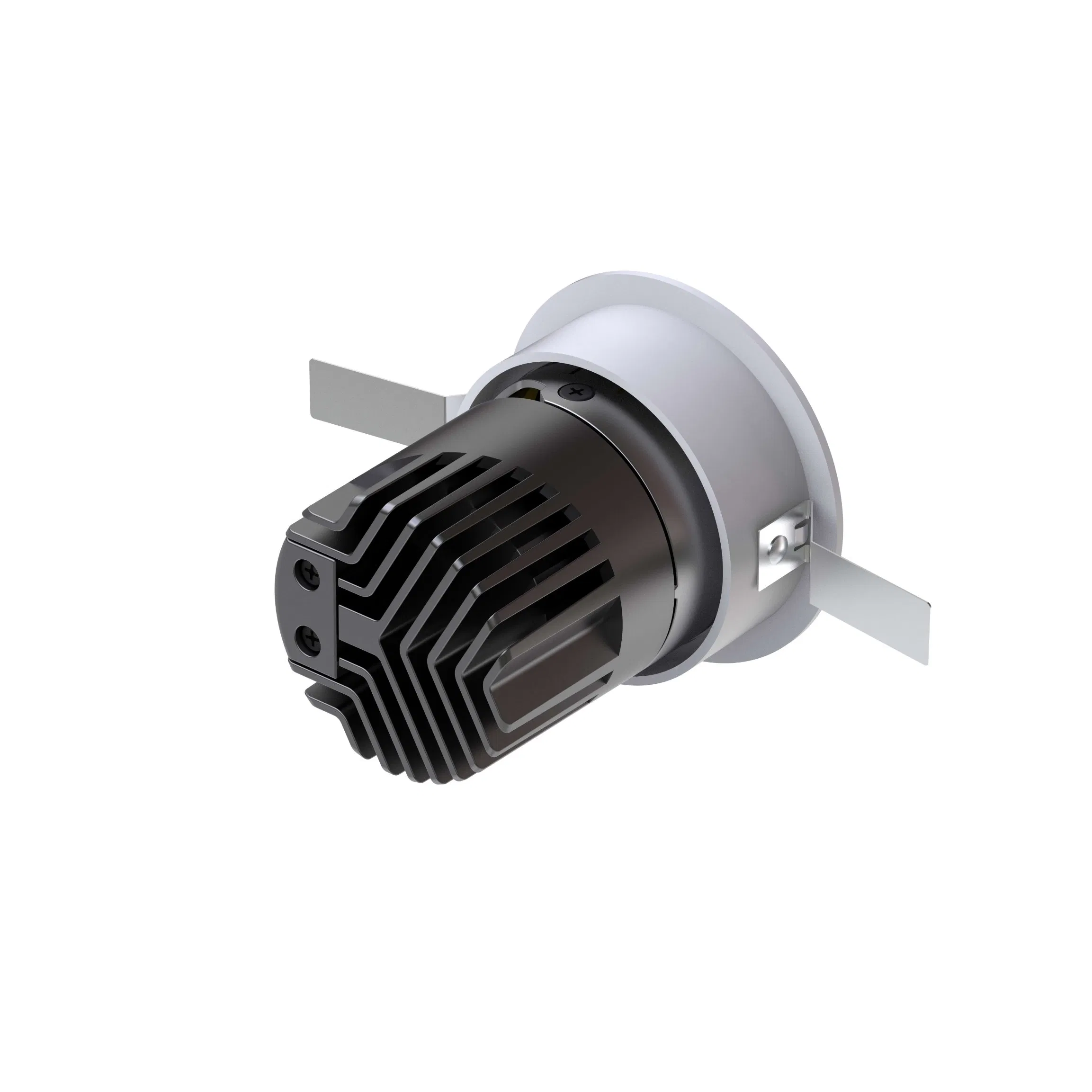

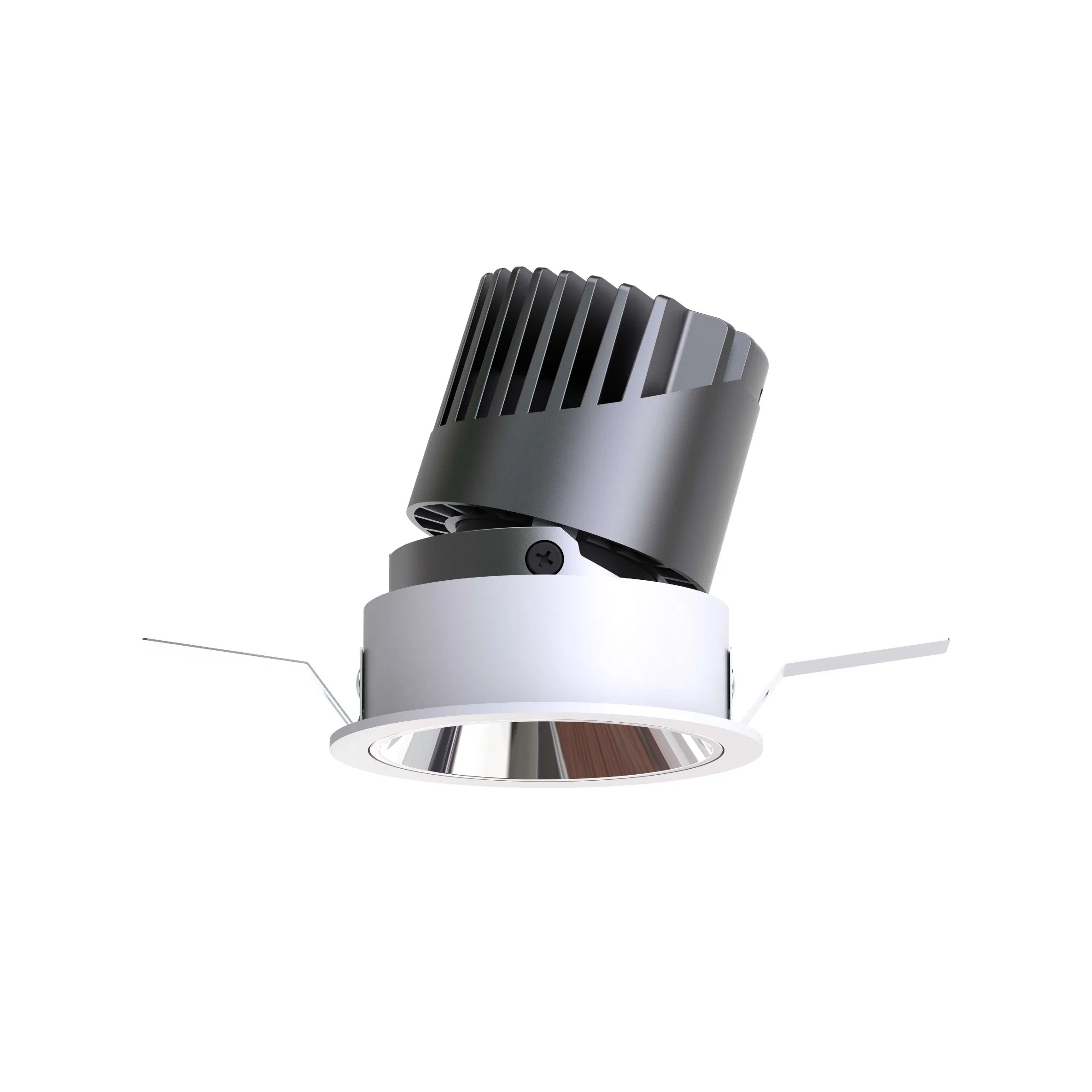

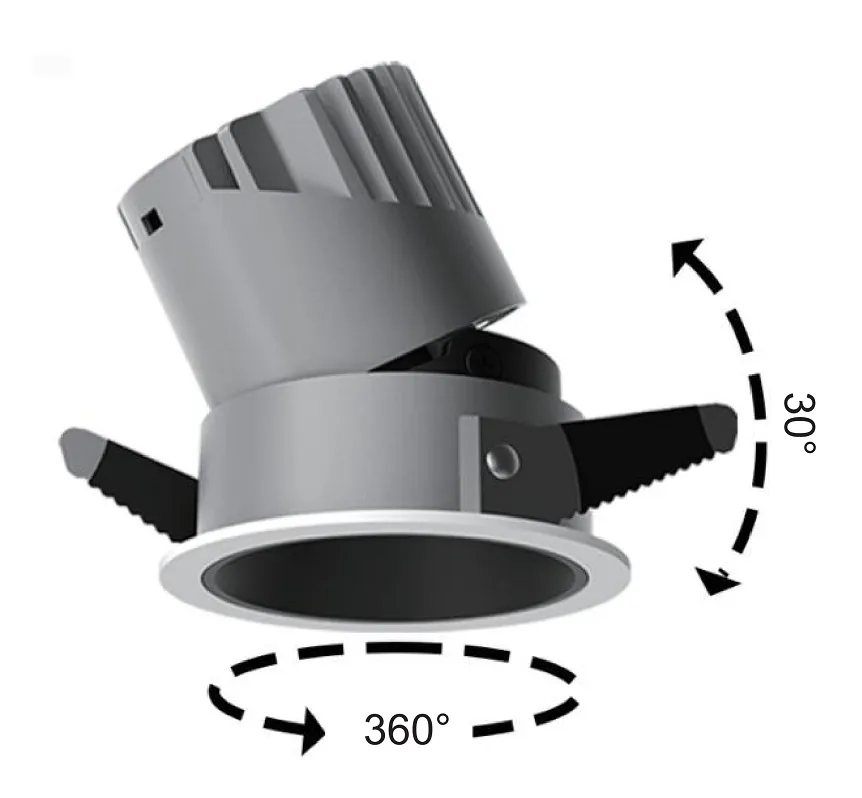

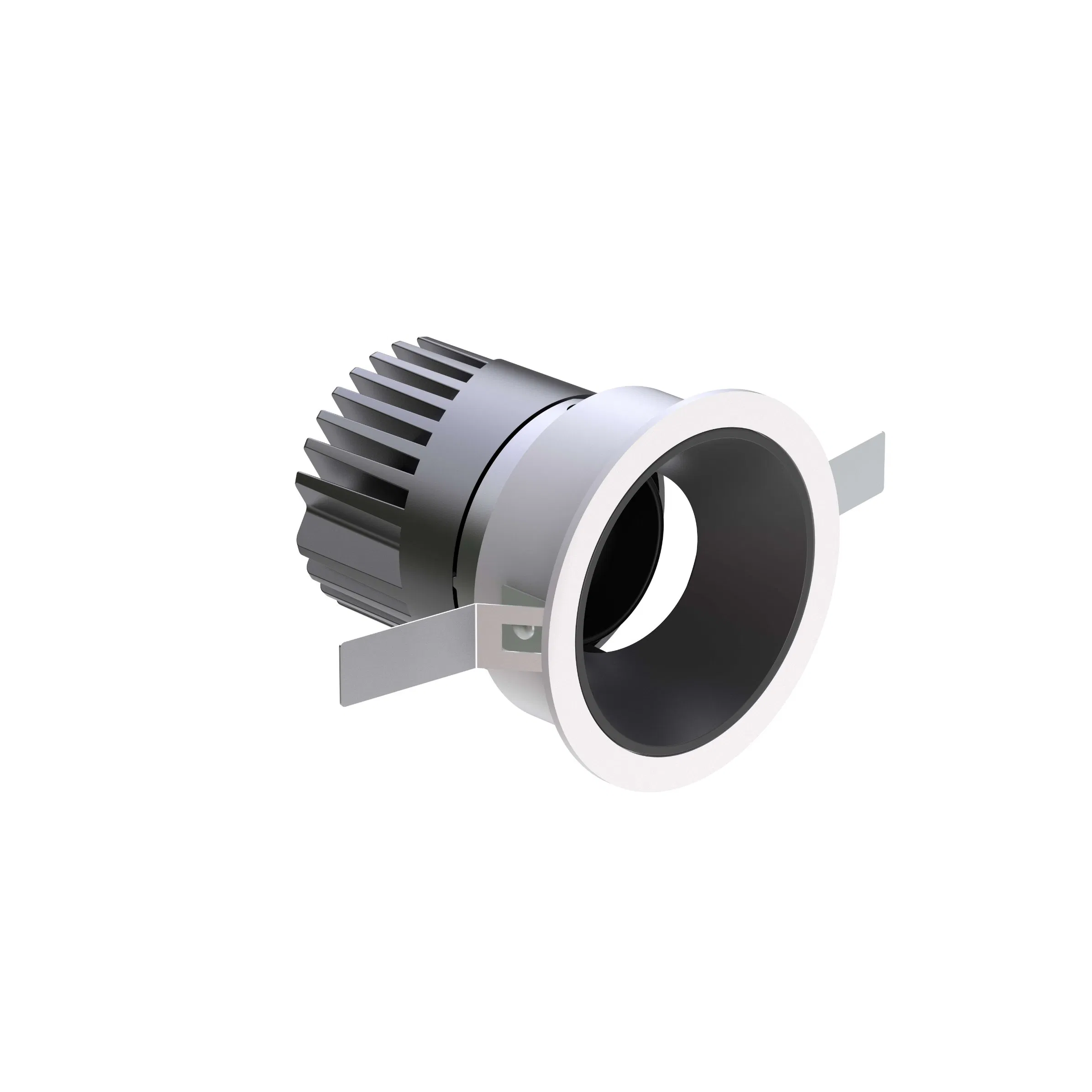

5W-25W Aluminum Adjustable Recessed Dimmable LED Downlight with ETL and CE

Still deciding? Get samples of $ !
Order Sample

Product Description

Basic Information
Model NO.
AB8001
Power
5W - 25W
Color Temp
Warm White (3000K-6000K)
Material
Aluminum
Source
COB (Bridgelux)
Installation
Recessed / Trimless
Warranty
5 Years
IP Rating
IP20
Lumen
100lm/W
Driver Brand
Lifud
Product Description

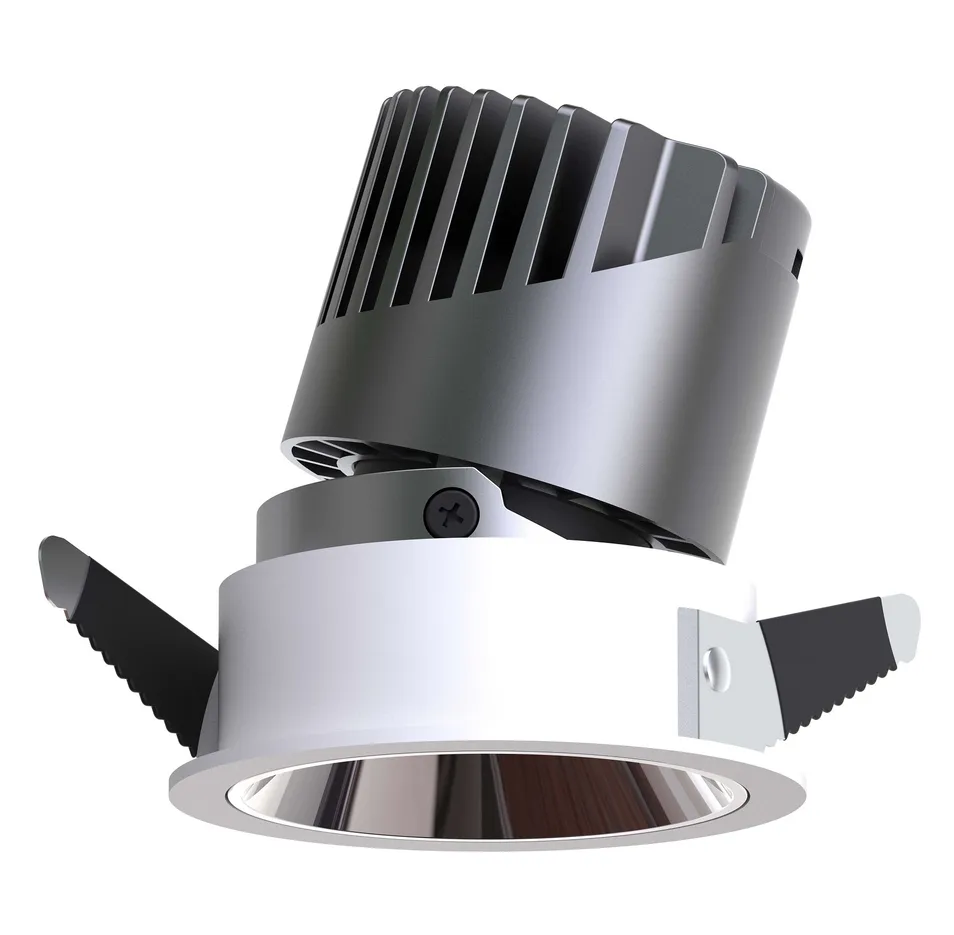

LED downlight is a modern, energy-efficient lighting fixture that is recessed into ceilings or flushed onto ceiling, providing directional illumination. It uses Light Emitting Diodes (LEDs) as its light source, offering superior brightness, longevity and energy-saving.

Core Advantages:

  • Modular Design: One engine for optional frames and multiple colors.

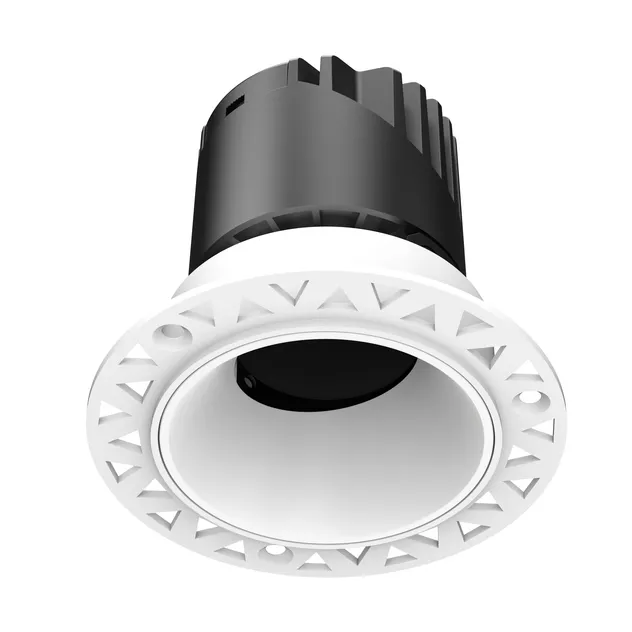

  • Precision Optics: Reflector beam angles available in 15°/24°/38°/55°.

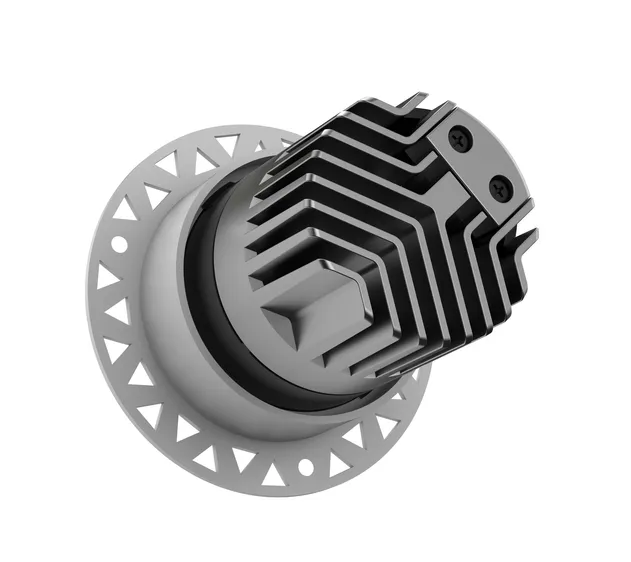

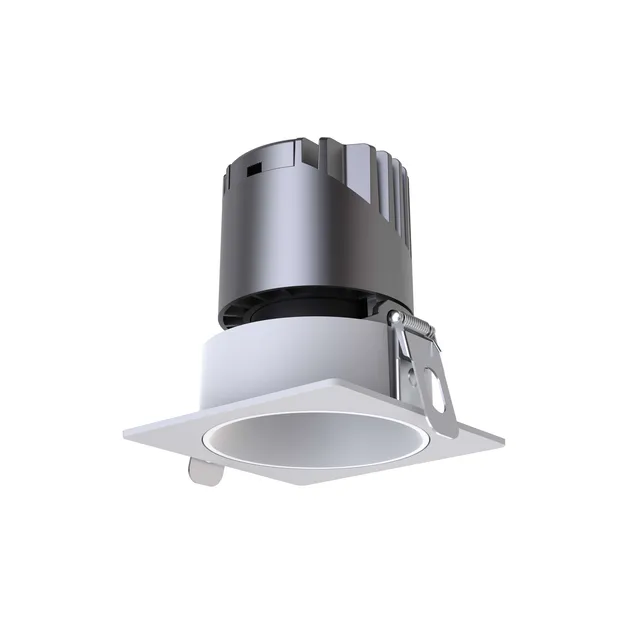

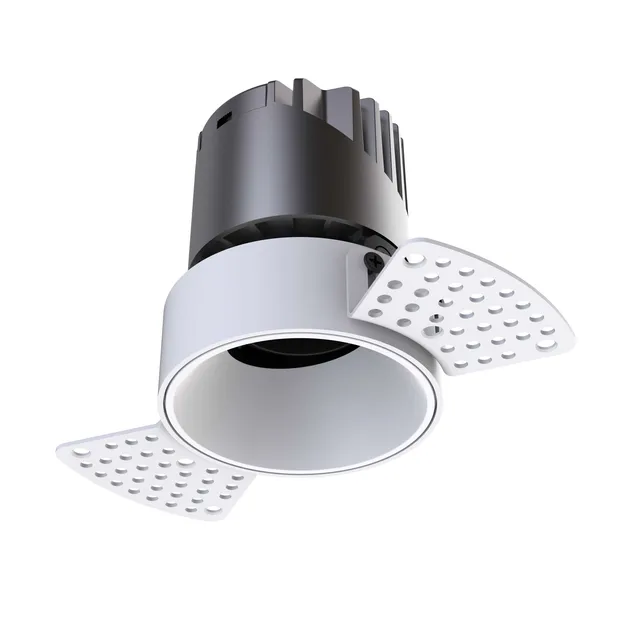

  • Versatile Styles: Narrow trim, trimless, square, double, triple, or four heads options.
  • Maintenance Friendly: Easy to replace the heat sink without changing the entire lamp.
  • Anti-Glare Design: Deep anti-glare structure for visual comfort.
  • Customization: Laser logo and customized packaging available.
  • Premium Components: Equipped with CREE/Citizen LED chips and Tridonic/LTECH drivers.
  • Advanced Dimming: Supports 0-10V, Triac, Dali, Dmx, Push Dim, and CCT Tunable options.
Specifications
Part Number Size (mm) Cutout (mm) Beam Angle Efficiency
AB8001-5Wφ65*H75φ5515° / 24° / 38° / 55°100 Lm/w
AB8001-9Wφ85*H90φ75
AB8001-15Wφ85*H100φ75
AB8001-25Wφ105*H120φ95
Input Voltage
220-240Vac / 100-277Vac
CRI
Ra > 90
UGR
< 19
Operating Temp
-20° ~ 40°C
Factory Profile

With over a decade of excellence, our factory has been at the forefront of LED lighting innovation, delivering high-quality, energy-efficient lighting solutions to clients worldwide. We specialize in designing, manufacturing, and supplying premium LED linear lights, downlights, and commercial lighting products.

Production Facility

Why Partner With Us?

  • 10+ Years of Manufacturing Experience in LED technology.
  • International Certifications including CE, RoHS, and ETL.
  • Flexible OEM/ODM Support for tailored project requirements.
  • Global Export Experience across Europe, North America, and Asia.
Packaging & Shipping
Shipping Logistics
  • Express Shipping: DHL/FedEx/UPS for fast door-to-door delivery (3-7 days).
  • Air Freight: Efficient for medium-sized shipments (5-10 days).
  • Sea Freight: Best for bulk orders (FCL/LCL) at competitive rates.
  • Land Transport: Reliable trucking and train solutions for regional deliveries.
FAQ
Do you have a minimum order quantity (MOQ)?
We maintain a low MOQ policy. You can order even a single piece for sample inspection and quality testing.
Can you produce based on custom samples or drawings?
Yes, our R&D department is fully capable of handling both OEM and ODM requests to meet your specific design needs.
What is the standard lead time for orders?
Samples typically take 5-7 days, while bulk orders are usually processed within 15-20 days depending on the volume.
What are your payment terms?
We generally prefer T/T. For standard orders, terms are a 30% deposit upfront with the balance paid prior to shipment.
Is logo customization available on the products?
Yes, we provide laser engraving for your brand logo on the product body or can use custom label stickers.
What is the warranty period for these LED lights?
We offer a comprehensive 5-year warranty. If a product fails during this period, we will provide a new replacement.
