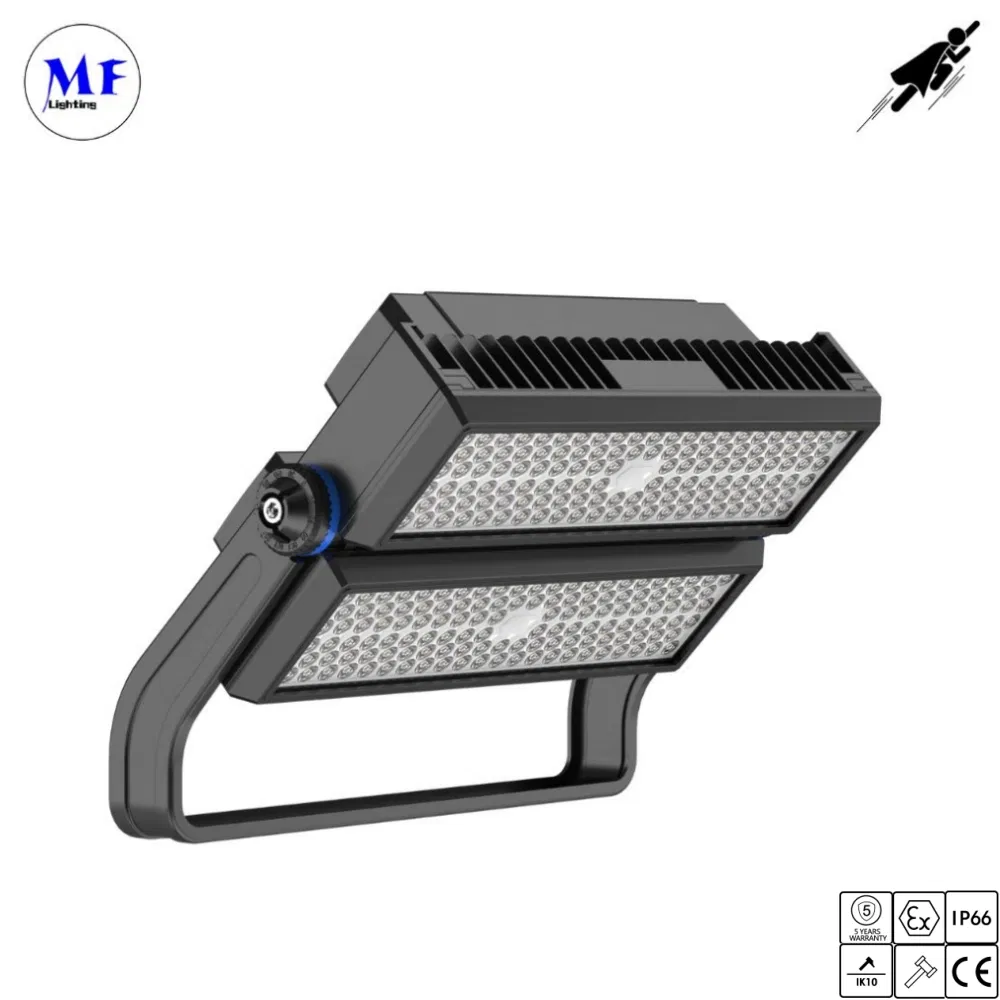

High Power Module 250W 500W 1000W 1250W 1500W Ik10 IP66 Outdoor Waterproof Tennis Sports LED Flood Light Stadium Light for Football Soccer Court

OVERVIEW - BASIC INFO

Model NO.

MF Superman II

Power

250W - 1500W

Application

Park, Square, Factory, Garden

IP Rating

IP66

Certification

CE, RoHS, VDE

Voltage

AC85-277V / 100-305VAC

LED Brand

Lumileds / Osram

Driver Brand

Meanwell / Sosen

CRI (Ra)

>70 / >80 / >90

IK Class

IK08 / IK10

PRODUCT FEATURES

High Power Module Outdoor Waterproof LED Flood Light Stadium Light for Football Soccer Court

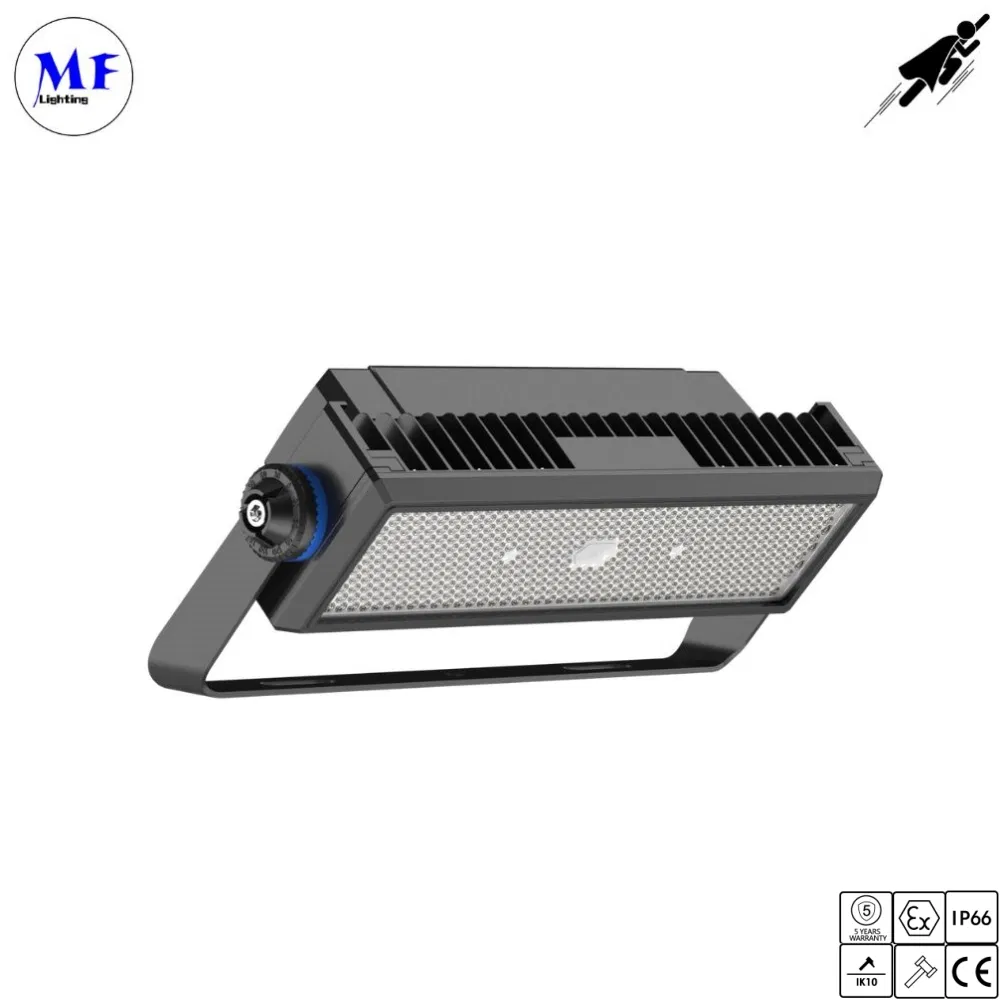

All-In-One Design

The new generation in LED sports lighting, combining performance, energy saving, and cutting-edge optical management in one sleek package.

Flicker-Free Technology

Designed for 4K high-definition cameras reaching 2000fps, perfectly meeting the needs of Slow Motion Replay in sporting events.

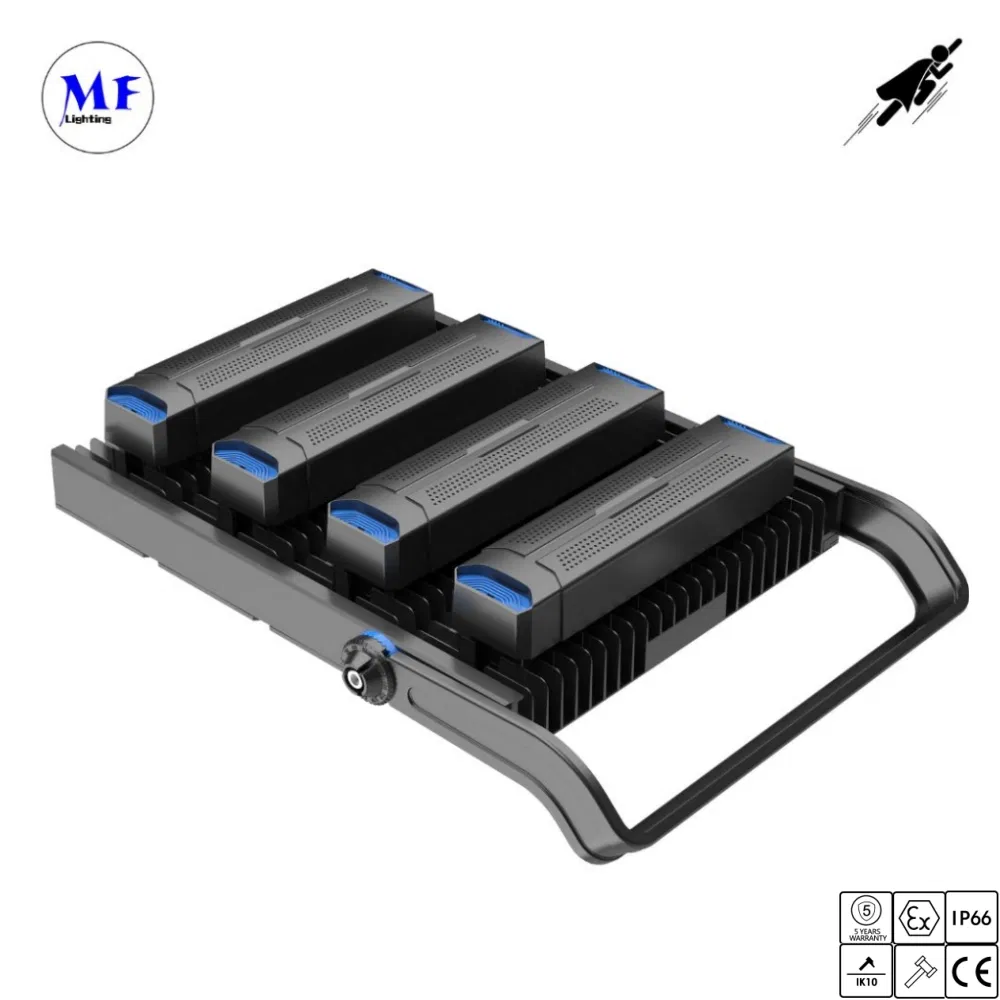

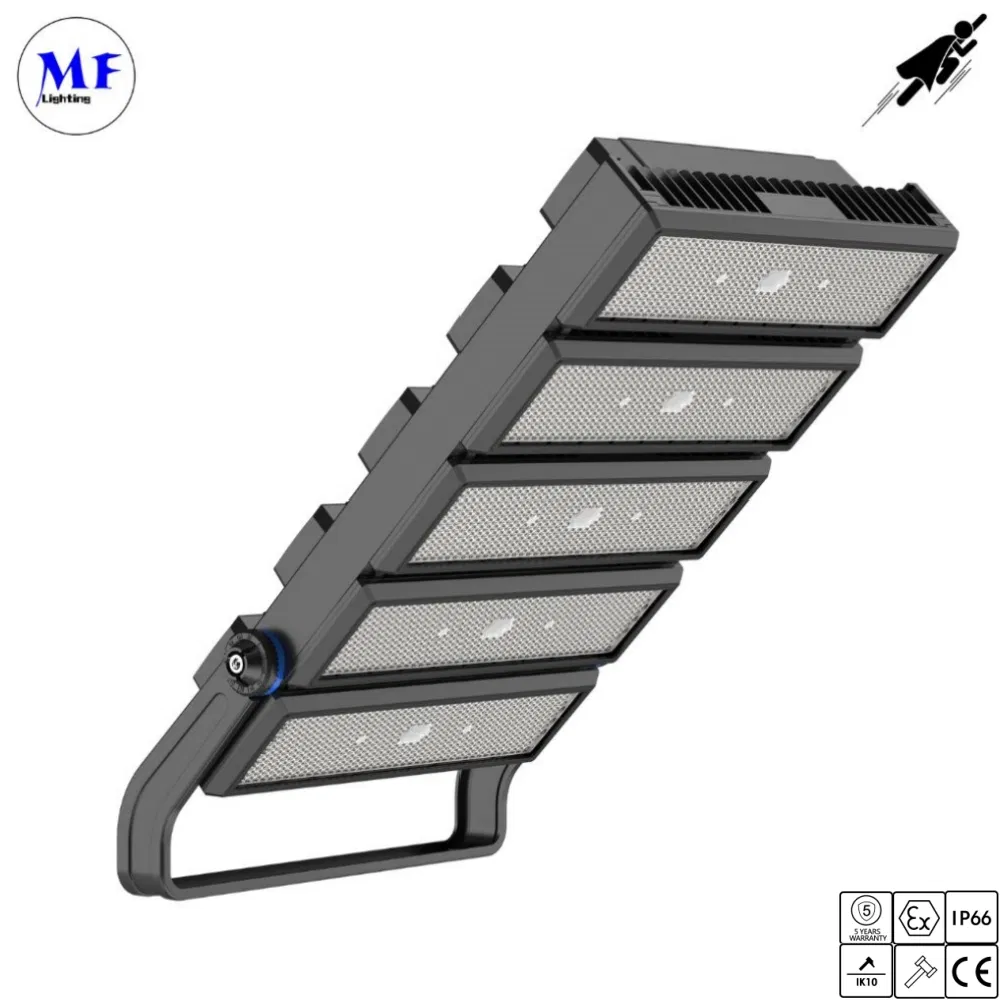

Modular Concept

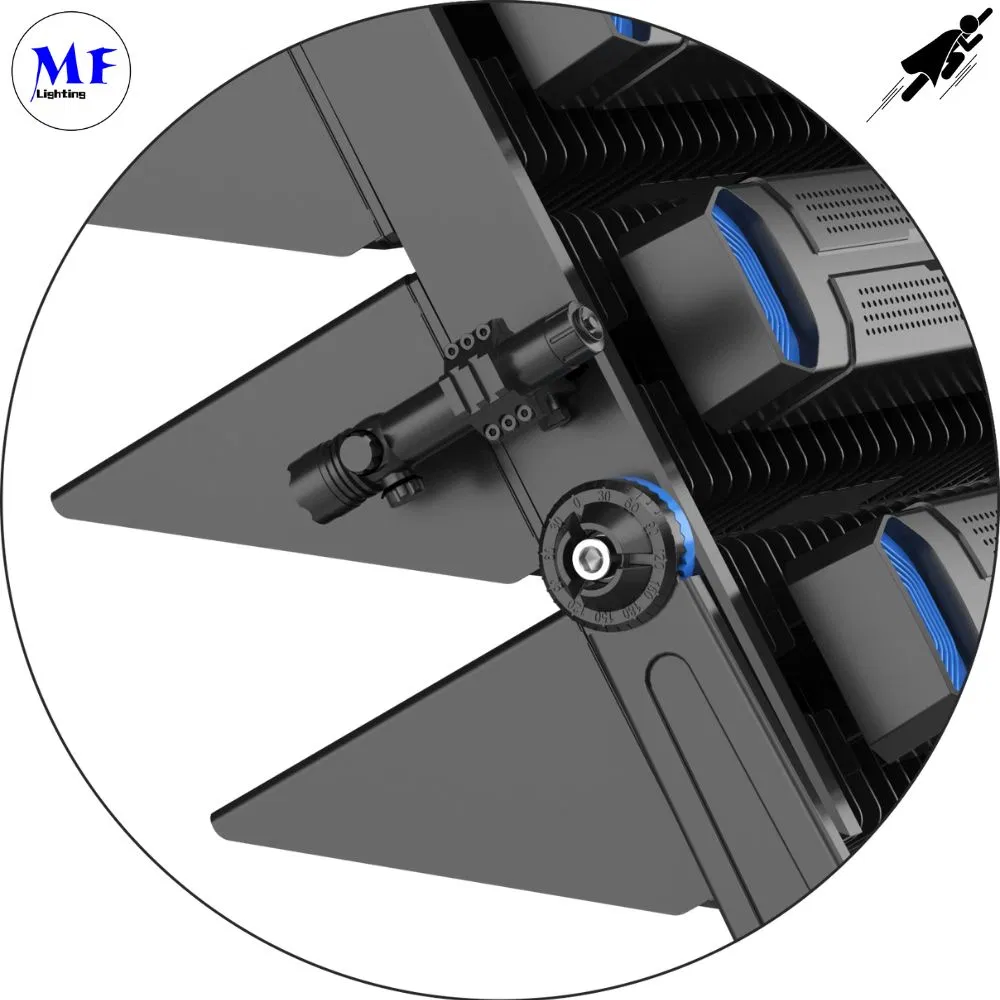

Adopt modular design based on 250-300W per module, maximum to 1500W. Flexible rack angles and laser aimer for precise field aiming.

High Protection

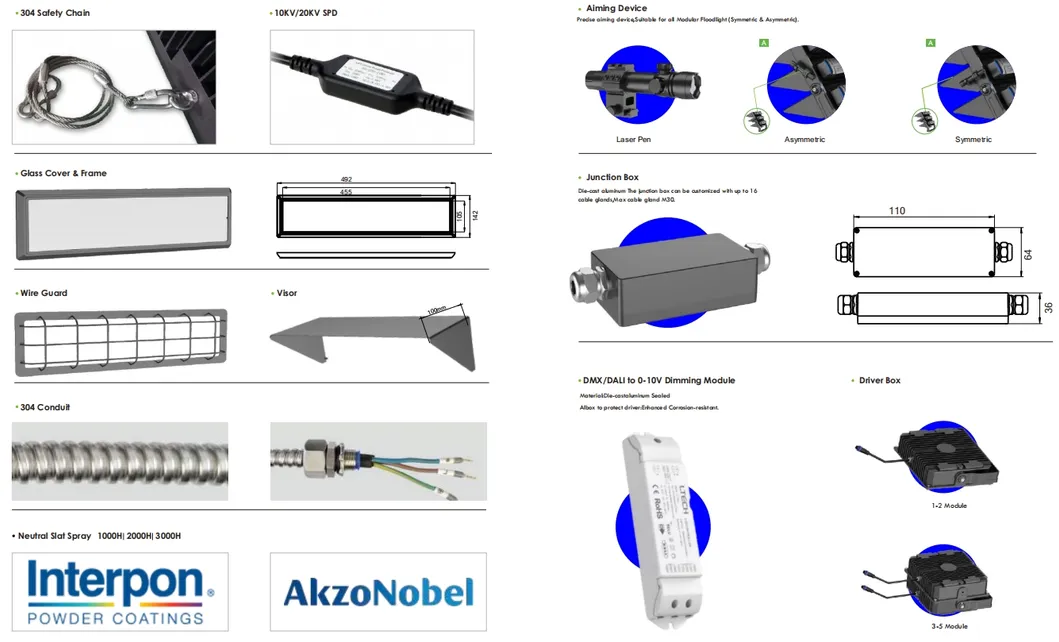

IP66 and IK10 rated with low wind resistance. Includes wire guards for ball-proofing and safety ropes for double protection.

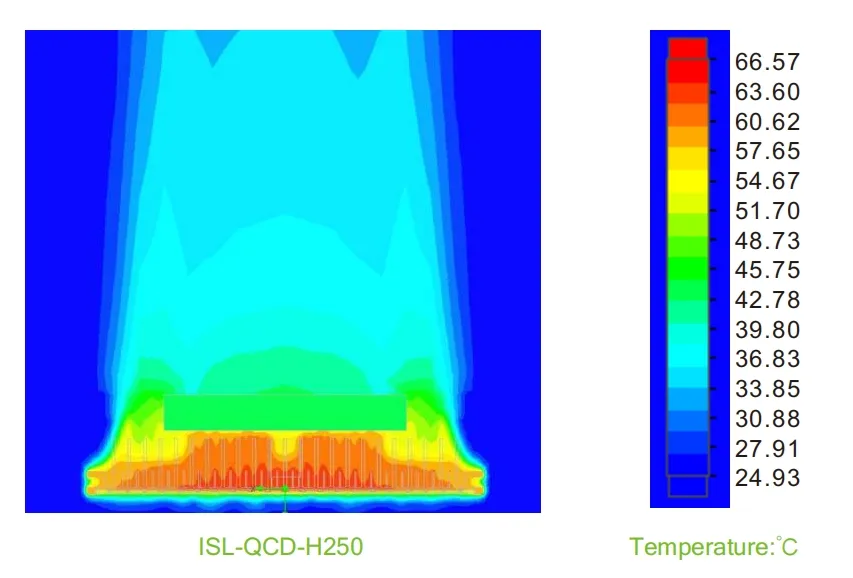

Thermal Management

Fin-design passive cooling system (conduction, radiation, convection) ensures strict control over LED temperature and increases lifespan.

Spill Light & Glare Control

Asymmetrical optical lens focuses light on the ground without affecting surrounding residential homes. Visor equipped for glare-free visual experience.

TECHNICAL SPECIFICATIONS

Plan A: 150lm/w Efficiency

Model No.	H250W	H500W	H750W	H1000W	H1250W
Rated Power	240W	480W	720W	960W	1200W
Luminous Flux	36,000 lm	72,000 lm	108,000 lm	144,000 lm	180,000 lm
Input Voltage	100-305Vac 50/60Hz
Beam Angle	10/25/45/60/90°/65*25°
IP/IK Class	IP66 / IK08-IK10

Plan B: 170lm/w Efficiency

Specification	H250W	H500W	H750W	H1000W	H1250W
Light Source	SMD3030/3737	SMD3030/3737	SMD3030/3737	SMD3030/3737	SMD3030/3737
Luminous Flux	40,800 lm	81,600 lm	122,400 lm	163,200 lm	204,000 lm
Net Weight	7kg	14kg	20kg	26kg	32kg

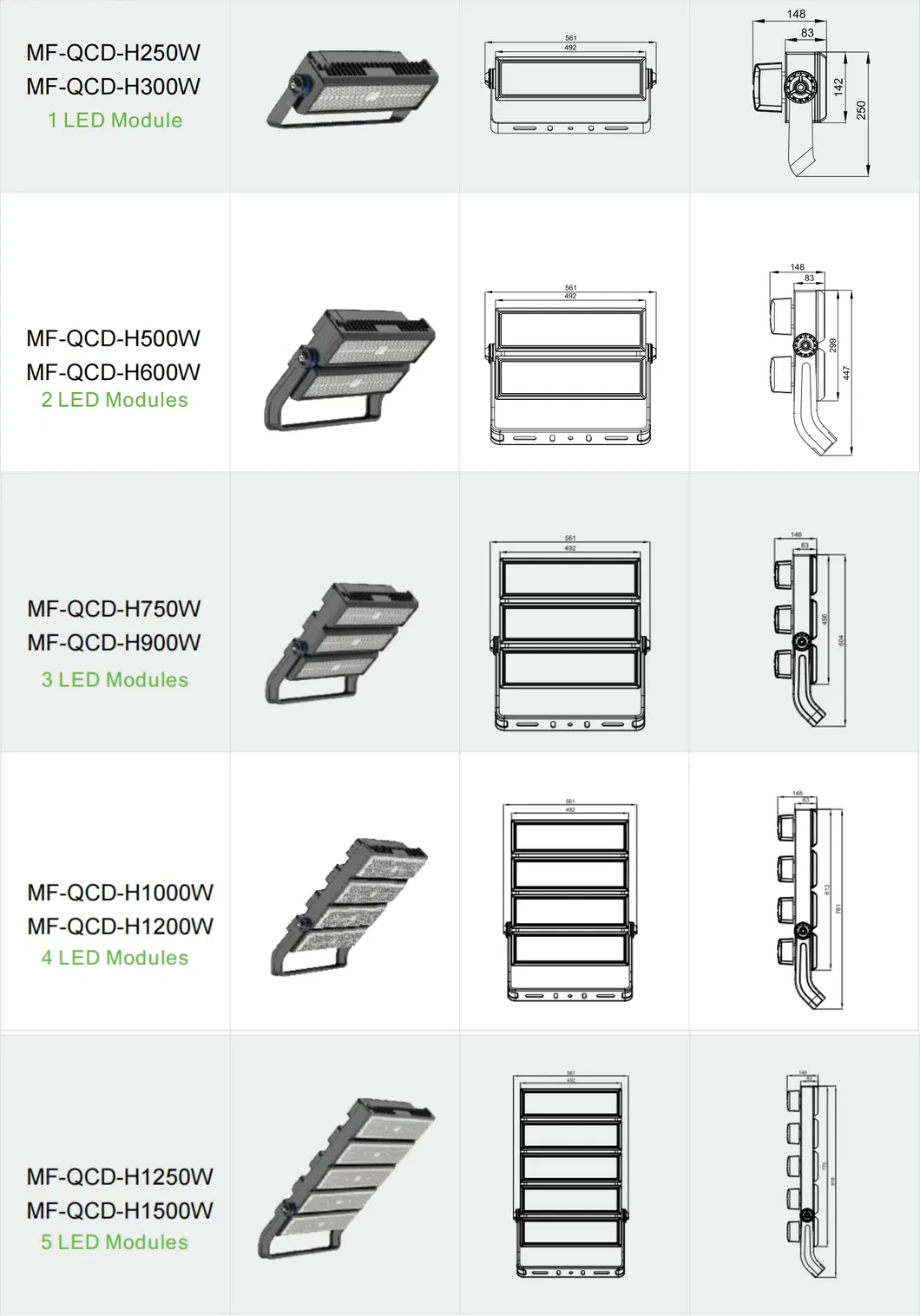

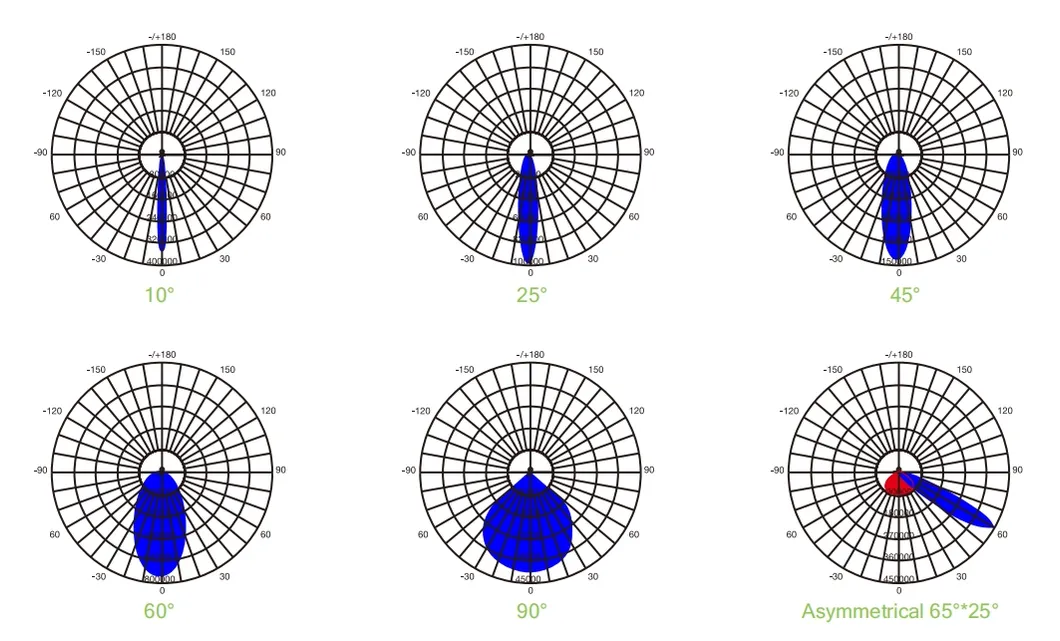

DIMENSIONS & PHOTOMETRY

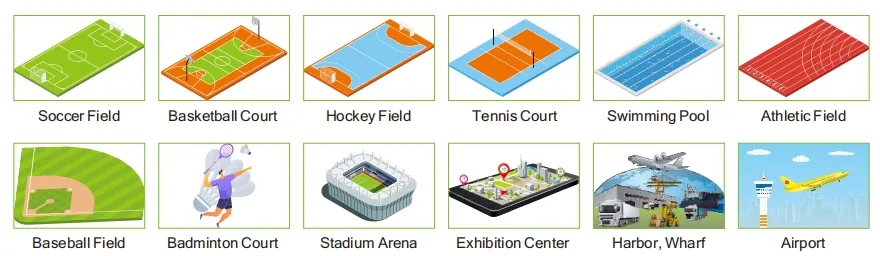

APPLICATIONS

LED High Mast Flood Lights are designed for high-intensity lighting over large outdoor areas. Ideal for:

Sports Facilities: Stadiums, Soccer Fields, Basketball & Tennis Courts, Golf Courses.
Transport Hubs: Airports, Seaports, Wharfs, Docks.
Industrial: Construction Sites, Hangars, Shipping Yards, Distribution Centers.
Public Spaces: Monuments, Bridges, Large Parking Lots, Exhibition Centers.

MATTERS NEEDING ATTENTION

1. Installation must be performed by a certified electrician based on local regulations.

2. Always turn off power and ensure the lamp is cooled down before maintenance or replacement.

3. Check local voltage requirements before installation.

4. Clean with a soft cloth and PH neutral detergent; maintain stainless steel parts regularly.

5. Do not cover the fixtures with flammable materials.

FREQUENTLY ASKED QUESTIONS

What is the available power range for the Superman II series?

The power range covers 250W, 300W, 500W, 600W, 750W, 900W, 1000W, 1200W, and 1500W to meet various lighting requirements.

Is this stadium light suitable for high-definition broadcasting?

Yes, it features flicker-free technology and adopts Meanwell/Sosen power supplies, making it ideal for 4K cameras and slow-motion replay.

What is the protection rating of these outdoor lights?

The fixtures are IP66 waterproof and IK10 impact-resistant, ensuring durability in harsh outdoor environments.

Does the light focus only on the field to avoid disturbing neighbors?

Yes, the Superman II uses asymmetrical optical lenses designed to focus light projection on the sports ground without spill light to residential areas.

What kind of thermal management system is used?

It uses a advanced fin-design module that increases heat dissipation through conduction, radiation, and convection for better reliability and node temperature control.

What LED chips and drivers are used in this product?

We use high-quality Osram or Lumileds LED chips paired with Meanwell or Sosen drivers for maximum performance and longevity.
