📋 Basic Information
Model NO.TG003A-400W-DB
Power400W
ApplicationPark, Square, Factory, Garden
IP RatingIP66
CertificationCE, CQC, EMC, RoHS, SASO
LED Chips BrandSanan
Operating Voltage100-265V
Lumen100-110lm/W
Housing ColorGrey or Black
Life Time>30000Hrs
Body MaterialAluminum alloy
Warranty2 Years
💡 Product Description

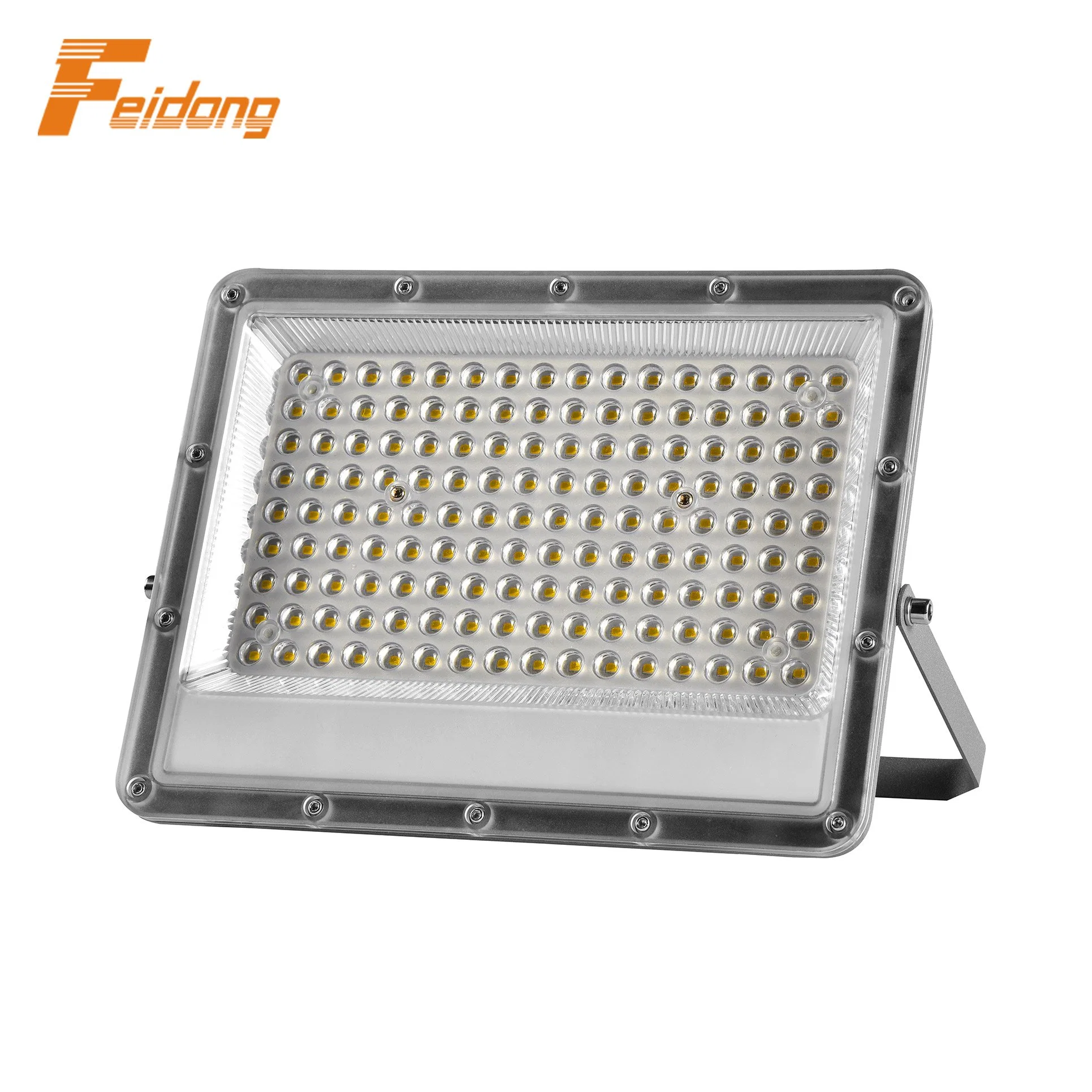

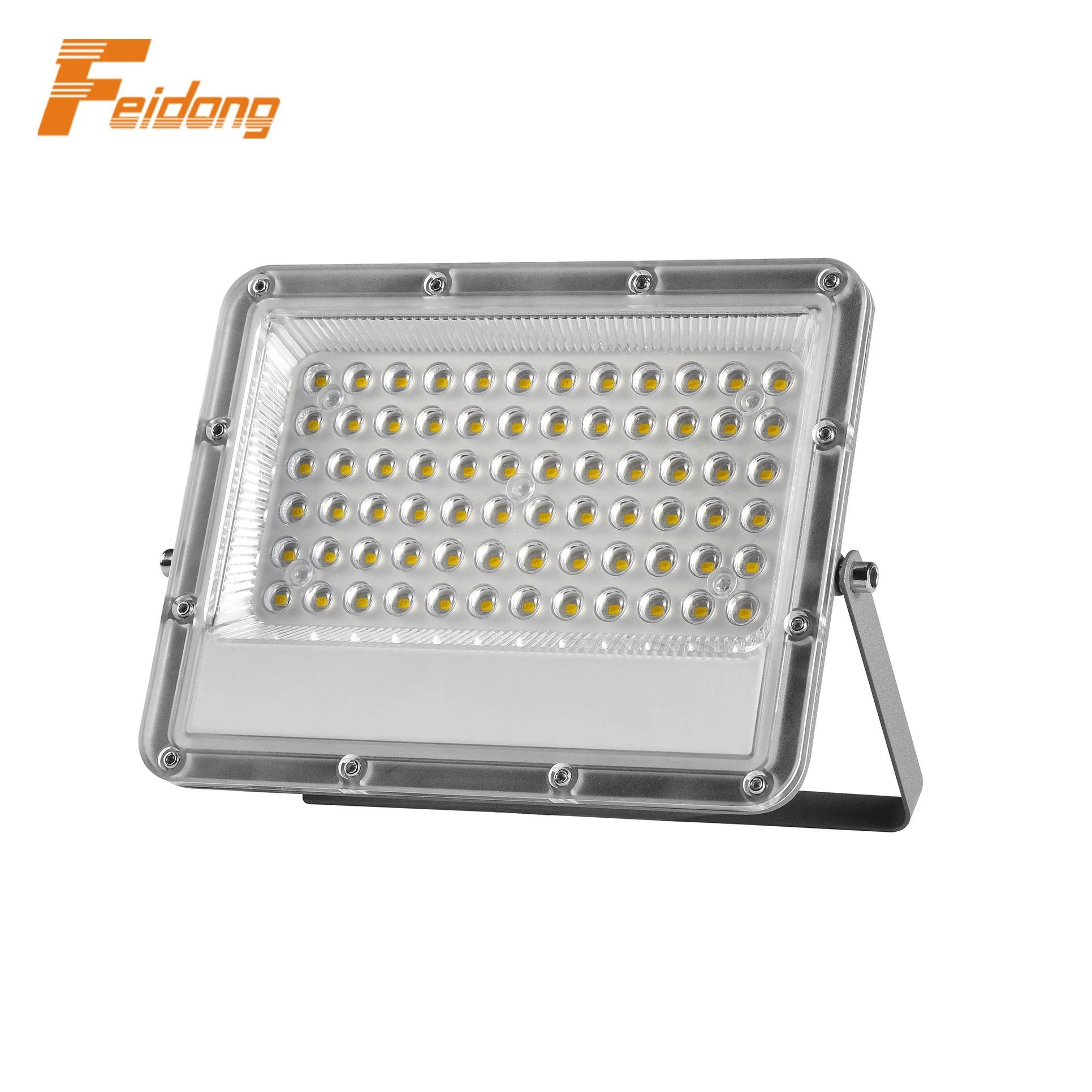

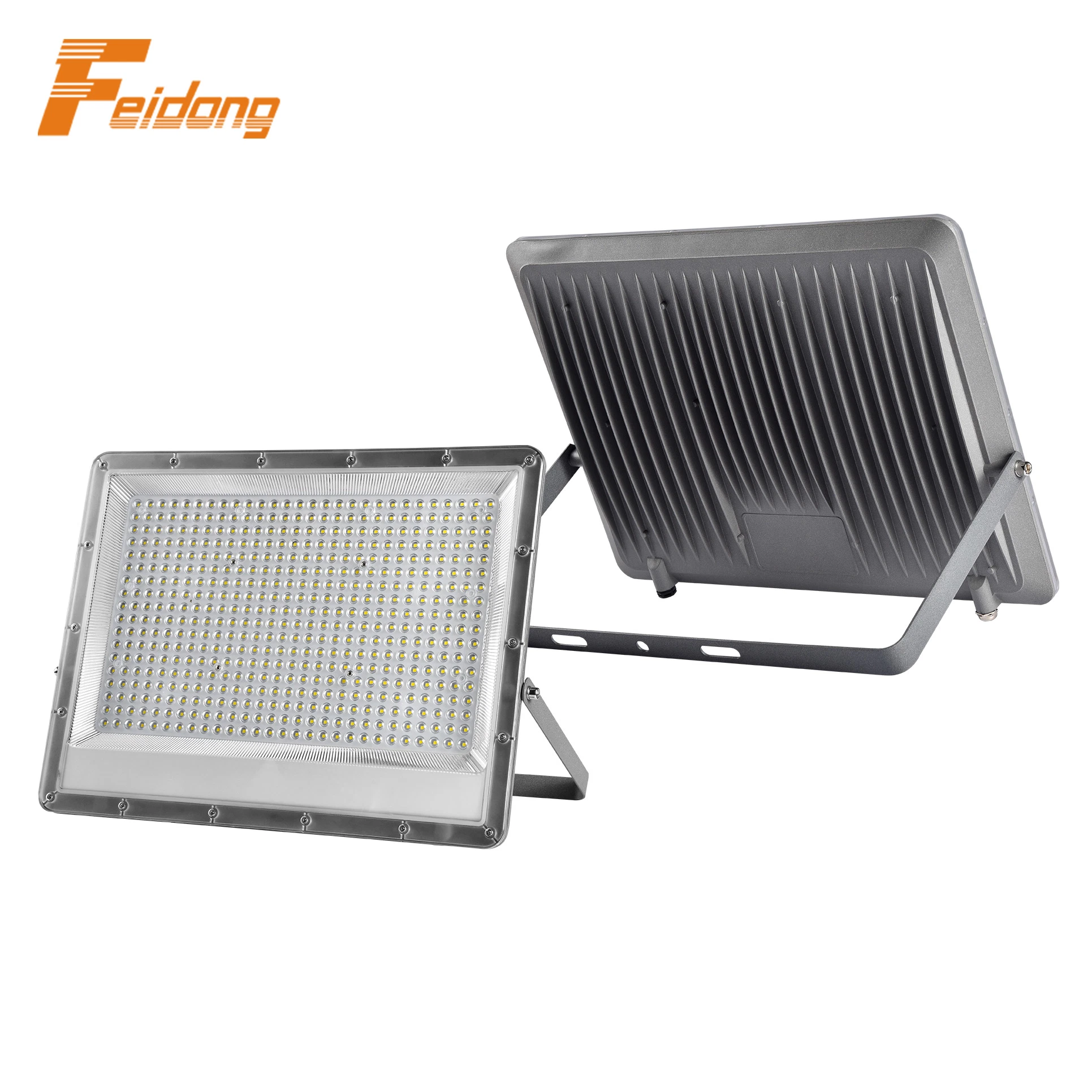

100% Power 10W to 400W Dob AC100-265V Outdoor IP66 LED Lighting LED Floodlight. Ultra Slim design for modern architectural lighting.
📊 Technical Parameters
| MODEL |
POWER |
LED QTY (2835SMD) |
Luminous Flux |
Voltage |
Surge Protection |
Dimensions (mm) |
Weight (kg) |
| TG003-10W | 10W | 12PCS | 80-90LM/W | AC200-240V | 1.5KV | 131*100*26 | 0.16 |
| TG003-20W | 20W | 24PCS | 1.5KV | 147*114*26 | 0.19 |
| TG003-30W | 30W | 36PCS | 1.5KV | 171*138*25 | 0.25 |
| TG003B-50W | 50W | 72PCS | 3.5KV | 205*172*25 | 0.34 |
| TG003-100W | 100W | 144PCS | 3.5KV | 263*219*25 | 0.54 |
| TG003-150W | 150W | 216PCS | 3.5KV | 327*259*25 | 0.84 |
| TG003-200W | 200W | 288PCS | 3.5KV | 376*288*25 | 1.10 |
| TG003-300W | 300W | 360PCS | 3.5KV | 422*318*25 | 1.58 |
| TG003-400W | 400W | 504PCS | 3.5KV | 460*348*24 | 2.03 |

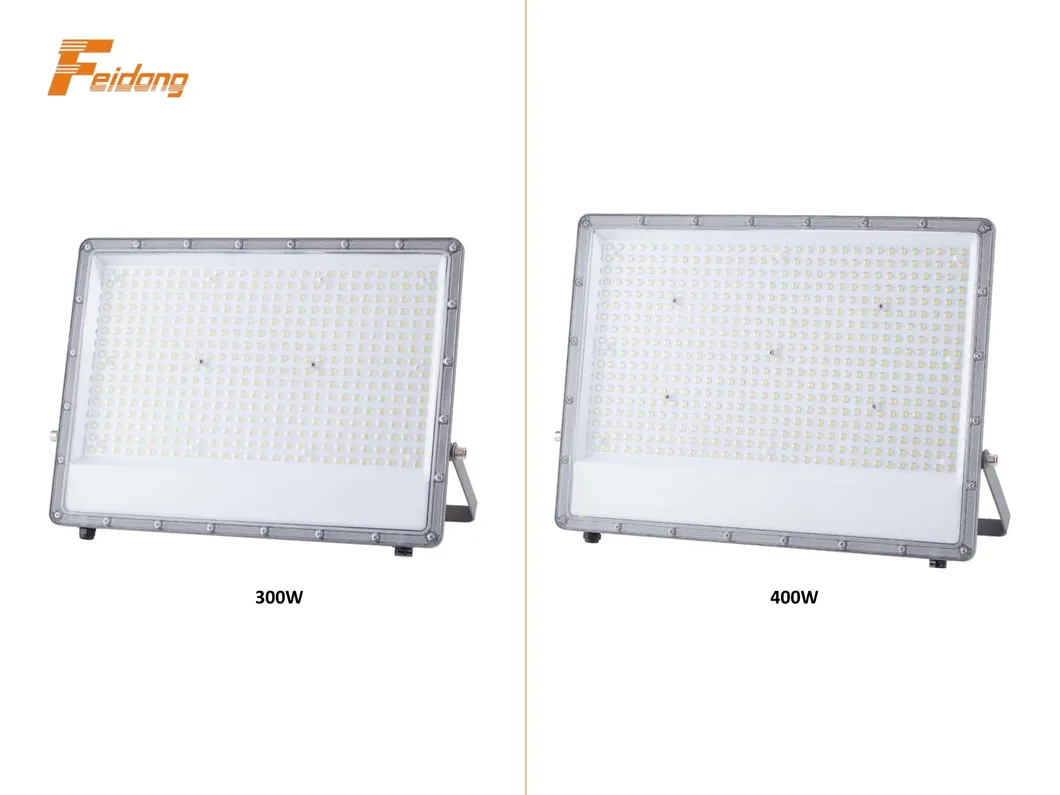

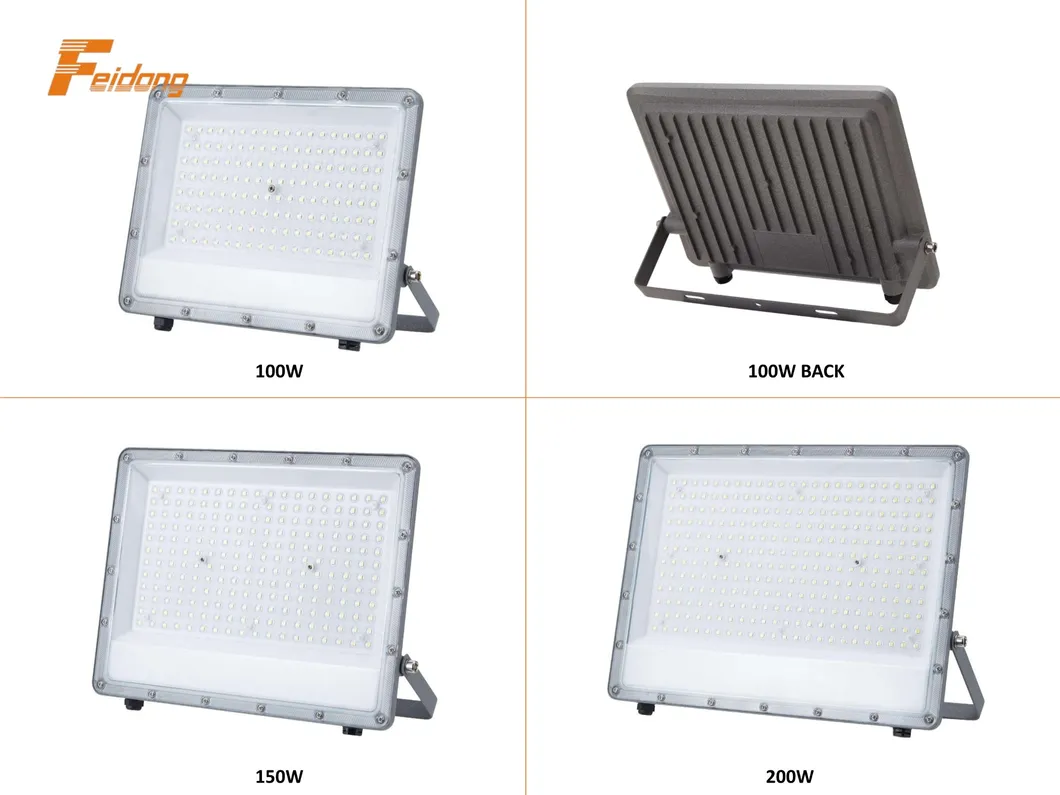

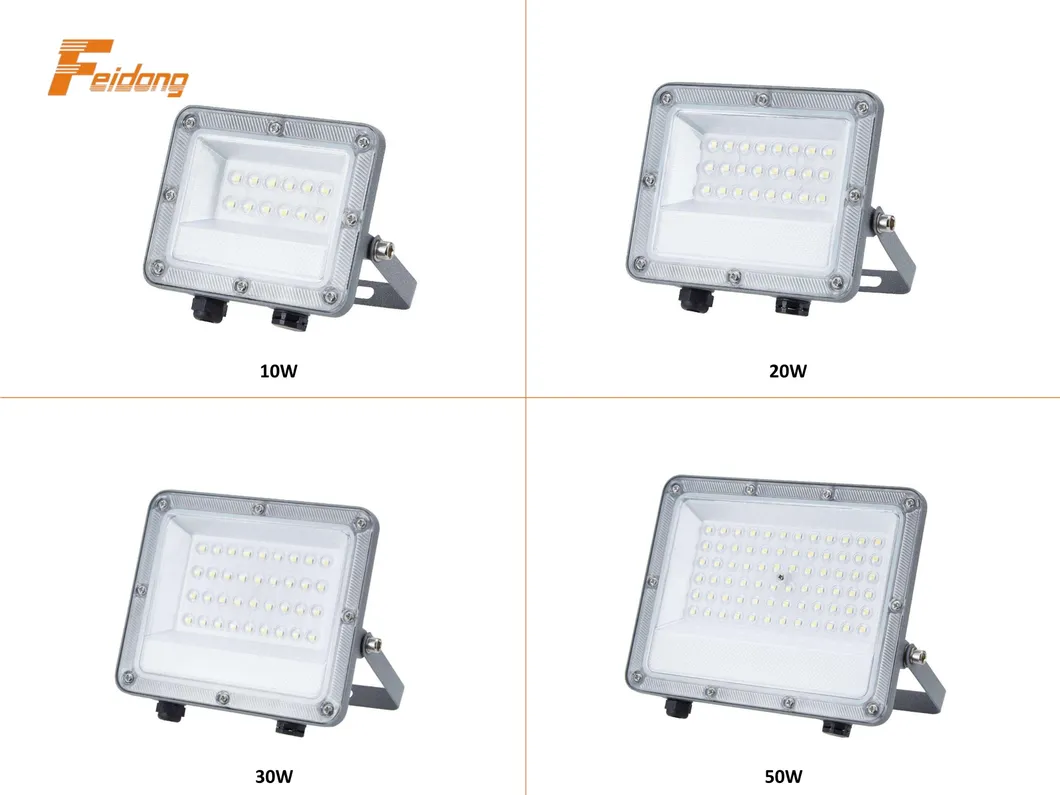

📷 Detailed Product Gallery

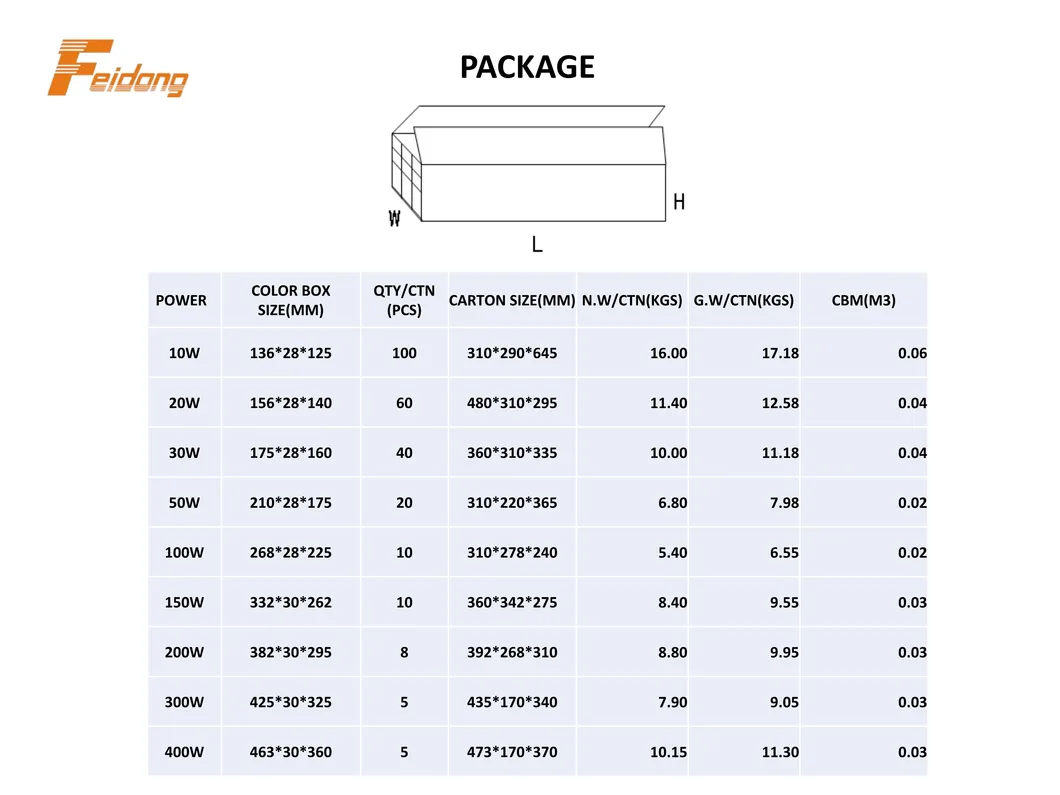

📦 Packaging & Logistics
Package Size51.00cm * 18.00cm * 40.50cm
Gross Weight9.720kg
Inner PackageColor Box and Carton
LED FLOOD LIGHT LED FLOOD LIGHTS OUTDOOR LED FLOODLIGHT LED FLOOD LIGHTING LED LIGHTING LED LAMP LED FLOOD LAMPS iluminación LED iluminação led éclairage LED светодиодное освещение iluminación LED iluminação LED Cahaya led Жарыдиодты жарытандыру LED iluminare LED oświetlenie ledowe luz de LED fluorescente luz de LED projecteur LED Светодиодный прожектор reflector led ip66 led holofote ip66 lampu sorot led ip66 жетекші прожектор IP66 ip66 led ip66 proiector led ip66 światło powodziowe 10W 20W 30W 50W 100W 150W 200W 300W 400W energy saving led light outdoor light garden light yard light solar light CE SASO ROHS EMC.
Frequently Asked Questions
What is the waterproof rating of this flood light?
This flood light has an IP66 rating, which means it is fully protected against dust ingress and can withstand powerful water jets, making it ideal for outdoor use in rain or snow.
What is the estimated lifespan of the LEDs?
The high-quality Sanan LED chips used in our lights have a rated life of over 30,000 hours, ensuring long-term performance with minimal maintenance.
Does the light support different input voltages?
Yes, our LED flood lights are designed with wide-voltage drivers, supporting linear AC100-265V or AC200-240V configurations depending on your regional requirements.
What kind of warranty is provided?
We provide a standard 2-year warranty on all models in the TG003 series, covering any manufacturing defects or performance failures.
Can these lights be used for professional sports courts?

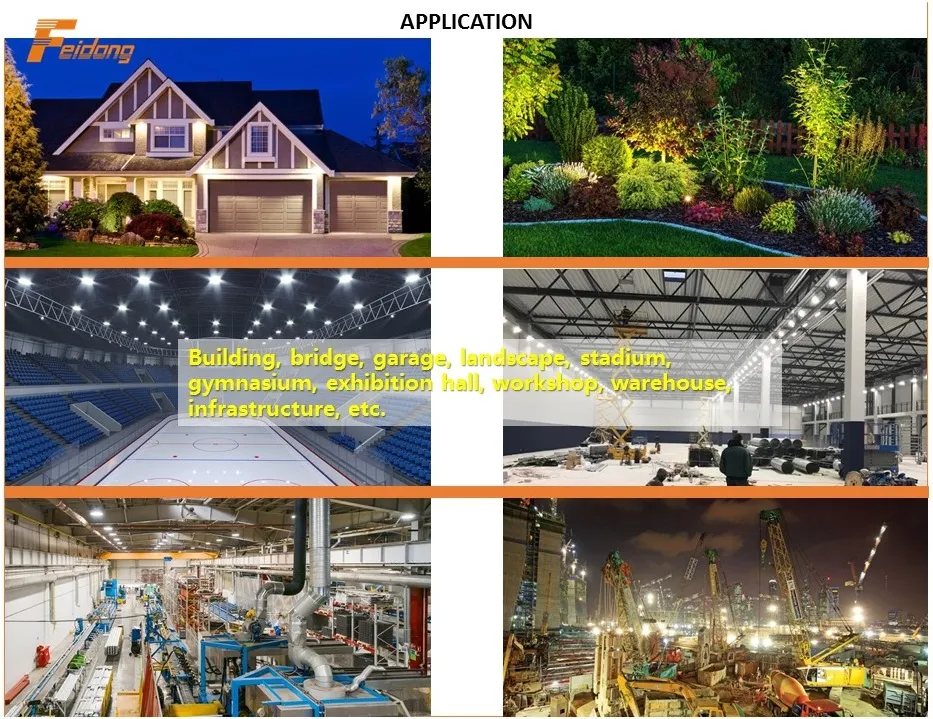

Absolutely. With power options up to 400W and high luminous efficiency (100-110lm/W), they are suitable for football fields, tennis courts, squares, and large industrial areas.

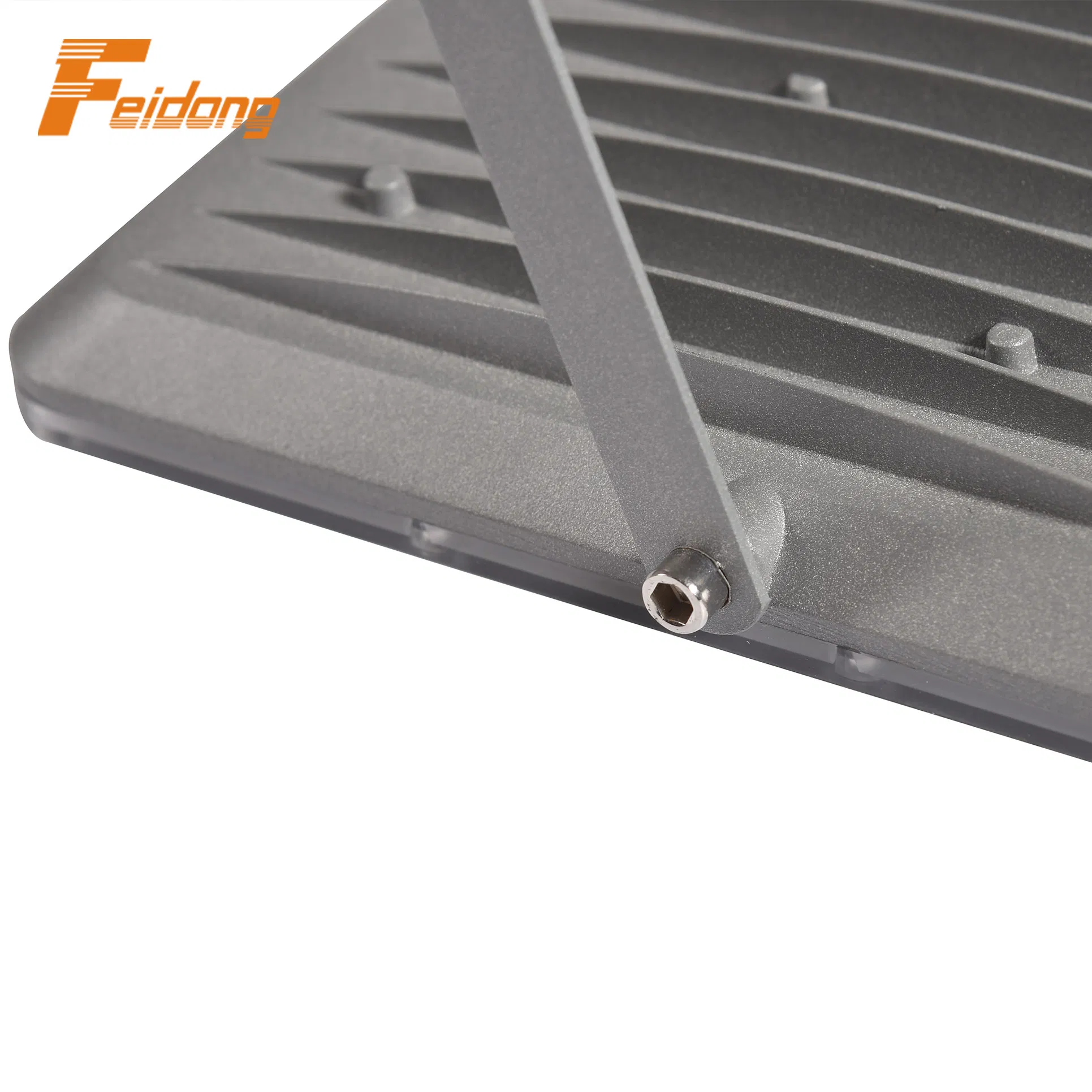

What materials are used for the outer housing?

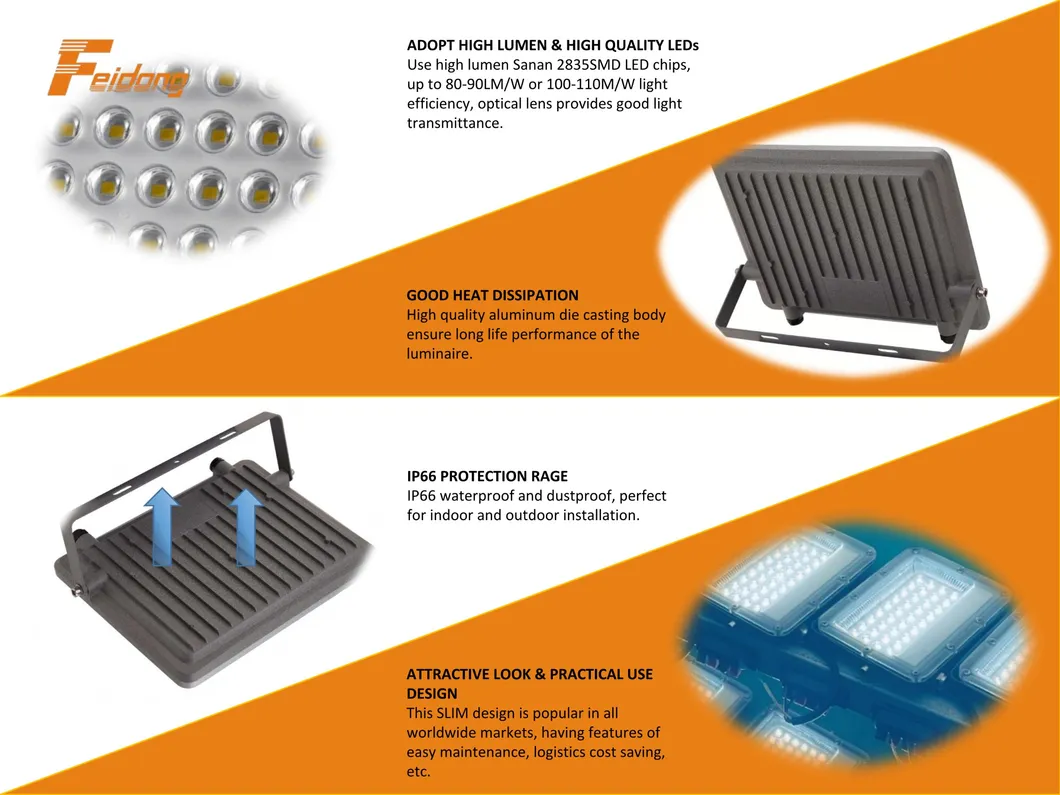

The housing is made from high-grade aluminum alloy, which provides excellent heat dissipation and structural durability, available in grey or black finishes.
