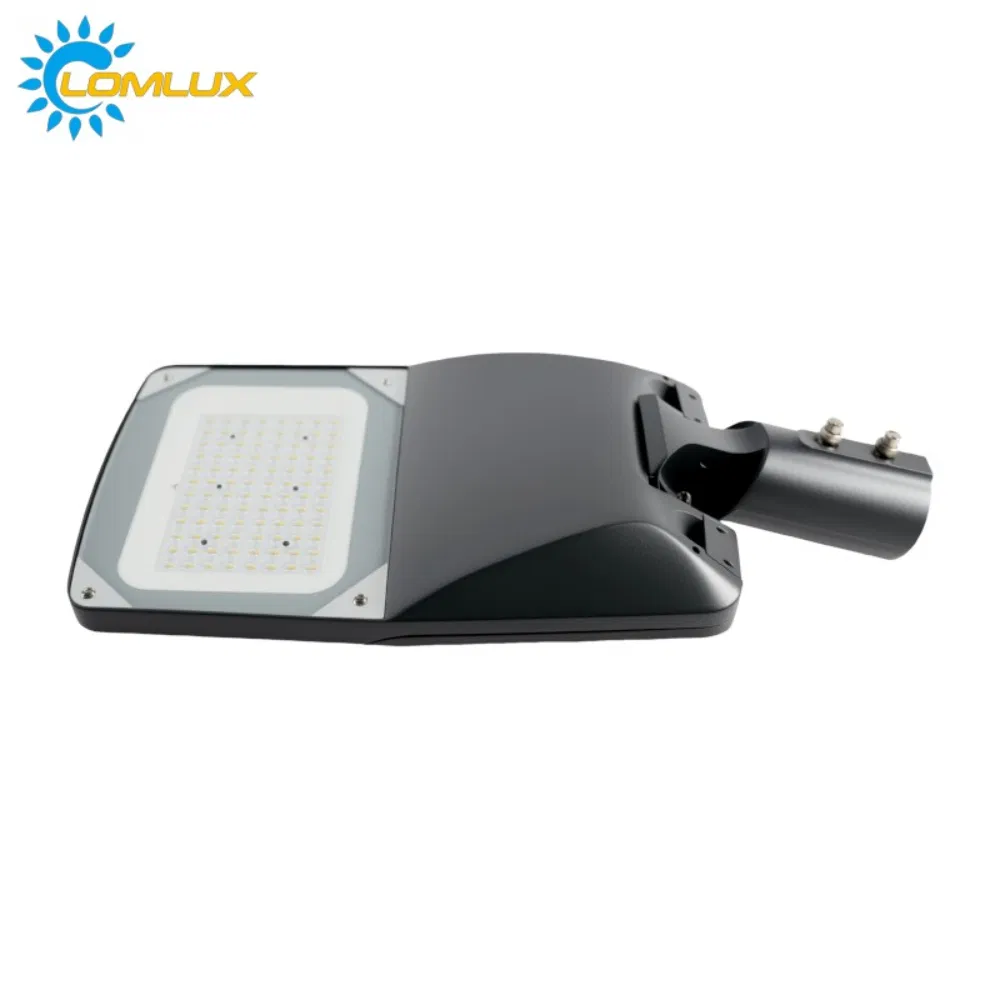

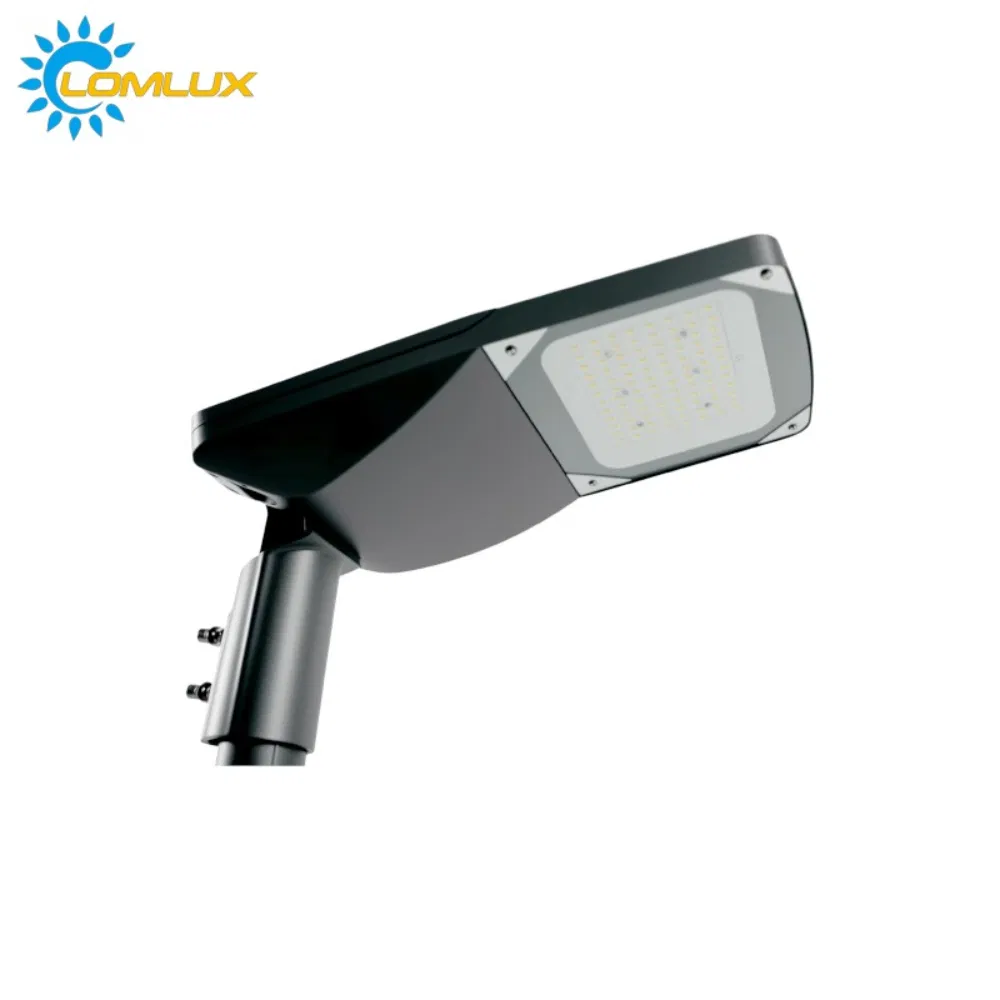

High Lumen Quality Highway Lamp Outdoor Waterproof IP66 LED Street Light

1 / 5

High Lumen Quality Highway Lamp Outdoor Waterproof IP66 LED Street Light

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

💡 Basic Specifications

Model NO.

LM-SL22

Material

Die-Casting Aluminum

Power

30-240W

Application

Square, Highway, Garden, Parking Lot

IP Rating

IP66

Certification

CB, CE, EMC, LVD, RoHS, SAA

LED Brand

Lumileds

Efficiency

150 lm/W

Warranty

5-7 Years

Lifespan

50,000 Hours

🛡️ Product Advantages

The LM-SL22 series offers high-performance LED street lighting designed for durability and efficiency. With its die-cast aluminum body and advanced thermal management, it ensures long-term reliability in harsh environments.

Superior Protection: Built-in 10KV/20KV surge protection device (SPD) as standard.
High Efficiency: Delivers up to 150lm/W, reducing electricity costs by over 50%.
Smart Ready: Supports 3/5/7-pin NEMA for photocell and DALI/1-10V dimming.
Durable Design: Power-coated body (RAL9007) provides ideal protection against corrosion.
Multiple Optics: Wide range of lenses available to suit various road classes (Type I, II, III, IV, V).

📷 Key Features

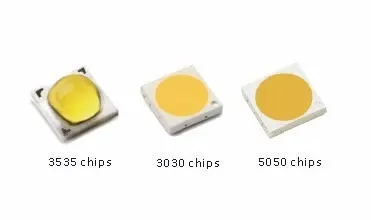

High Efficacy LED Source (up to 175 lm/w)

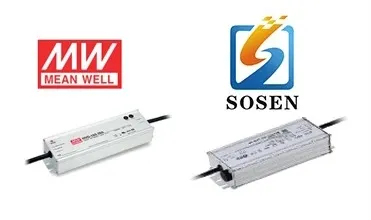

Meanwell/Sosen Programmable Driver

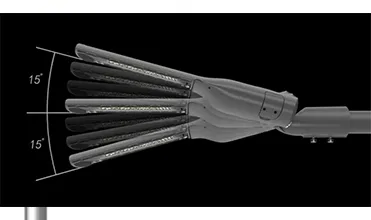

Vertical & Horizontal Mounting (Adjustable 0-15°)

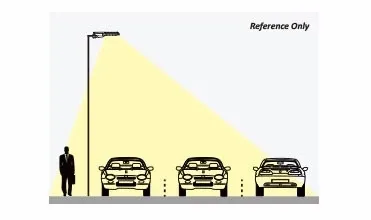

Variety Light Distribution Options

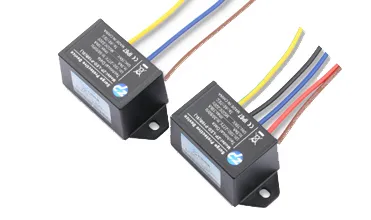

TUV Approved 10KV/20KV Surge Protection

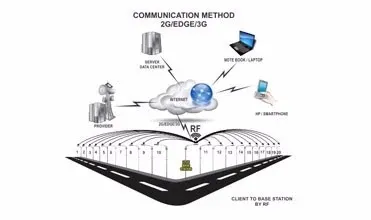

Remote Smart Control System Compatible

📊 Technical Data

Model	Size (mm)	Power Range	Luminous Flux	Holder Size
LM-SL22-MINI	540250100	30-60W	110-150lm/W	48/60/76mm
LM-SL22-S	576296104	80-100W	110-150lm/W	48/60/76mm
LM-SL22-M	636296104	100-150W	110-150lm/W	48/60/76mm
LM-SL22-L	697296104	150-240W	110-150lm/W	48/60/76mm

📦 Related Products

LM-SL18

LM-GSL68

LM-GSL01A

LM-FL59

❓ Frequently Asked Questions

Q1: What is the lifespan of the LM-SL22 LED street light? A: The LM-SL22 is designed for long-term use with a lifespan of over 50,000 hours and comes with a 5-7 year warranty.

Q2: Can the installation angle be adjusted? A: Yes, the luminaire supports both vertical and horizontal mounting with an adjustable installation angle range of 0 to 15 degrees.

Q3: Does this light support smart city systems? A: Absolutely. It features a NEMA socket (3/5/7 Pin) to support Photocell, 1-10V, PWM, or DALI dimming for smart city control.

Q4: What is the waterproof and impact resistance rating? A: The light is rated IP66 for superior dust and water protection, and IK09 for high resistance to mechanical impacts.

Q5: What surge protection is provided? A: All units are equipped with a TUV-approved 10KV surge protection device as standard, with a 20KV option available.

Q6: Are there different lens options for different road types? A: Yes, we provide multiple optical lenses following the North American IESNA standards, including Type I, II, III, IV, and V.
