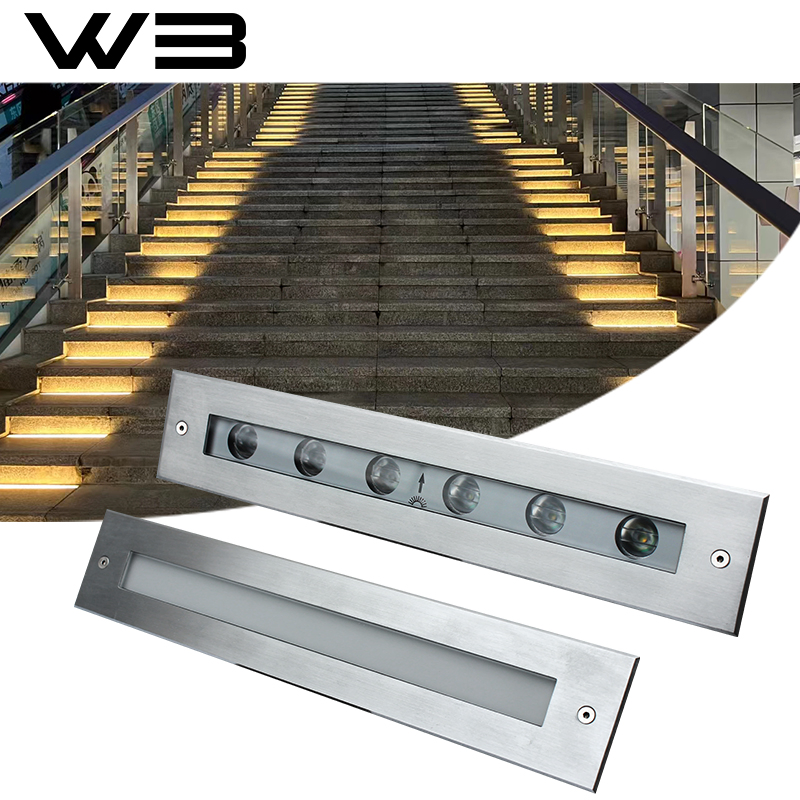

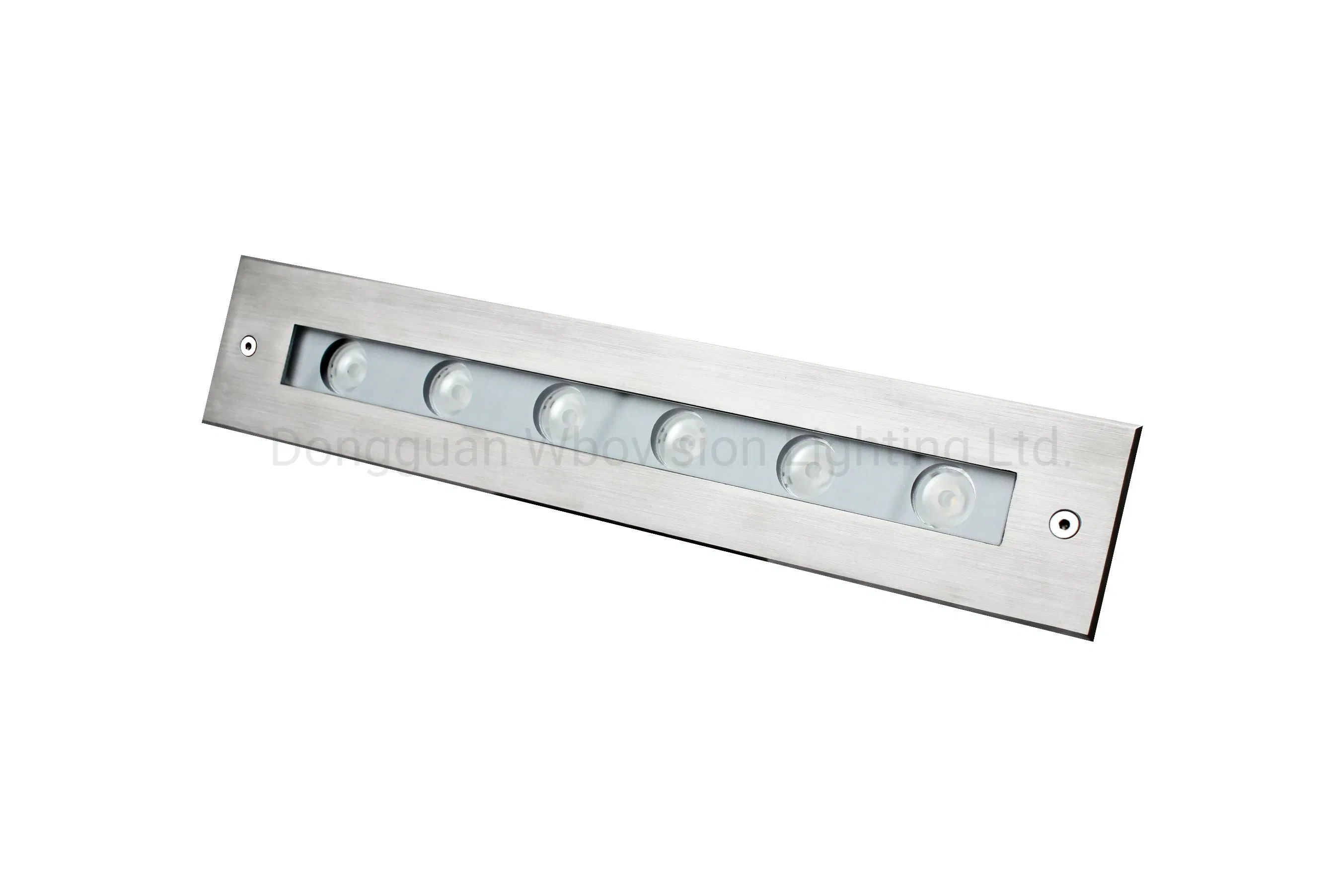

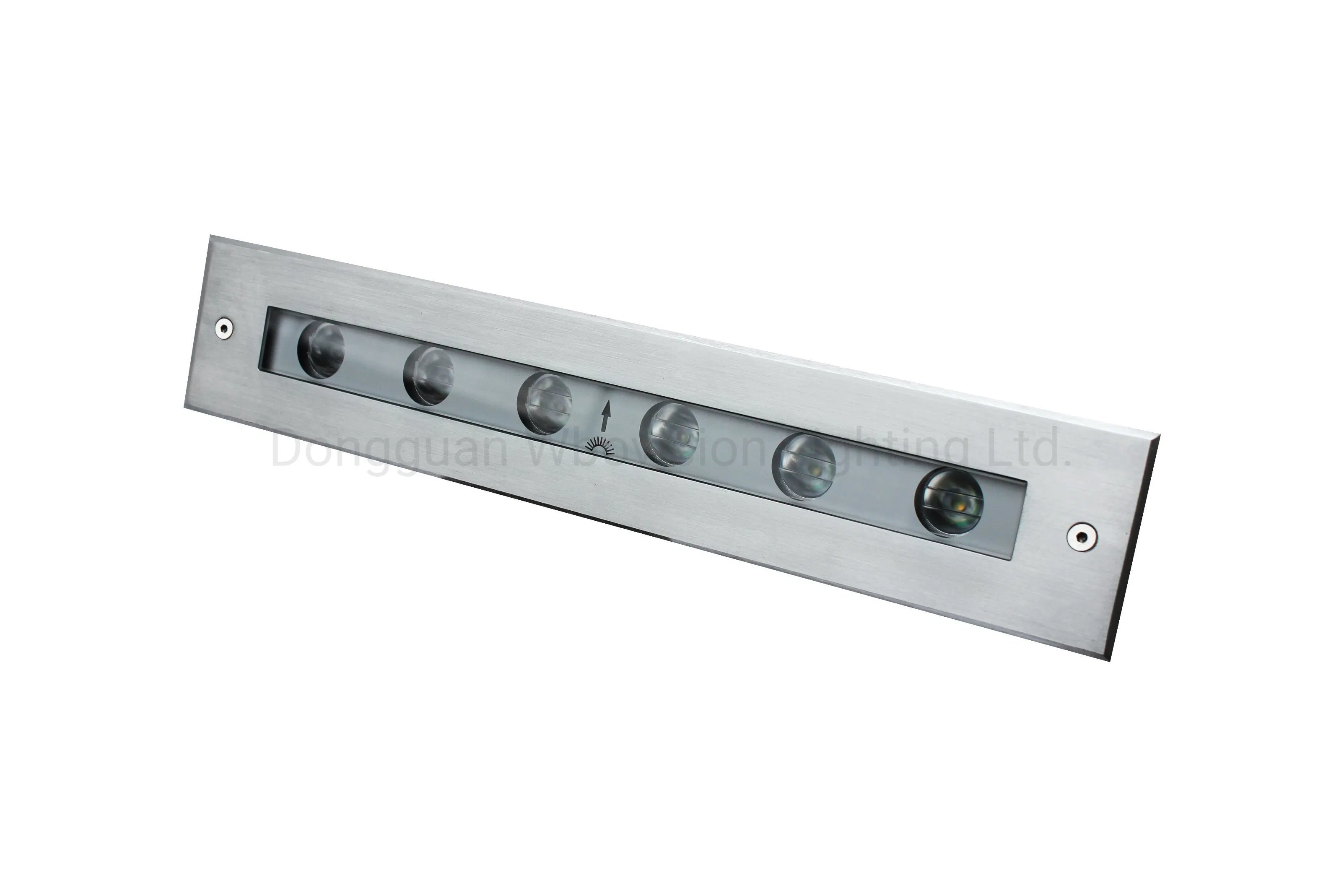

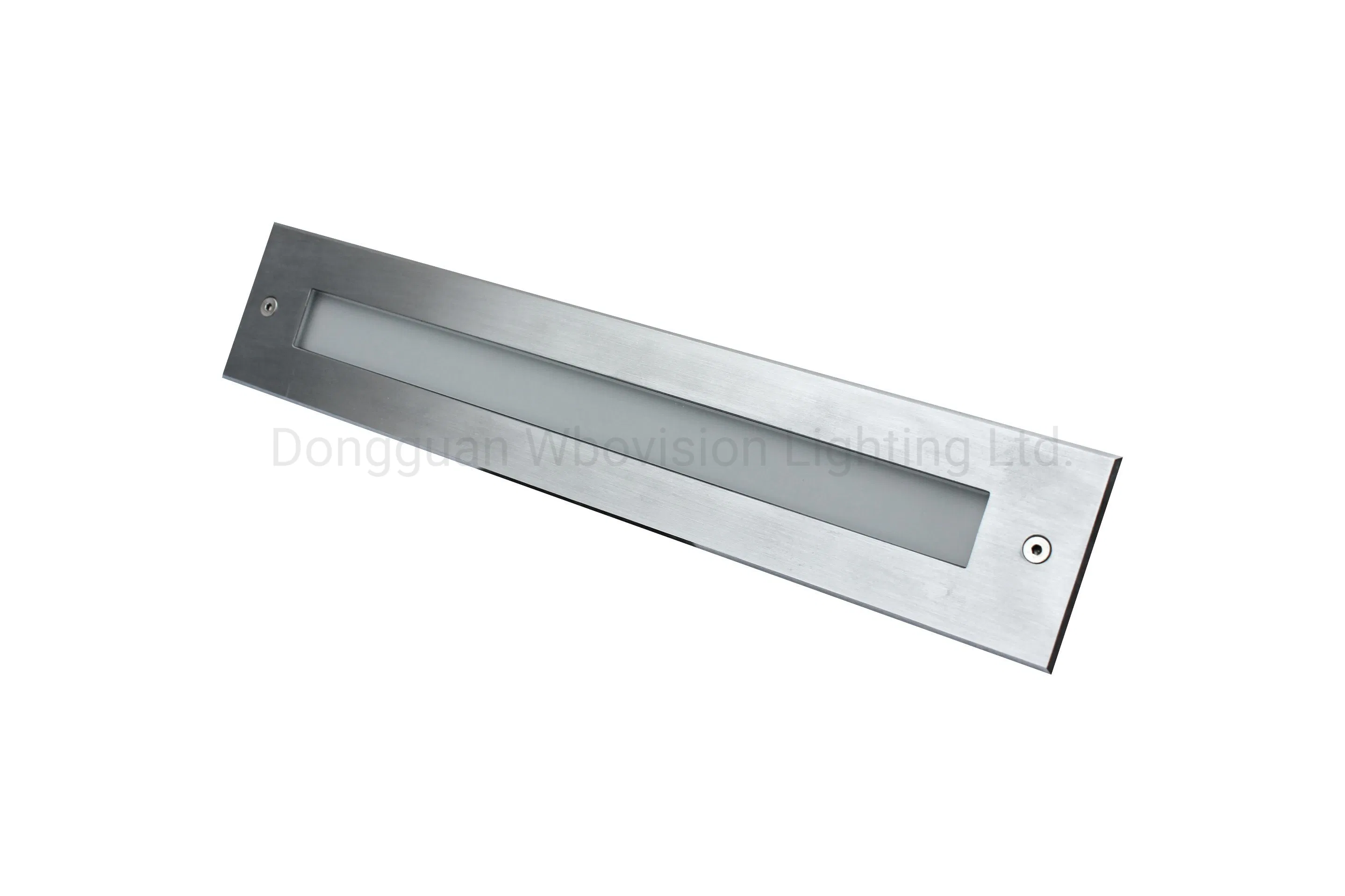

12W CREE LED Recessed Linear Ground Light IP67 Anti-Tripping Outdoor

Still deciding? Get samples of $ !
Order Sample

Product Description

📊 Overview & Basic Info
Model NO.
C12063L2-0.328M
Material
Aluminum+SS316
Power
6W-12W
IP Rating
IP67
Warranty
3 YEARS
Voltage
DC12/24V AC220-240V
Certification
CE, RoHS, ERP
Life Time
≥50,000hrs
📦 Packaging & Delivery
Package Size
30.00cm * 40.00cm * 50.00cm
Gross Weight
15.000kg
💡 Product Description

1. Self-developed with independent intellectual property rights. LEDs are hidden deep in the bottom for excellent anti-glare performance.

2. Integrated heat radiation structure design provides sufficient heat dissipation, ensuring a long lifetime for the LED.

3. 316L stainless steel surface cover with titanize treatment and high-strength die-casting aluminum housing with Tiger powder coating. Suitable for high acid/base environments like seaside locations.

4. Ultra-clear 8mm tempered glass cover ensures high luminous efficacy (90-95%) and excellent impact resistance.

5. CREE brand LED light source with ultra-high lumen output and high CRI (Ra>80 or Ra>90).

6. Top-quality driver and circuit design ensure stable quality and low failure rate.

7. Optional DMX512, 0/1-10V, DALI, TRIAC, PWM dimming functions.

⚙️ Technical Parameters
Item No.C12063L2-0.328M
Power3W/12W
SizeL328*65mm
LED ChipCREE/OSROM/CITIZEN
MaterialAluminum
Protection LevelIP65 / IP67
Beam Angle10/25/45/60/45*35°
CCT2700K-6500K

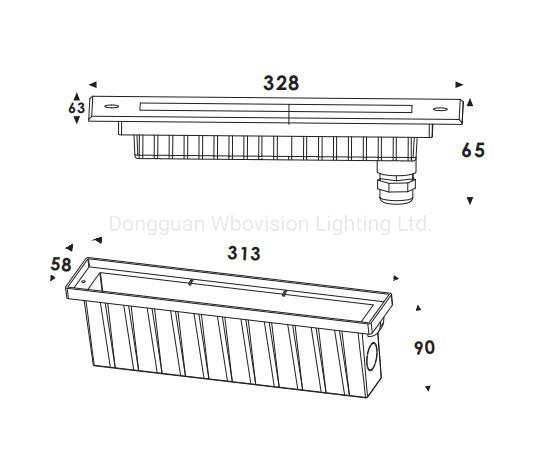

Technical Drawing
Frequently Asked Questions
Are you a factory or trading company?
We are a 10+ years factory focusing on outdoor landscape lighting.
What are your main products?
We offer a full range of outdoor lights including spike lights, inground lights, wall washers, and recessed linear lights.
Is OEM or ODM available?
Yes, we provide full OEM & ODM services including customized branding and LOGO printing.
What is the typical lead time?
Samples take 3-7 days, while mass production takes 15-35 days depending on the quantity.
Can we order samples?
Yes, sample orders are welcome for quality evaluation. Mixed samples are also available.
Why should we choose your products?
We are a 10+ year manufacturer with a professional R&D team, offering flexible service and high-quality products at reasonable prices.
